- - 37.X - Y COMPONENTS(1) 7 6 8 4 C B 6 6 6 4 6 5 6 9 7 0 5 3 5 4 1 6 5 3 1 7 5 4 5 3 5 2 4 8 4 7 3 6 3 7 3 4 3 3 8 2 3 1 3 2 3 0 2 9 2 5 2 5 2 6 2 6 2 4 2 4 2 1 2 2 2 3 8 1 2 0 6 1 5 8 5 9 5 7 6 0 5 5 5 6 6 3 8 5 8 5…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 BT-0600400-EC TUBE HOSE, BLUE 12
2 BT-0800501-EA TUBE HOSE, BLUE 2.5
3 PJ-0252000-03 PLUG 1
4 WP-0841601-SC WASHER 8.4X17.4X1.6 2
5 PJ-3050600-04 TEE 2
6 400-54839 SOFT NYLON 8 20
7 400-94700 AIR COMBINATION ASSY 1
8 400-63483 AIR COMBINATION (1)
9 BT-1000651-EB POLYURETHANE TUBE (1.7)
10 PJ-3081000-01 UNION Y (1)
11 SL-6061692-TN BOLT (4)
12 WP-0841601-SC WASHER 8.4X17.4X1.6 (4)
13 BT-1200801-EF TUBE (0.45)
14 PJ-3080600-03 Y UNION (1)
15 BT-1200801-EF TUBE (1)
16 401-14030 STEP DRV BASE 1
17 HX-0042000-00 5 PHASE STEP DRIVER 1
18
#01
HX-0054500-00 5 PHASE STEP DRIVER 1
19 SL-4040891-SC SCREW M4X8 3
20 400-00534 BACK UP DRIV PLATE 1
21 HX-0029400-00 FIXED BASE 3
22 SL-4030691-SC SCREW M3 L=6 3
23 E1038-871-000 PLATEN LOCK CAM SCREW 1
24 PJ-3010600-03 REDUCER 6
25 PJ-3040600-01 REDUCER ELBOW 4
26 PX-9500070-00 PLUG 2
27 PJ-3080600-03 Y UNION 2
28 BT-0600400-EC TUBE HOSE, BLUE 8
29 PJ-3080600-03 Y UNION (1)
30 PJ-3091200-03 MANIFOLD 1
31 SL-6042092-TN SCREW M4 L=20 2
32 PJ-3030600-01 STRAIGHT UNION (4)
33 PJ-0200000-03 PLUG ROUND 12 1
34
#02
HX-0042000-00 5 PHASE STEP DRIVER 1
35
#03
HX-0054500-00 5 PHASE STEP DRIVER 1
36
#02
SL-4040891-SC SCREW M4X8 3
37
#02
400-00534 BACK UP DRIV PLATE 1
38
#02
HX-0029400-00 FIXED BASE 1
39
#02
SL-4030691-SC SCREW M3 L=6 1
40
#02
E1038-871-000 PLATEN LOCK CAM SCREW 1
41 401-14029 STEP DRV COVER 1
42 PF-0200040-00 REGULATOR 1
43 SL-6030692-TN SCREW M3 L=6 6
44 SL-6040892-TN SCREW M4 L=8 3
45 SM-4033001-SC SCREW M3X0.5 L=30 2
- -

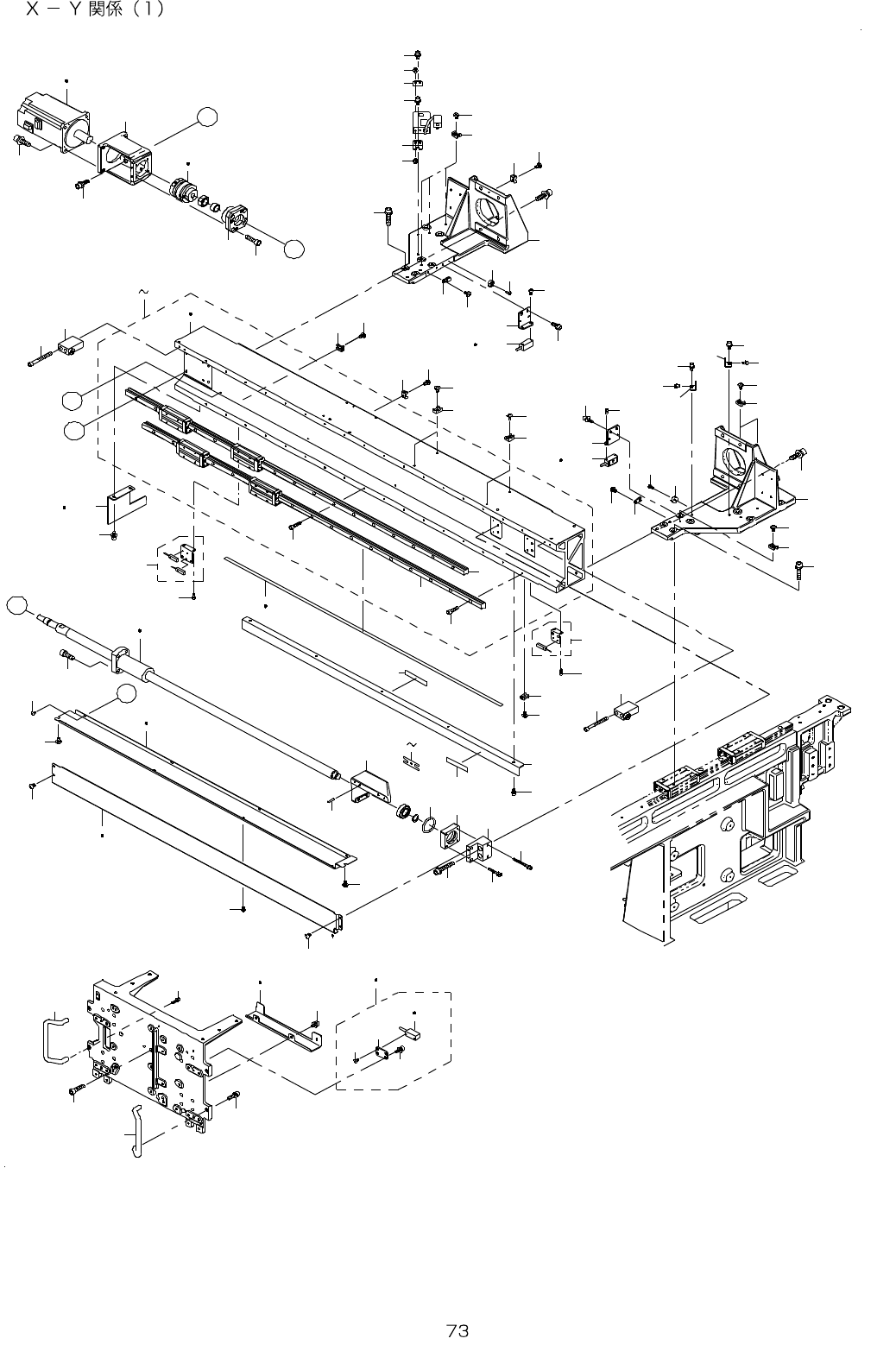

37.X-Y COMPONENTS(1)
7 6
8 4
C
B
6 6
6 4
6 5
6 9 7 0
5 3
5 4
1 6
5 3
1 7
5 4
5 3
5 2
4 8
4 7
3 6 3 7
3 4
3 3
8 2
3 1 3 2
3 0
2 9
2 5
2 5
2 6
2 6
2 4
2 4
2 1
2 2 2 3
8 1
2 0
6 1
5 8 5 9
5 7
6 0
5 5 5 6
6 3
8 5
8 5
8 4
7 2 7 5
7 1
1 0
1 8 1 9
8 0
6 7
6 8
6 8
6 7
B
C
6 6
6 4
6 5
6 4
6 5
6 4
6 5
6 4
6 5
6 2
2 4
5 3
5 4
1 5
5 4
5 3
5 3
5 2
4 8
4 7
5 0
4 9
4 9
5 0
A
7
A
4 9
4 9
4 5 4 6
4 0 4 1
3 5
4 4
4 3
3 9
3 8
8 3
2 7 2 8
2 5
2 5
2 6
2 6
2 4
8 1
2 0
2 2 2 3
2 1
1 3
1 4
5 1
1 2
5 1
1 1
9
7 9
7 7 7 8
1 4
5 6
7
8
8
6 4
6 5
4 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
