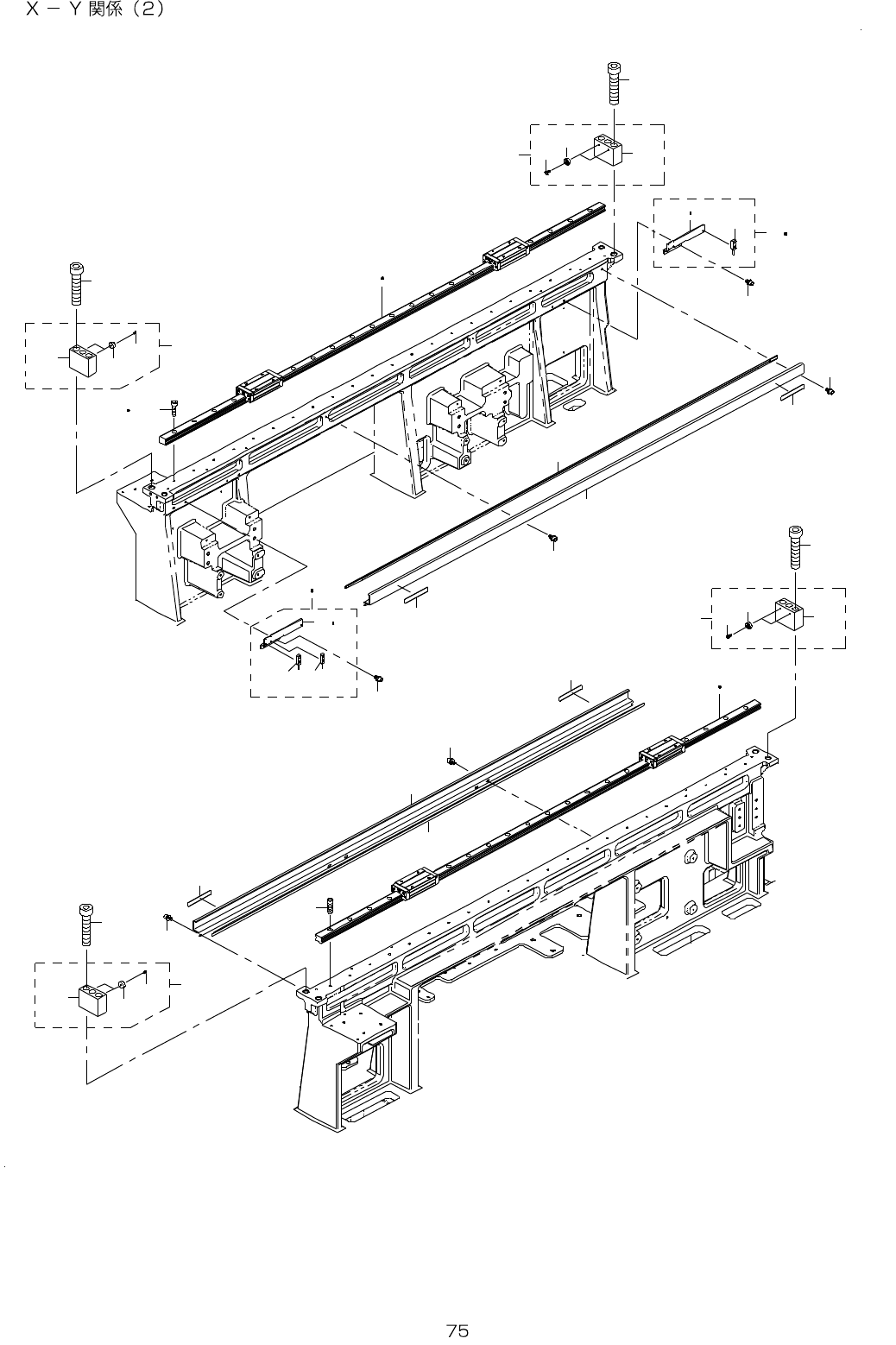

- - 38.X - Y COMPONENTS(2) 1 4 1 4 1 4 1 4 2 6 1 6 1 7 1 5 8 9 1 7 1 6 1 5 2 6 2 5 2 5 2 5 2 5 1 8 1 8 1 8 1 8 2 4 2 4 1 6 1 5 1 7 2 6 1 7 1 6 1 5 2 3 2 3 1 9 2 0 1 9 2 0 2 1 2 1 2 2 1 3 1 2 1 0 1 1 1 2 7 4 3 5 6 2 6
- -

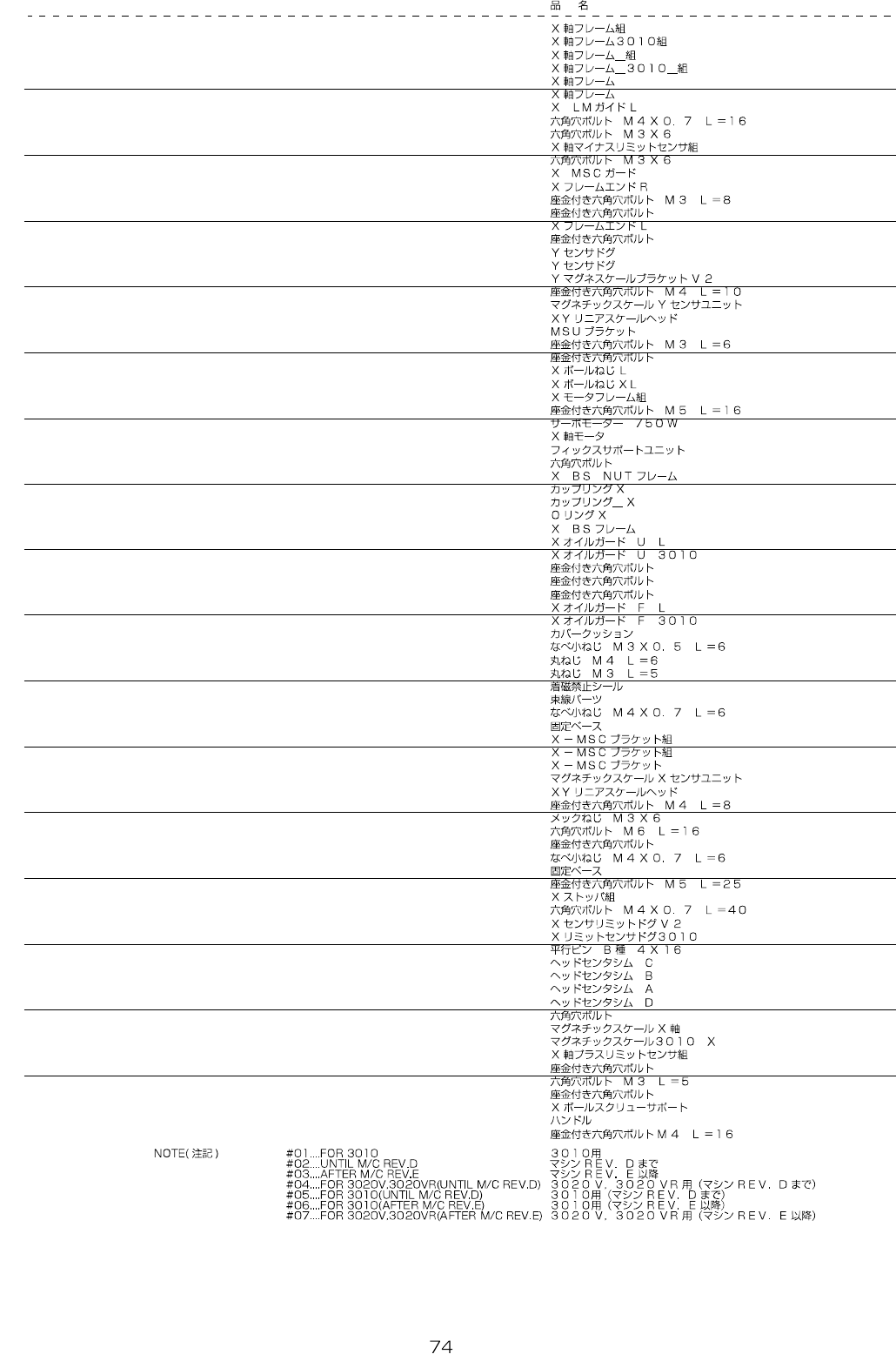

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#04
401-13984 X AXIS FRAME ASM 1
2 #05 401-13992 X AXIS FRAME 3010 ASM 1
3
#07
401-35700 X_AXIS_FRAME_ASM 1
4
#06
401-35701 X_AXIS_FRAME_3010_ASM 1
5
#02
401-06046 X AXIS FRAME (1)
6
#03
401-34565 X_AXIS_FRAME (1)
7 400-71325 X LM GUIDE L (2)
8 SM-6041602-TN SCREW M4 X 16 (34)
9 SM-6030602-TN SCREW M3X6 2
10 401-13712 X MINUS LMT SENSOR ASSY 1
11 SM-6030602-TN SCREW M3X6 2
12 400-54881 X MSC GUARD 1
13 401-06022 X FRAME END R 1
14 SL-6030892-TN SCREW M3 L=8 5
15 SL-6062092-TN SCREW M6 L=20 4
16 401-06020 X FRAME END L 1
17 SL-6062092-TN SCREW M6 L=20 4
18
#02
401-10215 Y SENSOR DOG 1
19
#03
401-34597 Y_SENSOR_DOG 1
20 401-10216 Y MSC BR V2 2
21 SL-6041092-TN SCREW M4 L=10 4
22 #02 400-44532 MAGNETIC SCALE Y SENOR UNIT 2
23
#03
401-29630 XY LINEAR SCALE HEAD 2
24
#02
400-47390 MSU BRACKET 4
25
#02
SL-6030692-TN SCREW M3 L=6 8
26
#02
SL-6040892-TN BOLT 4
27 400-71327 X BALL SCREW L 1
28
#01
400-98047 X BALL SCREW XL 1
29 401-13985 X MOTOR FRAME ASM 1
30 SL-6051692-TN SCREW M5 L=16 4
31
#02
400-68914 SERVO MOTOR 750W 1
32 #03 401-29653 X AXIS MOTOR 1
33 400-93855 FIXED SUPPORT UNIT 1
34 SM-6052002-TN BOLT 4
35 401-08800 X BS NUT FRAME 1
36
#02
400-93862 COUPRING X 1
37
#03
401-47719 COUPLING_X 1
38 400-93864 O RING X 1
39 401-10217 X BS FRAME 1
40 401-10220 X OIL GUARD U L 1
41
#01
401-08820 X OIL GUARD U 3010 1
42 SL-6053092-TN SCREW 2
43 SL-6042592-TN SCREW 2
44 SL-6044092-TN SCREW 2
45 401-10221 X OIL GUARD F L 1
46
#01
401-08819 X OIL GUARD F 3010 1
47 400-49671 COVER CUSHION 2
48 SM-4030601-SC SCREW M3X0.5 L=6 2
49 SM-3040652-TN SCREW M4 L=6 6
50 SM-3030552-TN SCREW M3 L=5 8
51 401-05882 KEEP MAGNET AWAY LABEL 2
52 HX-0034400-00 HARNESS PARTS 2
53 SM-4040601-SC SCREW M4X0.7 L=6 9
54 HX-0029400-00 FIXED BASE 7
55
#02
400-50240 X-MSC BRACKET ASSY 1
56
#03
401-35702 X-MSC BRACKET ASSY 1
57 400-46002 X-MSC BRACKET (1)
58 #02 400-44531 MAGNETIC SCALE X SENSOR UNIT (1)
59
#03
401-29630 XY LINEAR SCALE HEAD (1)
60 SL-6040892-TN SCREW M4 L=8 (2)
61 400-52050 SCREW M3X6 MEC (2)
62 SM-6061602-TN SCREW M6 L=16 4
63 SL-6040892-TN BOLT 2
64 SM-4040601-SC SCREW M4X0.7 L=6 14
65 HX-0029400-00 FIXED BASE 14
66 SL-6052592-TN SCREW M5 L=25 16
67 401-13986 X STOPPER ASM 2
68 SM-6044002-TN SCREW M4X0.7 L=40 4
69 401-11676 X LMT SENSOR DOG V2 1
70
#01
401-08824 X LMT SENSOR DOG 3010 1
71 PH-0400162-C0 PARALLEL PIN TYPE B 4X16 2
72 E3021-721-000 HAED CENTER SHIM C 2
73 E3020-721-000 HAED CENTER SHIM B 2
74 E3019-721-000 HAED CENTER SHIM A 2
75 E3047-729-000 HEAD CENTER SHIM D 2
76 SM-6052002-TN SCREW 2
77 400-44528 MAGNETIC SCALE X 1
78
#01
401-13692 MAGNETIC SCALE 3010 X 1
79 401-13711 X PLUS LMT SENSOR ASSY 1
80 SL-6040892-TN BOLT 2
81 SM-6030502-TN SCREW M3 L=5 4
82 SL-6062042-TN BOLT 4
83 400-93863 X BALL SCREW SUPPORT 1
84 400-71571 HANDLE 2
85 SL-6041692-TN SCREW M4 L=16 4
- -
38.X-Y COMPONENTS(2)
1 4
1 4
1 4
1 4
2 6
1 6
1 7
1 5
8 9
1 7
1 6
1 5
2 6
2 5
2 5
2 5
2 5
1 8
1 8
1 8
1 8
2 4
2 4
1 6
1 5
1 7
2 6
1 7
1 6
1 5
2 3
2 3
1 9 2 0
1 9 2 0
2 1
2 1 2 2
1 3
1 2
1 0 1 1
1 2
7
4
3
5 6
2 6
- -

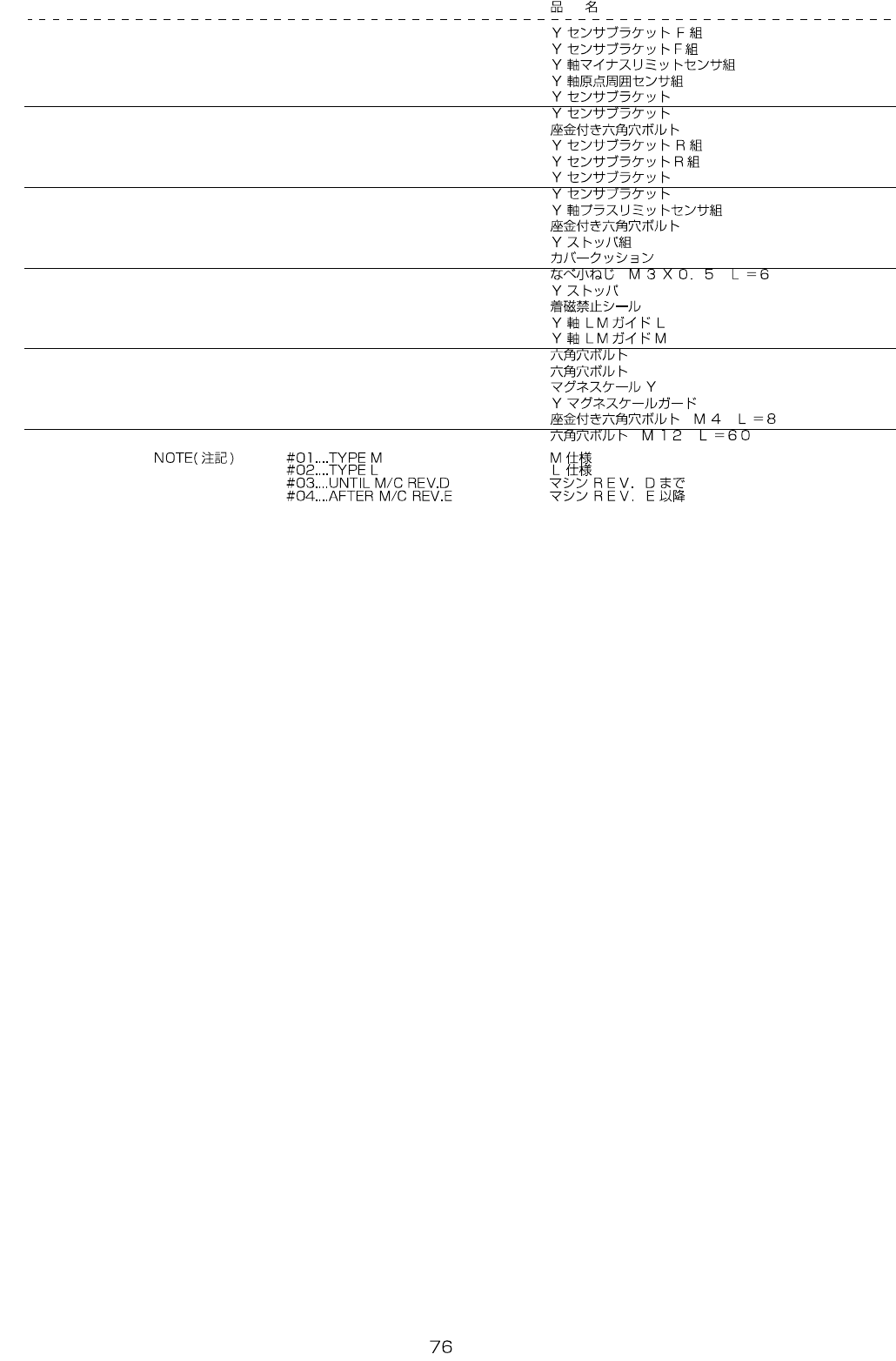

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#03
401-13987 Y SENSOR BR F ASM 1
2
#04
401-35770 Y_SENSOR_BR_F_ASM 1
3 401-09957 Y- LMT SENSOR ASM (1)
4 401-09958 Y NEAR SENSOR ASM (1)
5
#03
401-10223 Y SENSOR BR (1)
6
#04
401-34598 Y_SENSOR_BR (1)
7 SL-6040892-TN BOLT 2
8
#03
401-13988 Y SENSOR BR R ASM 1
9
#04
401-35771 Y_SENSOR_BR_R_ASM 1
10
#03
401-10223 Y SENSOR BR (1)
11
#04
401-34598 Y_SENSOR_BR (1)
12 401-09959 Y++ LMT SENSOR ASM (1)
13 SL-6040892-TN BOLT 2
14 401-13989 Y STOPPER ASM 4
15 400-49671 COVER CUSHION (2)
16 SM-4030601-SC SCREW M3X0.5 L=6 (2)
17 400-00708 Y STOPPER (1)
18 401-05882 KEEP MAGNET AWAY LABEL 4
19
#02
401-06039 Y LM GUIDE L 2
20
#01
401-06038 Y LM GUIDE M 2
21
#01
SM-6051602-TN SCREW 44
22
#02
SM-6051602-TN BOLT 48
23 400-91396 MAGNETIC SCALE Y 2
24 401-10214 Y MSC GUARD 2
25 SL-6040892-TN SCREW M4 L=8 8
26 SM-6126002-TN SCREW M12 L=60 8
