P-192-001e.pdf - 第117页
Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 115 MODEL TIM-5200F/R 0307-001 TT-2 101 630 001 1418 BEARING,RADIAL 8 F608ZZ 805TT-010-101 102 630 009 5869 MOTOR,STEPPING 2 MPM250,MPM251,#103-8572-7041 805TT-010-102 10…
114
MODEL TIM-5200F/R
0307-001

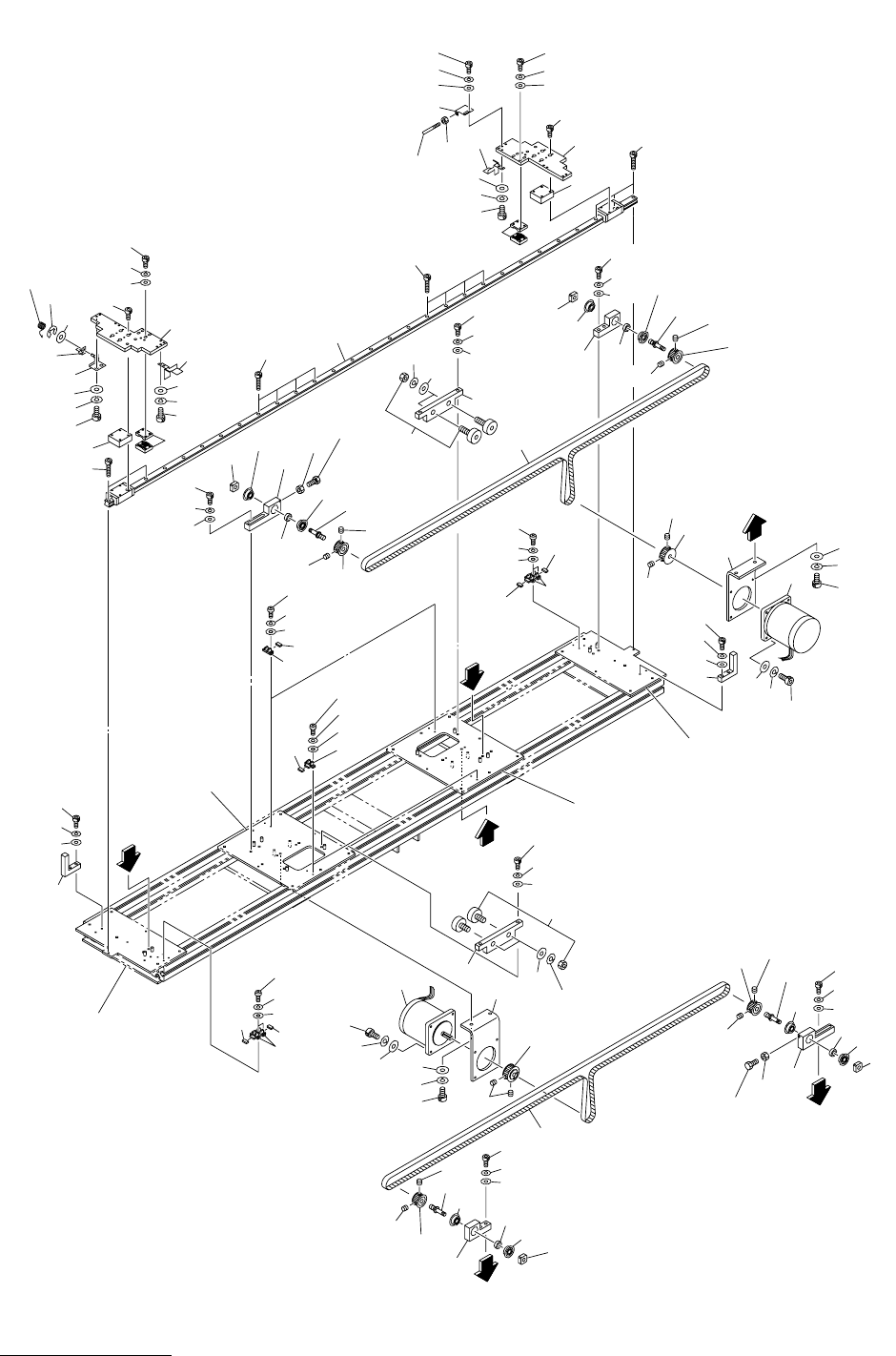

トラバ－ス部 TRAVERSE SECTION
Fig. TT-2 テ－ブル駆動部 Table Driving Section
194
See Fig.TT-1
Key No.7
171
175
127
129
171
173
109
116
176
130
131
171
118
172
173
174
110
110
172
172
174
171
129
172
173
174
172
171
175
127
174
171
180
132
133
172
173
106
C
192
192
101
122
104
138
141
108
101
108
101
121
138
101
122
104
192
105
B
168
167
166
125
161
191
103
191
117
162
163
102
166
167
168
125
166
168
167
A
C
168
166
161
117
162
163
102
191
103
105
167
163
162
161
138
101
122
101
108
104
121
192
192
B
163
162
161
138
101
122
101
108
104
192
192
141
193
194
A
192
120
157
156
107
163
162
161
113
113
112
188
187
186
188
187
186
112
113
113
188
187
186
112
113
163
161
162
157
163
161
120
162
156
107
See Fig.TT-1
Key No.7
See Fig.TT-1
Key No.9
See Fig.TT-1
Key No.9
174
174
118
163
162
161
188
187
186
113
112
193
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
115
MODEL TIM-5200F/R
0307-001
TT-2
101 630 001 1418 BEARING,RADIAL 8 F608ZZ 805TT-010-101
102 630 009 5869 MOTOR,STEPPING 2 MPM250,MPM251,#103-8572-7041
805TT-010-102
103 630 071 7099 PULLEY,TIMING 2 805TT-010-103
104 630 069 1818 PULLEY,TIMING 4 805TT-010-104
105 630 071 7631 BELT,TIMING 2 805TT-010-105
106 630 071 6849 GUIDE,LINEAR 1 805TT-010-106
107 630 072 1614 CAM FOLLOWER 4 CF12MUUR-A 805TT-010-107
108 630 005 0851 BEARING,PARTS(LOCK NUT) 4 WBK08L-01 805TT-010-108
109 630 071 7655 SPRING,TORSION 1 805TT-010-109
110 630 071 7679 PLATE 2 805TT-010-110
112 630 000 0252 SENSOR,PHOTO 8 BPH256,BPH262,BPH263,BPH257,
BPH253,BPH259,BPH258,BPH252,
EE-SX671 805TT-010-112
113 630 000 0269 SENSOR,PHOTO(CONNECTOR) 8 805TT-010-113
116 411 000 9809 RING E 3 1 805TT-010-116
117 630 121 7314 BRACKET 2 805TT-010-117
118 630 121 7406 PLATE 2 805TT-010-501
120 630 071 7808 BLOCK 2 805TT-010-120
121 630 071 7815 BLOCK 2 805TT-010-121
122 630 071 7822 PIN,GUIDE 4 805TT-010-122
125 630 082 1536 BLOCK,LOCATE 4 805TT-010-125
127 630 073 9923 PLATE 2 805TT-010-127
129 630 120 6448 PLATE 2 805TT-010-129
130 630 071 7907 BRACKET 1 805TT-010-130
131 630 071 7914 BRACKET 1 805TT-010-131
132 630 071 7921 BRACKET 1 805TT-010-132
133 630 071 7938 ROD 1 805TT-010-133
138 630 071 8768 COLLAR 4 805TT-010-138
141 630 121 7307 BLOCK 2 805TT-010-141
156 411 141 4800 WASHER V 12X24X2.5 4 FW12
157 411 141 3308 WASHER SPR 12 4 SW12
161 411 141 4305 WASHER V 6X12.5X1.6 16 FW6
162 411 141 3001 WASHER SPR 6 16 SW6
163 630 000 7909 BOLT,HEX-SCT 16 M6X25
166 411 141 4107 WASHER V 5X10X1 12 FW5
167 411 141 6705 WASHER SPR 5 12 SW5
168 630 000 7763 BOLT,HEX-SCT 12 M5X16
171 411 141 4008 WASHER V 4X9X0.8 16 FW4
172 411 141 2905 WASHER SPR 4 16 SW4
173 630 000 7626 BOLT,HEX-SCT 4 M4X10
174 630 000 7657 BOLT,HEX-SCT 14 M4X16
175 630 000 7664 BOLT,HEX-SCT 8 M4X20
176 411 141 3902 WASHER V 3X7X0.5 1 FW3
180 411 140 9905 NUT HEX 3 1 M3
186 411 119 1909 WASHER V 3X7X0.5 16 FW3 F
187 411 086 4408 WASHER SPR 3 16 SW3 F
188 411 040 7803 SCR PAN 3X12 16 M3X12 PAN
191 630 000 8951 SET SCREW 4 M5X8 SET
192 630 000 8944 SET SCREW 8 M5X6 SET
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
116
MODEL TIM-5200F/R
0307-001
TT- 2
193 411 118 8503 NUT HEX 5 2 M5 F
194 630 000 8630 BOLT,HEX 2 M5X20 HEX
