128 MODEL TIM-5200F/R 0307-001 本体電装部 MACHINE ELECTRICAL SECTION Fig. BB-2 トラバースＳＤＳ，ＰＭＤ T raverse SDS, PMD See Fig.B-1 Key No.1 See Fig.TT-1 Key No.10 See Fig.TT-1 Key No.10 See Fig.TT-1 Key No.7 See Fig.TT-1 Key No.9 138…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
127
MODEL TIM-5200F/R
0307-001
BB-1
11 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
12 411 141 3001 WASHER SPR 6 4 SW6
14 630 000 7886 BOLT,HEX-SCT 4 M6X16
15 411 141 0505 NUT HEX 5 24 M5
16 411 141 4107 WASHER V 5X10X1 58 FW5
17 411 141 6705 WASHER SPR 5 58 SW5
18 630 000 7749 BOLT,HEX-SCT 4 M5X10
19 630 000 7756 BOLT,HEX-SCT 6 M5X12
20 630 000 7763 BOLT,HEX-SCT 24 M5X16
21 411 141 4008 WASHER V 4X9X0.8 4 FW4
22 411 141 2905 WASHER SPR 4 4 SW4
23 630 000 7626 BOLT,HEX-SCT 4 M4X10
36 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
37 411 008 1706 WASHER SPR 4 4 SW4 F
38 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
45 411 036 8609 SCR PAN+SW+W 5X12 10
51 630 120 7414 TRANSFORMER,POWER 1 T1,STN2.0 805BB-010-251
57 630 070 3061 MOTOR,AC 3 MFAN01,MFAN02,MFAN03,MRS16-BUL
805BB-010-357
58 630 068 4292 ACCESSORY,MOT-M 3 805BB-010-358
75 630 120 7506 BRACKET 1 805BB-010-175
86 630 072 9269 BRACKET 2 805B--010-006
87 630 072 9276 BRACKET 1 805B--010-007
128
MODEL TIM-5200F/R
0307-001
本体電装部 MACHINE ELECTRICAL SECTION

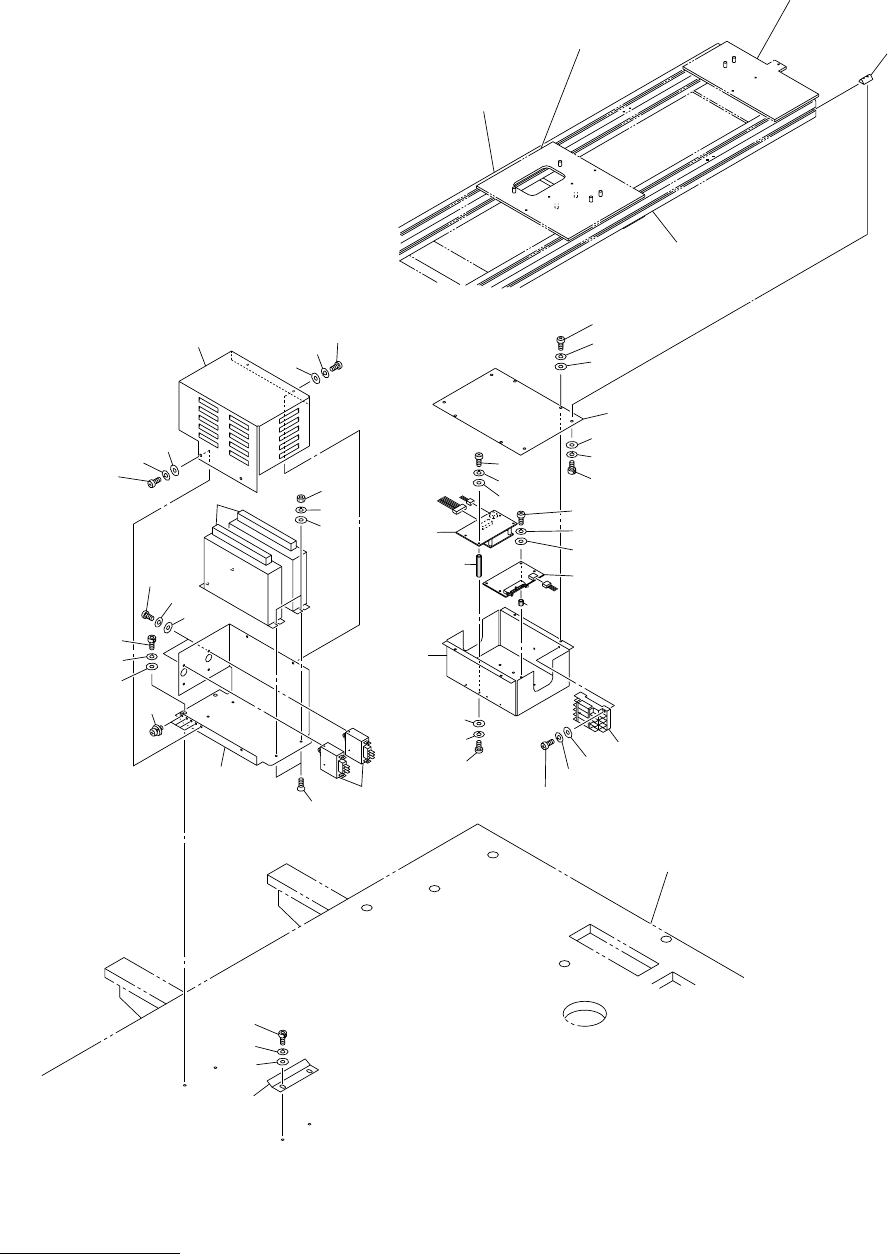

Fig. BB-2 トラバースＳＤＳ，ＰＭＤ Traverse SDS, PMD
See Fig.B-1
Key No.1
See Fig.TT-1
Key No.10
See Fig.TT-1
Key No.10
See Fig.TT-1
Key No.7
See Fig.TT-1
Key No.9
138
172
137
136
121
122
123
133
132
131
161
155
134
132
131
154
135
132
131
136
174
137
138
138
137
136
151
145
173
165
141
140
137
136
133
132
131
158
171
131
132
133
118
117
116
118
117
116
175
153
176
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
129
MODEL TIM-5200F/R
0307-001
BB-2
116 411 141 4107 WASHER V 5X10X1 4 FW5
117 411 141 6705 WASHER SPR 5 4 SW5
118 630 000 7749 BOLT,HEX-SCT 4 M5X10
121 411 141 4008 WASHER V 4X9X0.8 4 FW4
122 411 141 2905 WASHER SPR 4 4 SW4
123 630 000 7619 BOLT,HEX-SCT 4 M4X8
131 411 119 1909 WASHER V 3X7X0.5 18 FW3 F
132 411 086 4408 WASHER SPR 3 18 SW3 F
133 411 041 8908 SCR PAN 3X6 12 M3X6 PAN
134 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
135 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
136 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
137 411 008 1706 WASHER SPR 4 12 SW4 F
138 411 043 5004 SCR PAN 4X8 8 M4X8 PAN
140 411 054 8506 NUT HEX 4 4 M4 F
141 411 035 2707 SCR FLT 4X8 4 M4X8 FLT
145 411 114 7807 SCR PAN+SW+W 4X10 4
151 630 059 3853 UNIT,DRIVER 2 APMD250,APMD251,#AK-BX501-SAT2
805TT-010-051
153 630 074 5122 P.C.B,MOUNT(SDS-DIN) 1 UA03*001*0000 805TT-01U-053
154 630 006 0218 ACCESSORY,P.C.B 4 805TT-010-054
155 630 069 1078 ACCESSORY,P.C.B 4 805TT-010-055
158 630 061 0987 RELAY 1 K401L,K401R,K403,K404
805TT-010-058
161 630 071 2551 UNIT,I/O 1 #SAB10-TS16K41 805TT-010-151
165 630 043 0530 CIRCUIT PROTECTOR 2 Q401,Q402 805TT-010-155
171 630 084 7574 BOX 1 805TT-010-071
172 630 121 7963 PLATE 1 805TT-010-140
173 630 084 7581 BRACKET 1 805TT-010-073
174 630 084 7598 COVER 1 805TT-010-074
175 630 084 7604 PLATE 1 805TT-010-075
176 630 122 5289 NUT 4
