Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 141 MODEL TIM-5200F/R 0307-001 BB-8 716 41 1 141 4107 WASHER V 5X10X1 4 FW 5 717 41 1 141 6705 WASHER SPR 5 4 S W 5 718 630 000 7749 BOL T ,HEX-SCT 4 M5X10 731 41 1 1 19 …
140
MODEL TIM-5200F/R
0307-001
本体電装部 MACHINE ELECTRICAL SECTION

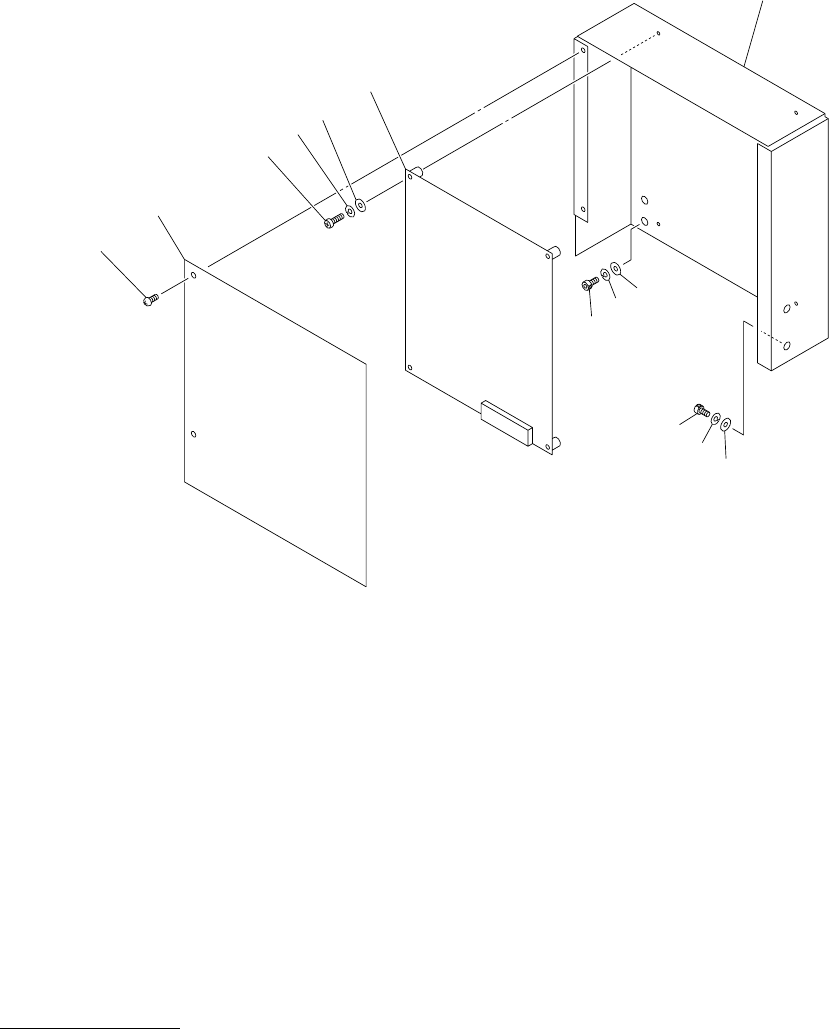

Fig. BB-8 メカ配線ボード３ Machine Wiring Board 3
739
772
733
768
771
718
717
716
732
731
718
717
716
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
141
MODEL TIM-5200F/R
0307-001
BB-8
716 411 141 4107 WASHER V 5X10X1 4 FW5
717 411 141 6705 WASHER SPR 5 4 SW5
718 630 000 7749 BOLT,HEX-SCT 4 M5X10
731 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
732 411 086 4408 WASHER SPR 3 4 SW3 F
733 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
739 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
768 630 096 2765 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0005 805BB-01U-053
771 630 084 3125 BOX 1 805BB-010-371
772 630 084 6973 COVER 1 805BB-010-372
