178 MODEL TIM-5200F/R 0307-001 コンベアボックス部 CONVEYOR BOX SECTION Fig. BK-1 コンベア１ ボックス Conveyor 1 Box 41 42 43 31 32 33 33 32 31 37 38 36 71 65 66 38 36 37 38 36 37 38 36 37 38 66 65 52 53 51 54 53 54 53 54 63 98 58 80 55 . …
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
177
MODEL TIM-5200F/R
0307-001
BF-7
616 411 141 4107 WASHER V 5X10X1 4 FW5
617 411 141 6705 WASHER SPR 5 4 SW5
619 630 000 7749 BOLT,HEX-SCT 4 M5X10
621 411 141 4008 WASHER V 4X9X0.8 4 FW4
622 411 141 2905 WASHER SPR 4 4 SW4
623 630 000 7633 BOLT,HEX-SCT 4 M4X12
631 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
632 411 086 4408 WASHER SPR 3 4 SW3 F
635 411 113 0502 SCR PAN 3X14 4 M3X14 PAN
636 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
637 411 008 1706 WASHER SPR 4 8 SW4 F
638 411 043 5004 SCR PAN 4X8 18 M4X8 PAN
654 630 071 3237 WIRE PARTS 1 805BJ-010-054
660 630 000 1051 BRACKET,WIRING 4 805BJ-010-360
661 630 089 6701 RAIL,WIRING 2 805BJ-010-359
665 630 071 2537 UNIT,I/O 1 #SAB10-TS16K3 805BJ-010-155
666 630 071 2544 UNIT,I/O 1 #SAB10-TA16K3A 805BJ-010-156
667 630 006 0225 ACCESSORY,P.C.B 8 805BJ-010-157
681 630 120 4222 BASE 1 805BJ-010-071
682 630 120 4239 PANEL 1 805BJ-010-072
685 630 122 8259 COVER 1 805BJ-010-075
686 630 045 4260 SOCKET 4 805BJ-010-356
687 630 000 1020 BRACKET,WIRING 2 805BJ-010-357
688 630 063 5782 TIMER 2 KT251,KT252 805BJ-010-358
689 630 049 2125 RELAY 2 K251,K252 805BJ-010-355
690 630 000 1037 BRACKET,WIRING 2 805BJ-010-458
691 630 108 3520 CIRCUIT PROTECTOR 2 Q251,Q252 805BJ-010-460
692 630 081 6396 EM-CONTACTOR 2 KM251,KM252 805BJ-010-354
693 630 081 5887 UNIT,DRIVER 2 ASMD201(A1),ASMD201(B1)
805BJ-010-461
695 630 081 5894 CONNECTOR 2 805BJ-010-352
696 630 081 5870 CORD 2 805BJ-010-351
697 630 121 5730 WIRE PARTS 1 805BJ-010-465
178
MODEL TIM-5200F/R
0307-001

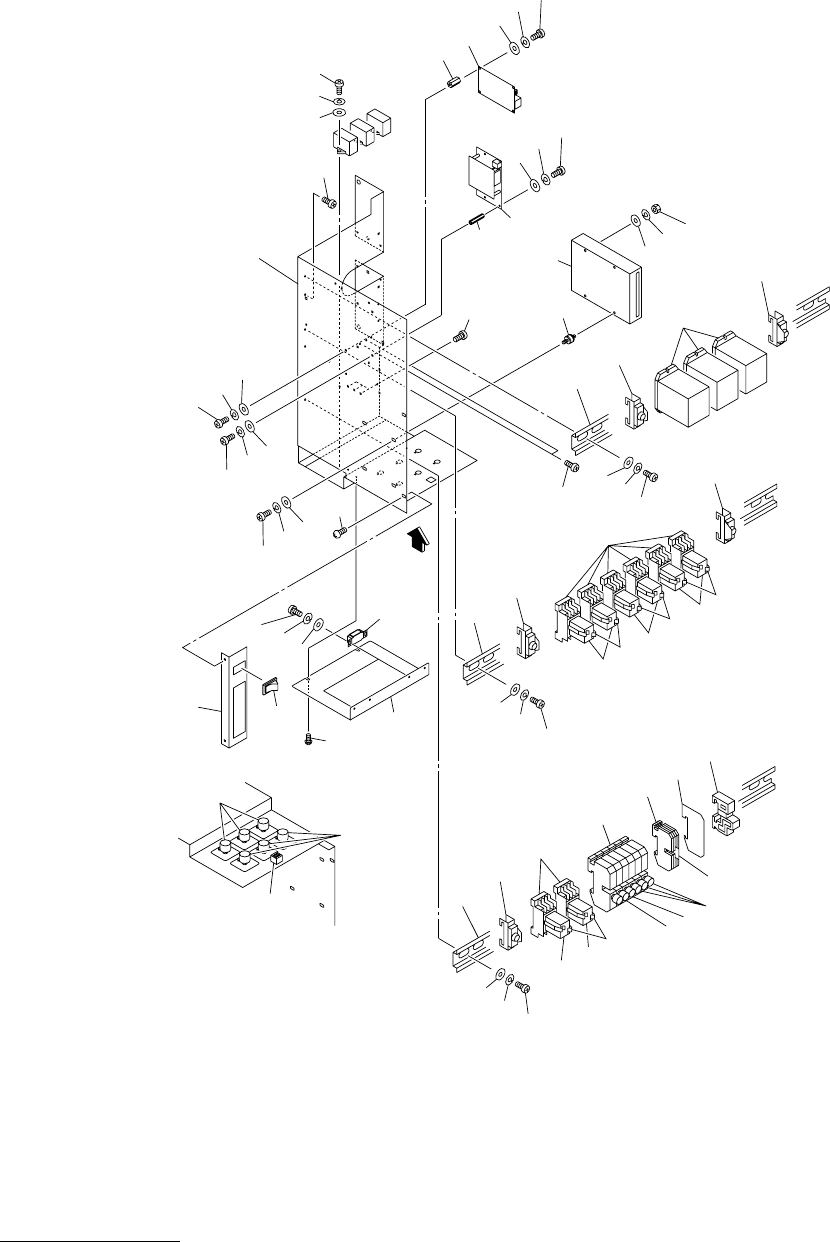

コンベアボックス部 CONVEYOR BOX SECTION
Fig. BK-1 コンベア１ ボックス Conveyor 1 Box
41
42
43
31
32
33
33
32
31
37
38
36
71
65
66
38
36
37
38
36
37
38
36
37
38
66
65
52
53
51
54
53
54
53
54
63
98
58
80
55
.
58
55
.
56
54
96
65
66
65
88
40
51
65
33
32
31
91
90
69
70
68
67
31
32
30
38
38
72
79
31
32
33
75
77
43
42
41
95
94
62
60
97
VIEW "A"
A
39
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
179
MODEL TIM-5200F/R
0307-001
BK-1
30 411 054 6809 NUT HEX 3 6 M3 F
31 411 119 1909 WASHER V 3X7X0.5 22 FW3 F
32 411 086 4408 WASHER SPR 3 22 SW3 F
33 411 041 8908 SCR PAN 3X6 16 M3X6 PAN
34 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
36 411 119 2104 WASHER V 4X9X0.8 9 FW4 F
37 411 008 1706 WASHER SPR 4 9 SW4 F
38 411 043 5004 SCR PAN 4X8 21 M4X8 PAN
39 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
40 411 050 6001 SCR TRS 3X8 2 M3X8 TRS
41 411 141 3605 WASHER V 2X5X0.3 8 FW2 F
42 411 141 2509 WASHER SPR 2 8 SW2 F
43 411 039 2604 SCR PAN 2X6 8 M2X6 PAN
51 630 083 5946 UNIT,DRIVER 3 ASCP21,ASCP22,ASCP23,#SSP-1-K3
805BK-010-051
52 630 045 4260 SOCKET 6 805BK-010-456
53 630 049 2125 RELAY 6 K31,K32,K33,K35,K36,K37
805BK-010-455
54 630 000 1020 BRACKET,WIRING 8 805BK-010-054
55 630 007 3584 RELAY 2 K41,K42 805BK-010-055
56 630 049 2071 SOCKET 2 805BK-010-056
58 630 100 1357 COMP,CR 2 805BK-010-058
60 630 083 5496 FUSE HOLDER 5 805BK-010-060
62 423 022 8302 FUSE 250V 5A 3 F131,F132,F133 805BK-010-152
63 630 049 3672 BRACKET,WIRING 1 805BK-010-251
65 630 000 1051 BRACKET,WIRING 5 805BK-010-460
66 630 091 2104 RAIL,WIRING 3 805BK-010-256
67 630 122 1021 UNIT,I/O 1 FDD,#FD-05HGS-850 805BK-010-257
68 630 033 9505 MECH PARTS(RUBBER DAMPER) 4 805BK-010-258
69 630 071 2568 UNIT,I/O 1 #SAB10-TA16K41A 805BK-010-359
70 630 069 1078 ACCESSORY,P.C.B 4 805BK-010-452
71 630 120 1962 BASE 1 805BK-010-071
72 630 120 2044 PANEL 1 805BK-010-072
75 630 122 6422 COVER 1 805BK-010-075
77 630 003 6107 MECH PARTS(MAGNET CATCHE) 2 805BK-010-267
79 630 083 5335 RESISTOR,R-VARIABLE 3 805BK-010-159
80 630 083 5342 CASE,CONN 1 805BK-010-160
86 630 058 8460 ACCESSORY,WIRING 1 805BK-010-266
88 630 076 0644 SWITCH,SEESAW 1 S11,JW-M22RKK 805BK-010-358
90 630 120 0729 UNIT,I/O 1 #TA-100KR-P 805BK-010-270
91 630 106 5427 ACCESSORY,P.C.B 4 805BK-010-271
94 423 022 8005 FUSE 250V 1A 1 F110 805BK-010-154
95 423 022 8104 FUSE 250V 2A 1 F112 805BK-010-155
96 630 058 8415 ACCESSORY,WIRING 1 805BK-010-262
97 630 083 5472 TERMINAL 4 805BK-010-263
98 630 083 5519 ACCESSORY,WIRING 1 805BK-010-264
