60
MODEL TIM-5200F/R
0307-001
異形ヘッドＬ部 DEFORM HEAD L SECTION

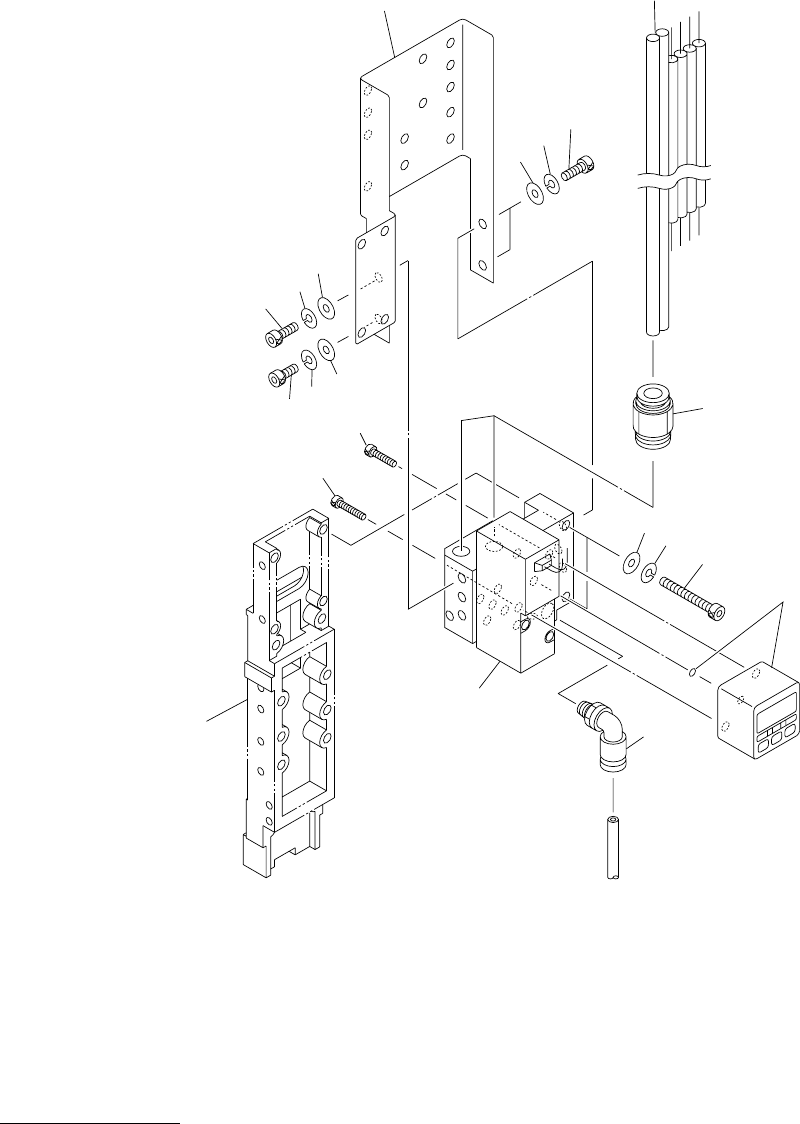

Fig. MB-9 マニホールド Manihold
See Fig.MB-3
Key No.201
804
871
874
872
810
812
871
809
878-1
878
871
872
874
873
872
871
875
872
808
807
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
61
MODEL TIM-5200F/R
0307-001
MB-9 2 unit/1 machine
804 630 082 1482 BRACKET 1 805MB-010-704
807 630 083 3997 SWITCH,PRESSURE 1 -SVS121(LA1),(LB1),DP3-80Z
805MB-010-207
808 630 003 7302 PIPE FITTINGS 1 805MB-010-208
809 630 121 5242 BLOCK 1 -YSV21(LA1),(LB1) 805MB-010-709
810 630 069 5076 TUBE 1 805MB-010-710
812 630 003 6985 PIPE FITTINGS 2
871 411 141 4008 WASHER V 4X9X0.8 8 FW4
872 411 141 2905 WASHER SPR 4 8 SW4
873 630 000 7626 BOLT,HEX-SCT 1 M4X10
874 630 000 7633 BOLT,HEX-SCT 3 M4X12
875 630 000 7688 BOLT,HEX-SCT 4 M4X30
878 630 000 7558 BOLT,HEX-SCT 1 M3X16
879 630 000 7541 BOLT,HEX-SCT 1 M3X14
62
MODEL TIM-5200F/R
0307-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

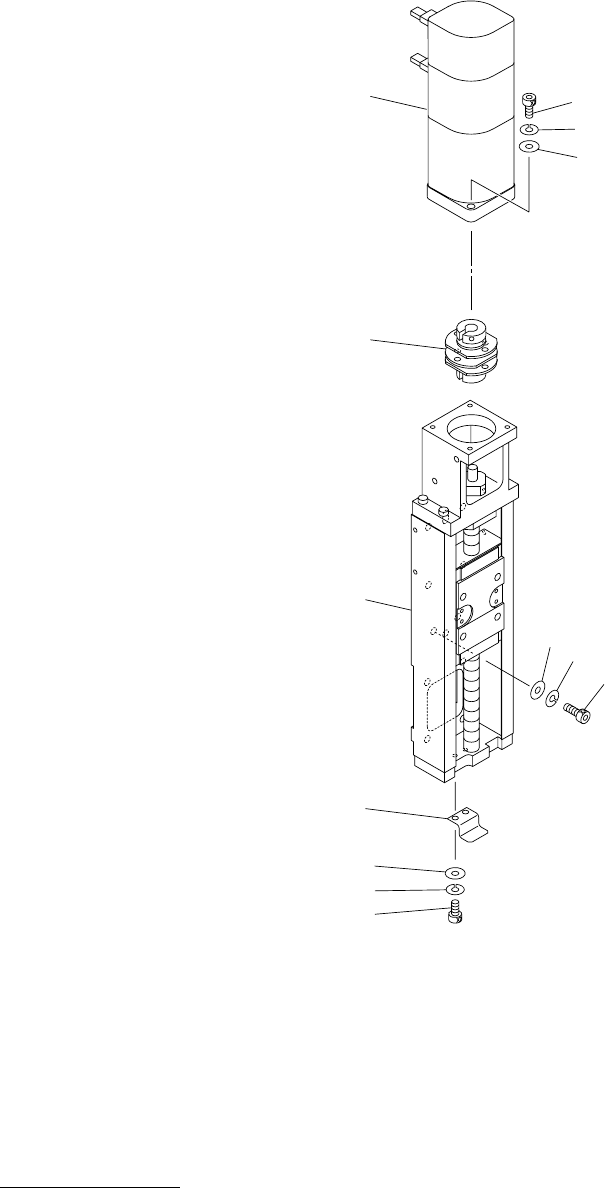

Fig. MC-1 Ｌ軸駆動ユニット L Axis Driver Unit
3
2
74
72
71
71
72
73
1
5
76
77
78
