Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 73 MODEL TIM-5200F/R 0307-001 MC-8 2 unit/1 machine 701 630 074 1551 BRACKET 1 805MC-010-801 702 630 074 1568 BRACKET 1 805MC-010-802 703 630 074 0974 PLA TE 1 805MC-010-…
72
MODEL TIM-5200F/R
0307-001
異形ヘッドＲ部 DEFORM HEAD R SECTION
Fig. MC-8 ヘッド照明部 Head Lighting Section
702
754
703
780
711
780
780
712
712
See Fig.MC-2
Key No.101
See Fig.MC-2
Key No.113
776
777
778
701
779
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
73
MODEL TIM-5200F/R
0307-001
MC-8 2 unit/1 machine
701 630 074 1551 BRACKET 1 805MC-010-801
702 630 074 1568 BRACKET 1 805MC-010-802
703 630 074 0974 PLATE 1 805MC-010-803
711 630 075 1819 BRACKET 2 805MC-010-811
712 630 069 0644 BOLT 3 805MC-010-114
754 630 070 3634 LIGHTING UNIT 1 M(A2)-E21,M(B2)-E21,VL-3100
805MC-010-054
776 411 141 3902 WASHER V 3X7X0.5 2 FW3
777 411 141 2806 WASHER SPR 3 2 SW3
778 630 000 7534 BOLT,HEX-SCT 2 M3X12
779 630 000 7572 BOLT,HEX-SCT 2 M3X25
780 630 000 7503 BOLT,HEX-SCT 3 M3X6
74
MODEL TIM-5200F/R
0307-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

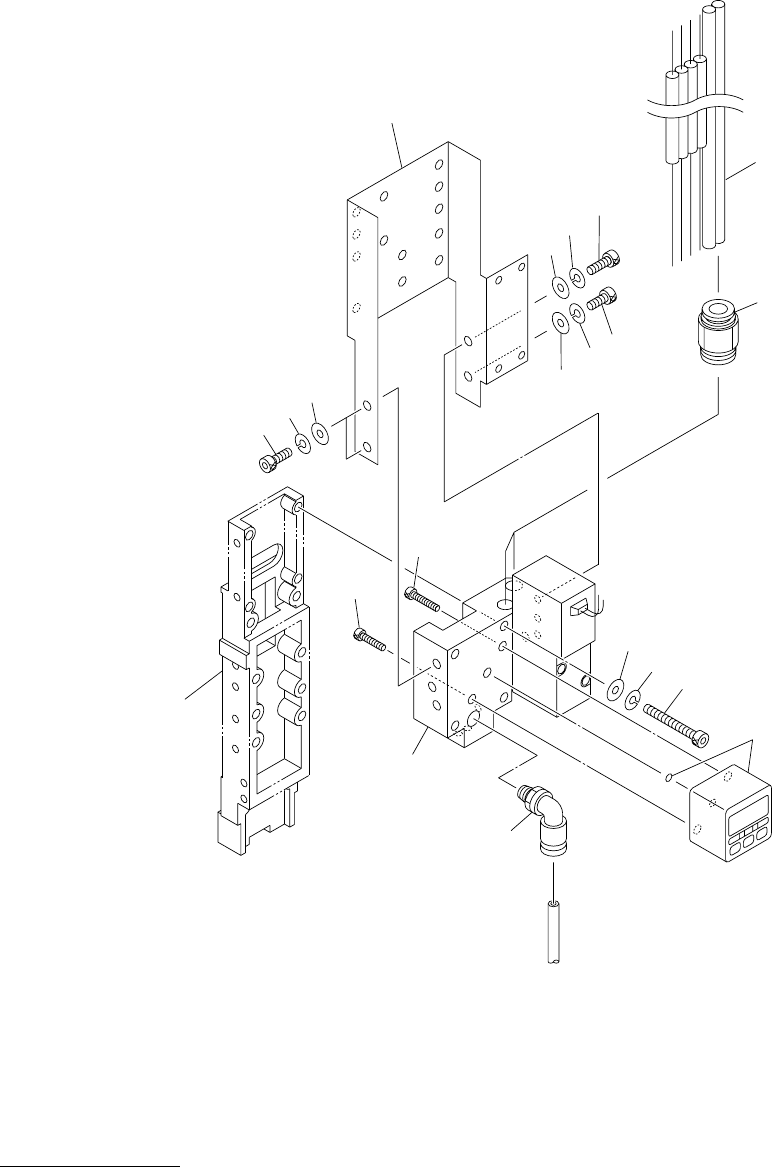

Fig. MC-9 マニホールド Manihold
804
871
874
872
871
871
875
872
873
872
810
812
878
871
872
874
878-1
809
808
807
See Fig.MC-3
Key No.201
