76 MODEL TIM-5200F/R 0307-001 コンベア部 CONVEYOR SECTION Fig. N-1 コンベアベ－ス Conveyor Base See Fig.N-2 Key No.125 79 79 7 11 8 9 91 92 93 9 8 91 56 4 19 14 51 52 96 3 66 67 68 10 17 10 15 96 6 69 67 66 96 76 77 78 1 13 2 5 66 6…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
75
MODEL TIM-5200F/R
0307-001
MC-9 2 unit/1 machine
804 630 082 1499 BRACKET 1 805MC-010-804
807 630 083 3997 SWITCH,PRESSURE 1 -SVS121(LA2),(LB2),DP3-80Z
805MC-010-207
808 630 003 7302 PIPE FITTINGS 1 805MC-010-208
809 630 121 5259 BLOCK 1 -YSV21(LA2),(LB2) 805MC-010-809
810 630 069 5663 TUBE 1 805MC-010-810
812 630 003 6985 PIPE FITTINGS 2
871 411 141 4008 WASHER V 4X9X0.8 8 FW4
872 411 141 2905 WASHER SPR 4 8 SW4
873 630 000 7626 BOLT,HEX-SCT 1 M4X10
874 630 000 7633 BOLT,HEX-SCT 3 M4X12
875 630 000 7688 BOLT,HEX-SCT 4 M4X30
878 630 000 7558 BOLT,HEX-SCT 1 M3X16
879 630 000 7541 BOLT,HEX-SCT 1 M3X14
76
MODEL TIM-5200F/R
0307-001

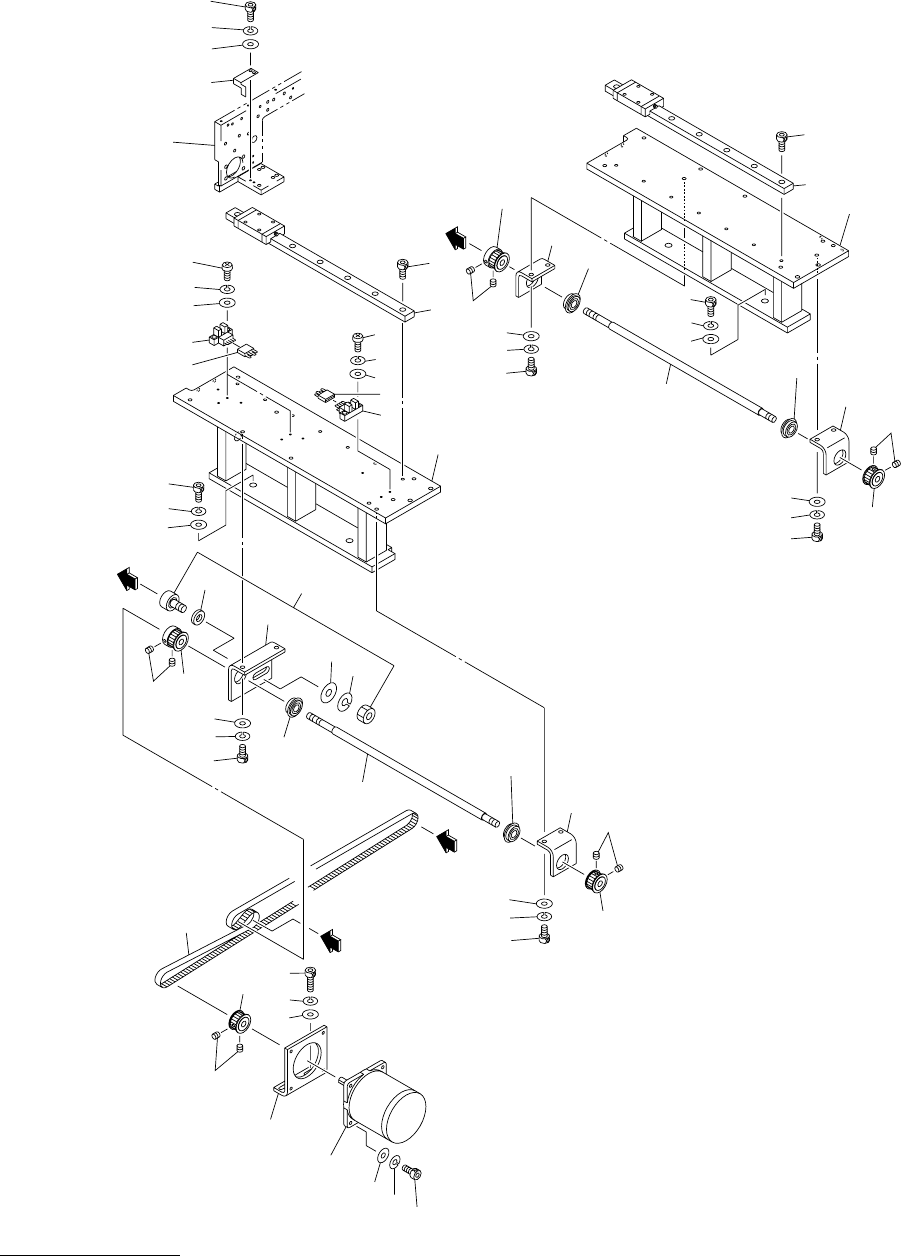

コンベア部 CONVEYOR SECTION
Fig. N-1 コンベアベ－ス Conveyor Base
See Fig.N-2
Key No.125
79
79
7
11
8
9
91
92
93
9
8
91
56
4
19
14
51
52
96
3
66
67
68
10
17
10
15
96
6
69
67
66
96
76
77
78
1
13
2
5
66
67
68
57
58
92
93
7
12
58
57
56
96
16
10
10
15
3
96
66
18
86
87
88
67
68
17
5
66
67
68
A
B
A
B
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
77
MODEL TIM-5200F/R
0307-001
N-1
1 630 009 5869 MOTOR,STEPPING 1 MPM11(PWC),#103-8572-7041
805N--010-001
2 630 069 1894 PULLEY,TIMING 1 805N--010-002
3 630 069 1832 PULLEY,TIMING 2 805N--010-003
4 630 072 1614 CAM FOLLOWER 1 CF12MUUR-A 805N--010-004
5 630 069 1818 PULLEY,TIMING 2 805N--010-005
6 630 083 6769 BELT,TIMING 1 805N--010-006
7 630 083 5793 GUIDE,LINEAR 2 805N--010-007
8 630 000 0252 SENSOR,PHOTO 2 BPH151,BPH153,EE-SX671
805N--010-008
9 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 805N--010-009
10 630 001 1425 BEARING,RADIAL 4 6000ZZNR 805N--010-010
11 630 120 2204 SUPPORT 1 805N--010-011
12 630 120 2198 SUPPORT 1 805N--010-012
13 630 084 7123 BRACKET 1 805N--010-013
14 630 083 7872 BRACKET 1 805N--010-014
15 630 083 7889 BRACKET 2 805N--010-015
16 630 083 7896 BRACKET 1 805N--010-016
17 630 084 1787 SHAFT 2 805N--010-017
18 630 084 1039 BRACKET 1 805N--010-018
19 630 084 5884 COLLAR 1 805N--010-019
51 411 141 4800 WASHER V 12X24X2.5 1 FW12
56 630 001 0244 WASHER 4 BW8
57 411 141 3100 WASHER SPR 8 4 SW8
58 630 000 8012 BOLT,HEX-SCT 4 M8X20
66 411 141 4305 WASHER V 6X12.5X1.6 10 FW6
67 411 141 3001 WASHER SPR 6 10 SW6
68 630 000 7886 BOLT,HEX-SCT 8 M6X16
69 630 000 7909 BOLT,HEX-SCT 2 M6X25
76 411 141 4107 WASHER V 5X10X1 4 FW5
77 411 141 6705 WASHER SPR 5 4 SW5
78 630 000 7725 BOLT,HEX-SCT 4 M5X6
79 630 000 7763 BOLT,HEX-SCT 14 M5X16
86 411 141 3902 WASHER V 3X7X0.5 2 FW3
87 411 141 2806 WASHER SPR 3 2 SW3
88 630 000 7503 BOLT,HEX-SCT 2 M3X6
91 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
92 411 086 4408 WASHER SPR 3 4 SW3 F
93 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
96 630 000 8951 SET SCREW 10 M5X8 SET
