2 Brief description 2.3 Scope of Delivery Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2 Option Input Conveyor Extension 05/2017 52 2.3 Scope of Delivery Fig.5: Overview of input conveyor extension (example…
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
2 Brief description
2.1 Product description
51
2 Brief description
2.1 Product description
This input conveyor extension option allows you to extend the conveyor beyond the standard width
of the machine.
The input conveyor extension can be installed on any machine in the line. This improves access to
the machines.
In addition, the input conveyor extension is required to install the "SICK LECTOR620 PCB barcode
scanner" option.
NOTICE
PCB barcode scanner without input conveyor extension
However, it is possible to use the COGNEX DM100 or DM150, which do not require the in-
put conveyor extension. These barcode scanners can be installed behind the narrow cover
in the input area in front of the machine.
2.2 Prerequisites
The input conveyor extension can be installed on any SIPLACE SX1/SX2 V2 machine in the line.
The input conveyor extension is required to install the "PCB barcode scanner" option. For more in-
formation, see the "PCB Barcode" assembly instructions [DE+EN:00197088‑xx].
2 Brief description
2.3 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
52
2.3 Scope of Delivery

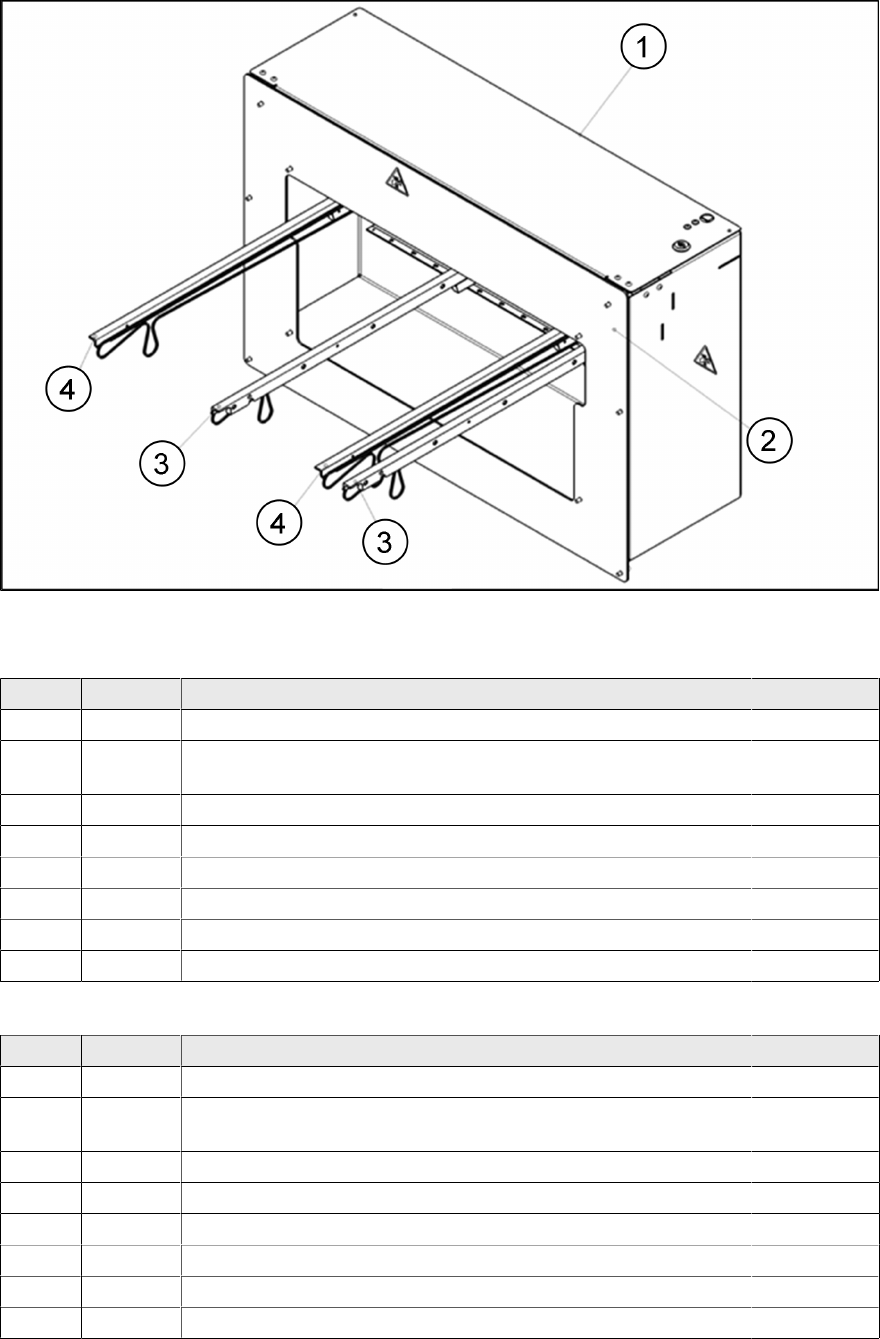

Fig.5: Overview of input conveyor extension (example of dual conveyor)
Input conveyor extension SX1/SX2 single conveyor [00519991-xx]
Pos. Quantity Designation Item no.
1 1 Hand guard belt extension 03100054-xx
2 1 Adapter Plate Integr. Kit PCB-Barcode
Components:
03125509-xx
4 ISO 4762 - M 6 x 12-A2-70 03042572-xx
6 EN 1663 - M6-8 03010700-xx
1 Adapter plate barcode scanner complete 03121015-xx
3 1 Input conveyor extension B/D complete 03127427-xx
4 1 Input conveyor extension A/C complete 03127428-xx
--- 1 Assembly kit flap PCB barcode 03100529-xx
Input conveyor extension SX1/SX2 (dual conveyor) [00519992-xx]
Pos. Quantity Designation Item no.
1 1 Hand guard belt extension 03100054-xx
2 1 Adapter Plate Integr. Kit PCB-Barcode
Components:
03125509-xx
4 ISO 4762 - M 6 x 12-A2-70 03042572-xx
6 EN 1663 - M6-8 03010700-xx
1 Adapter plate barcode scanner complete 03121015-xx
3 2 Input conveyor extension B/D complete 03127427-xx
4 2 Input conveyor extension A/C complete 03127428-xx
--- 1 Assembly kit flap PCB barcode 03100529-xx
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
2 Brief description
2.4 Tools and equipment required
53
2.4 Tools and equipment required
The following tools and equipment are required for the work described in this manual:
●
Standard tools
●
Belt tension measuring device [00326015‑xx]
●
Second person (for installing the hand guard belt extension)
●
Service Manual SIPLACE SX1/SX2 V2 [DE:00196999‑xx] [EN:00197000‑xx]
2.5 Required Working Time
The complete installation takes about two hours.
Installing the PCB barcode scanner might also be required (additional two hours).
