3 Installation
3.5 Mounting the hand guard belt extension
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
60
3.5 Mounting the hand guard belt extension

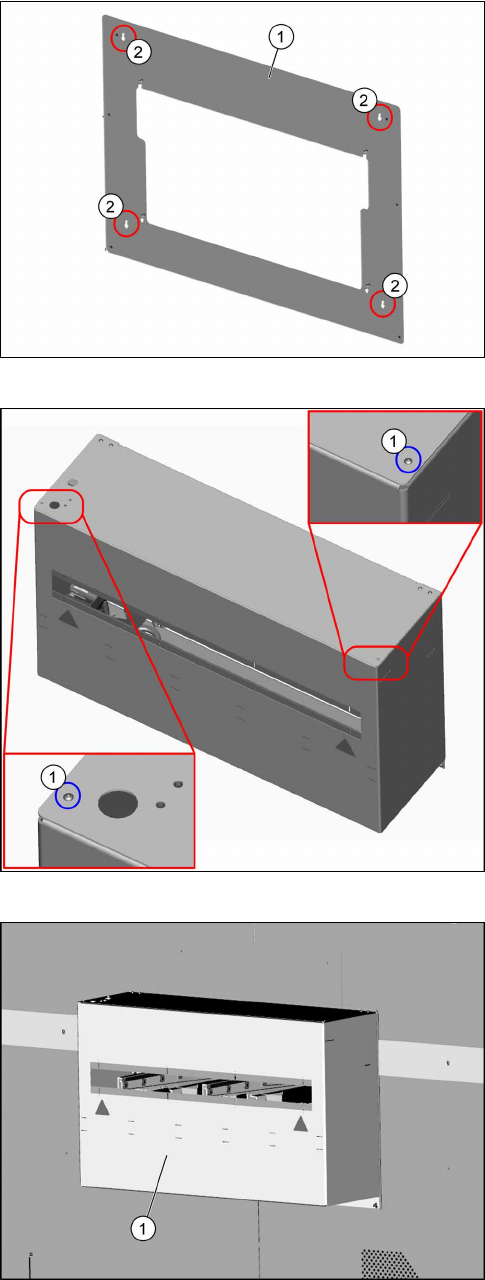

Fig.13: Adapter plate
► Use four screws (2) [03042572‑xx] to fasten the
adapter plate (1) [03121015‑xx] to the input side
of the machine.
Fig.14: Removing the top cover
► Remove both screws(1) that fasten the top
cover.
ð You can now flip open the top cover. This sim-
plifies installing the hand guard belt extension.
Fig.15: Mounting the hand guard belt extension
► Lift the hand guard belt extension (1)
[03119279‑xx] to the machine. Use an appropri-
ate tool if necessary (e.g. a crane).
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
3 Installation
3.5 Mounting the hand guard belt extension
61
Fig.16: Adapter plate
► Hook the hand guard belt extension
[03100054‑xx] onto the six threaded pins (2) of
the adapter plate (1).
Fig.17: Mounting the hand guard belt extension
► Use six self-locking M6-8 [03010700‑xx] nuts (1)
to fasten the hand guard belt extension.
Fig.18: Fastening the top cover
► Fix the top cover with two fastening screws(1).
This is necessary to prevent someone from reaching
into the running machine.
3 Installation
3.6 Setting the belt tension
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
62
Fig.19: Attaching the stickers
► If not present, attach the respective stickers(1) to
the hand guard belt extension.
3.6 Setting the belt tension
Measuring the belt tension
► Set the tension of the new conveyor belt for all
conveyor rails.
To do so, measure the distance between the first
idler pulley (1) and the movable idler pulley (2)
from center to center (585 mm distance).
The belt tension here is about 34Hz+/‑10%.
See also: 4.1.6.2 "Calculating the Belt Ten-
sion" [}71].
