The following chapters are excerpts from the service manual for your machine. If required, further
information is provided there.
●
Service Manual SIPLACE SX1/SX2 V2 [DE:00196999‑xx] [EN:00197000‑xx]
4.1.1 Replacing the Hexagonal Shaft [03094006-xx]
Parts, equipment and tools
●
Hexagonal shaft SX1a [03094006-xx]
●
Bearing for hexagonal shaft SXa (plastic bearing) – pack of 10 [03092024-xx]
Overview
1. Hexagonal shafts
Removal
► Use the software to move the conveyor rails into a position which allows you best access. Al-
ternatively, you can also loosen the conveyor rail clamps on the dual conveyor.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthor-
ized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}46].
► Loosen the screws (4) fastening the hexagonal
shaft mount (2) and remove the plastic bearings
(3) on both sides of the conveyor.
CAUTION!
The hexagonal shafts (1) are fixed on both sides
of the conveyor with brackets. When you dis-
mantle the hexagonal shaft, you only need to
take off one of these brackets.
Make sure that you do not lose the plastic bear-
ings. When you dismantle a bracket, always re-
move all the plastic bearings on this bracket and
the opposite bracket. These would otherwise ob-
struct the movement of the hexagonal shafts and
could easily fall out.
.
4 Appendix
4.1 Excerpts from the Service Manual
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
64
NOTICE!
Many tasks on the conveyor require to simply
move the hexagonal shafts instead of removing
them. In most of these cases, you do not need to
dismantle the end of the hexagonal shafts.
.
► Unscrew the two ends (2) of the hexagonal shaft
(1). This shortens the shaft and makes it easier to
handle.
► Unthread the hexagonal shaft.
Installation
► Follow the removal instructions in reverse order
for installation.
► Once you have loosened the ball studs (2) of the
hexagonal shafts (1), tighten these with a torque
of 14 Nm.
CAUTION!
Be careful not to damage the hexagonal shafts
with the tool.
.
4.1.2 Replacing the Tape Drive [03092315-xx]
Parts, equipment and tools
●
Belt drive assembly SXa [03092315-xx]
●
Bearing for hexagonal shaft SXa (plastic bearing) – pack of 10 [03092024-xx]
Overview
1. Tape drive
2. Drive shaft on belt drive
Removal/installation
► Replacement of the belt drive is identical to replacement of the conveyor drive. For more in-
formation about this, read section 4.1.3 "Replacing the conveyor drive [03092345-xx]" [}65].
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
4 Appendix
4.1 Excerpts from the Service Manual
65
4.1.3 Replacing the conveyor drive [03092345-xx]
Parts, equipment and tools
●
Drive unit SXa complete [03092345-xx]
●
Bearing for hexagonal shaft SXa (plastic bearing) – pack of 10 [03092024-xx]

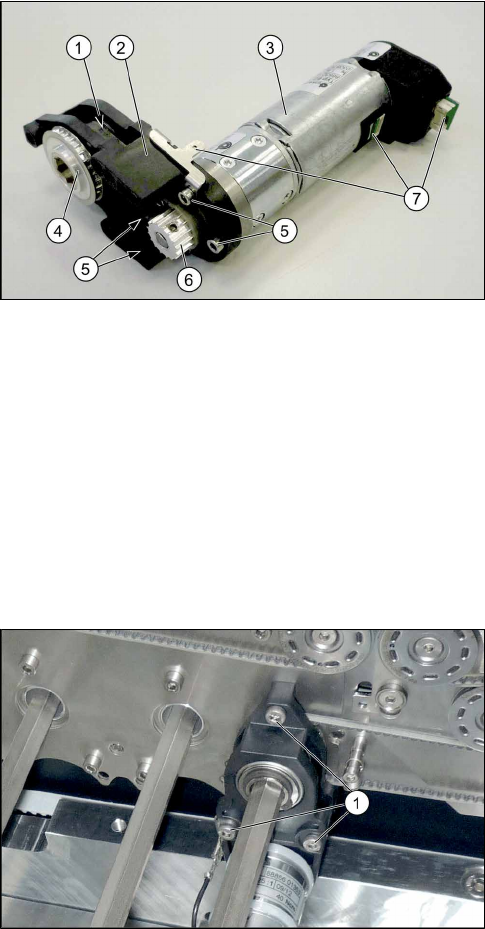

Overview
1. Toothed belt on conveyor drive
2. Drive bracket
3. Motor
4. Drive shaft
5. Four motor fastening screws in the drive bracket
6. Motor shaft
7. Electrical connections (incl. shield connection)
Removal
► Use the software to move the conveyor rails into a position which allows you best access. Al-
ternatively, you can also loosen the conveyor rail clamps on the dual conveyor.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthor-
ized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}46].
► Loosen the hexagonal shaft on the belt drive or conveyor drive (motor), so that you can move
the shaft freely. To do this, dismantle the hexagonal shaft fixture on one side and the corres-
ponding plastic bearing on both sides (see also 4.1.1 "Replacing the Hexagonal Shaft
[03094006-xx]" [}63]).
► Loosen the movable idler pulley (see also 4.1.6.1 "Setting the Tension of the Conveyor
Toothed Belt" [}69]).
► Remove the three screws (1) fastening the con-
veyor drive. While doing this, carefully unthread
the conveyor drive from the conveyor belt. Ob-
serve the washers used.
If needed, make a note of the number of washers
and their positions.
► Remove the two screws fastening the cover plate
above the connectors of the conveyor drive and
remove the cover plate.
► Disconnect the conveyor drive from the power
supply. Loosen the corresponding cable ties, if
required.
► Remove the conveyor drive from the machine.
