4 Appendix
4.1 Excerpts from the Service Manual
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
70

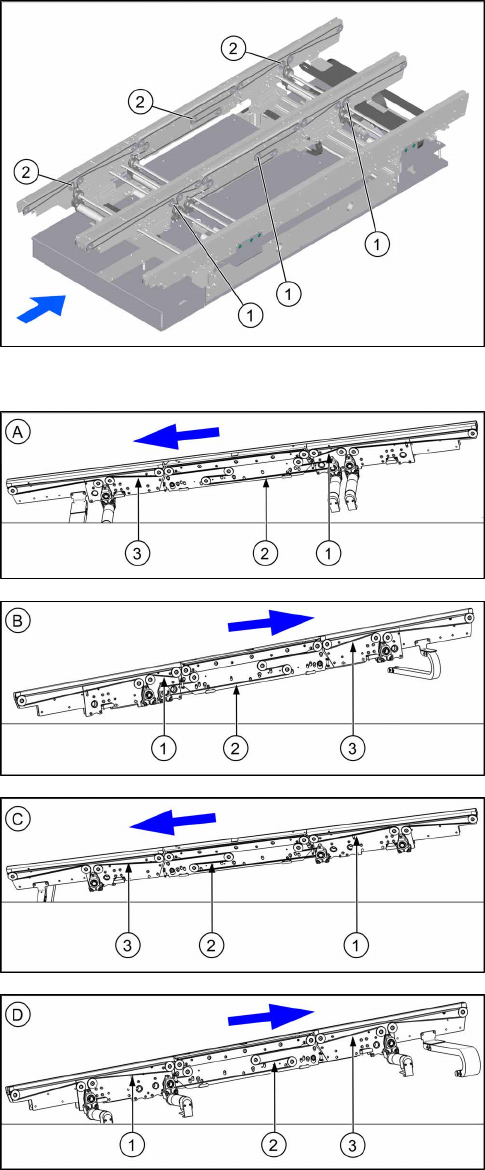

1. Movable idler pulleys on conveyor rail B
2. Movable idler pulleys on conveyor rail D
Overview of Measuring Points and Values
Right conveyor lane 1 – conveyor rail A
1. Input area: 250 +/- 15 Hz
2. Placement area: 50 +/- 5 Hz
3. Output area: 125 +/- 13 Hz
Left conveyor lane 1 – conveyor rail B
1. Input area: 250 +/- 15 Hz
2. Placement area: 50 +/- 5 Hz
3. Output area: 125 +/- 13 Hz
Right conveyor lane 2 – conveyor rail C
1. Input area: 80 +/- 8 Hz
2. Placement area: 175 +/- 18 Hz
3. Output area: 100 +/- 10 Hz
Left conveyor lane 2 – conveyor rail D
1. Input area: 80 +/- 8 Hz
2. Placement area: 175 +/- 18 Hz
3. Output area: 100 +/- 10 Hz
Setting
► Use the software to move the conveyor rails into a position which allows you best access. Al-
ternatively, you can also loosen the conveyor rail clamps on the dual conveyor.
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthor-
ized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}46].
► Check the tension at the relevant measuring point.
► If the tension is not correct, loosen the screw fastening the movable idler pulley and correct
the tension.
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V2
Option Input Conveyor Extension 05/2017
4 Appendix
4.1 Excerpts from the Service Manual
71
► Repeat the measurement 4 times.
4.1.6.2 Calculating the Belt Tension
NOTICE
For conveyor belt only
This calculation only applies to the conveyor belt.
Fig.21: Measuring the distance
► Define the two idler pulleys between which you
want to set the belt tension. If possible, do not
use the movable idler pulleys.
► Measure the distance between the two idler pul-
leys parallel to the conveyor belt. (see dia-
gram)
CAUTION!
Note that it is not always possible to simply
measure the distance between the idler pul-
leys from center to center.
.
► Calculate the belt tension using the following for-
mula:
(20000 / idler pulley spacing [mm]) [Hz]
The permissible tolerance is always plus/minus 10%
of the calculated value.
Example
Distance between the idler pulleys: 235mm
Calculation:
20000 / 235 = 85 (rounded, exactly 85.106…)
10 % of 85.106… = 9 (rounded, exactly 8.5106…)
Result:
Belt tension: 85 +/-9 Hz
