CP-743E-04 PART LIST - 第102页

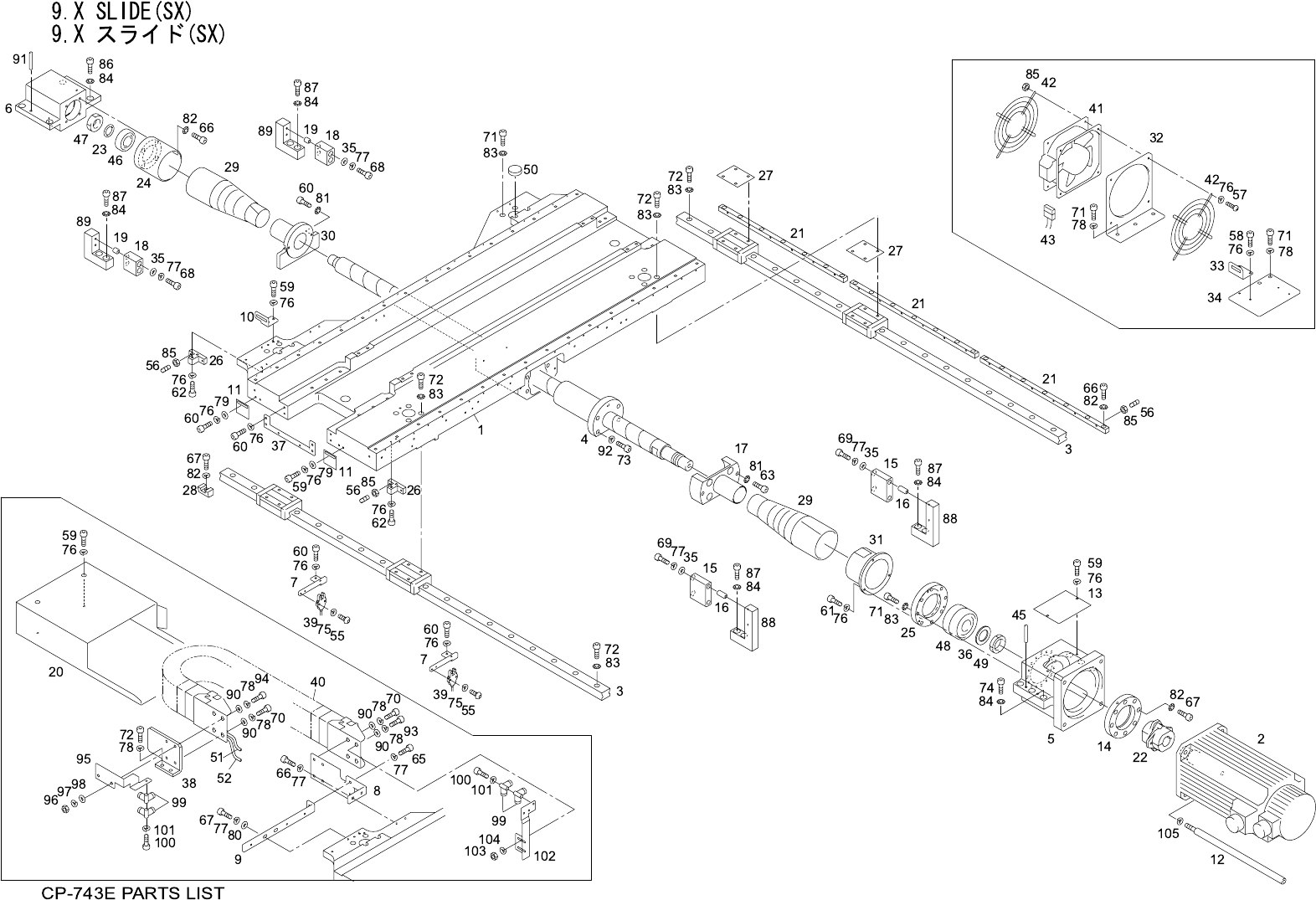

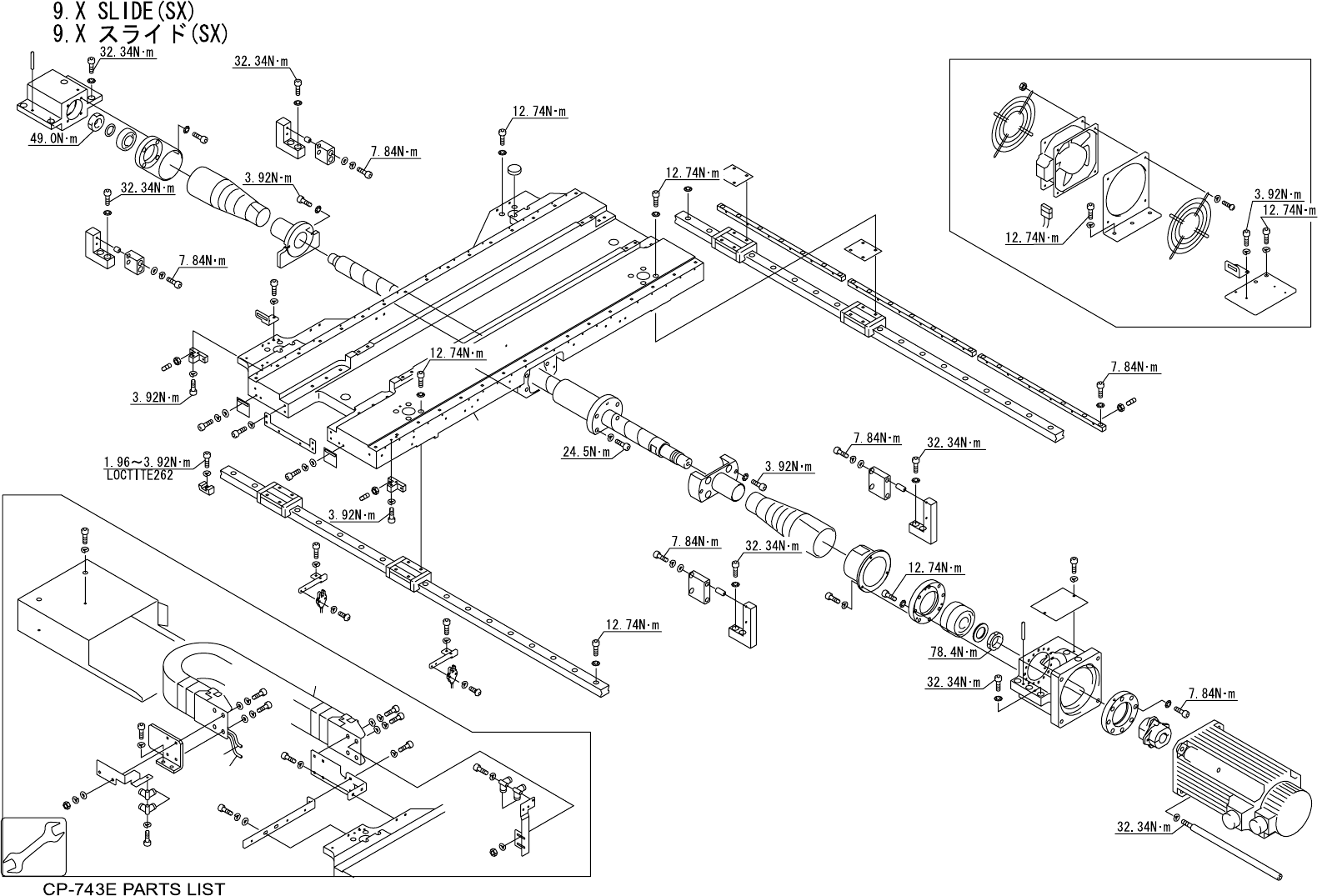

9.X SLIDE(SX)

9.X スライド(SX)

番号図番 & ｺｰﾄﾞ番号個数品名規格材質備考

No. Drg.No. & Code No. QTY Description Rating Materials Remarks

1 DGSX0380 1 SLIDE, X-AXIS ｽﾗｲﾄﾞ X軸 AL

2 SAM1701 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ SGMSH-50A2A-FJ11 OT

3 DGSX0040 2 GUIDE, RAIL ｶﾞｲﾄﾞﾚｰﾙ SSR25XW2SSC1+1070LYPS-Ⅱ(B) OT

4 DGSX0050 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ W3208-414PSX-C3Z25 OT

5 DGSX0020 1 BKT, MOTOR BKT ﾓｰﾀ FE 注2．Note.2

6 DGSX0031 1 BKT, SUPPORT BKT 支え FE 注2．Note.2

7 DGSX0230 2 BKT, SENSOR BKT ｾﾝｻ FE

8 DGSX0060 1 BKT BKT FE

9 DGSX0071 1 BKT BKT FE

10 DGSX0250 1 BKT BKT FE

11 DGSX0240 2 DOG ﾄﾞｯｸﾞ FE

12 DGSX0260 4 BOLT ﾎﾞﾙﾄ FE

13 DGSX0160 1 COVER ｶﾊﾞｰ FE

14 DGSX0101 1 COVER, BEARING 蓋ﾍﾞｱﾘﾝｸﾞ FE

15 DGSX0190 2 STOPPER ｽﾄｯﾊﾟ PL

16 DGSX0210 4 COLLAR ｶﾗｰ FE

17 DGSX0360 1 HOLDER ﾎﾙﾀﾞ FE

18 DGSX0200 2 STOPPER ｽﾄｯﾊﾟ PL

19 DGSX0220 4 COLLAR ｶﾗｰ FE

20 DGSX0083 1 GUIDE ｶﾞｲﾄﾞ FE

21 DGSX0271 3 RETAINER, RAIL 押えﾚｰﾙ FE

22 DGSX0340 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ LCS-65B OT

23 DGSX0140 1 COLLAR ｶﾗｰ FE

24 DGSX0131 1 CATCH PAN 受け皿 FE

25 DGSX0111 1 RETAINER, BEARING 押えﾍﾞｱﾘﾝｸﾞ FE

26 DGSX0370 2 BKT BKT FE

27 DGSD0770 2 SPACER ｽﾍﾟｰｻ FE t=1.00 注1．Note.1

28 GPT0792 18 RETAINER 押え FE

29 CSSX0030 2 COVER, SCREW ｶﾊﾞｰｽｸﾘｭｳ FC-40-670-65S FE

30 CSSX0061 1 HOLDER ﾎﾙﾀﾞ FE

31 DGSX0092 1 CATCH PAN 受け皿 FE

32 DCSX0090 1 BKT BKT FE

33 DCSX0430 1 BKT BKT FE

34 DCSX0110 1 BKT BKT FE

35 CSSX0100 8 WASHER ﾜｯｼｬ FE

36 WSX4260 1 COLLAR ｶﾗｰ FE

37 DCSX0441 1 BKT BKT FE

CP-743E PARTS LIST
