CP-743E-04 PART LIST - 第168页
164
163
164

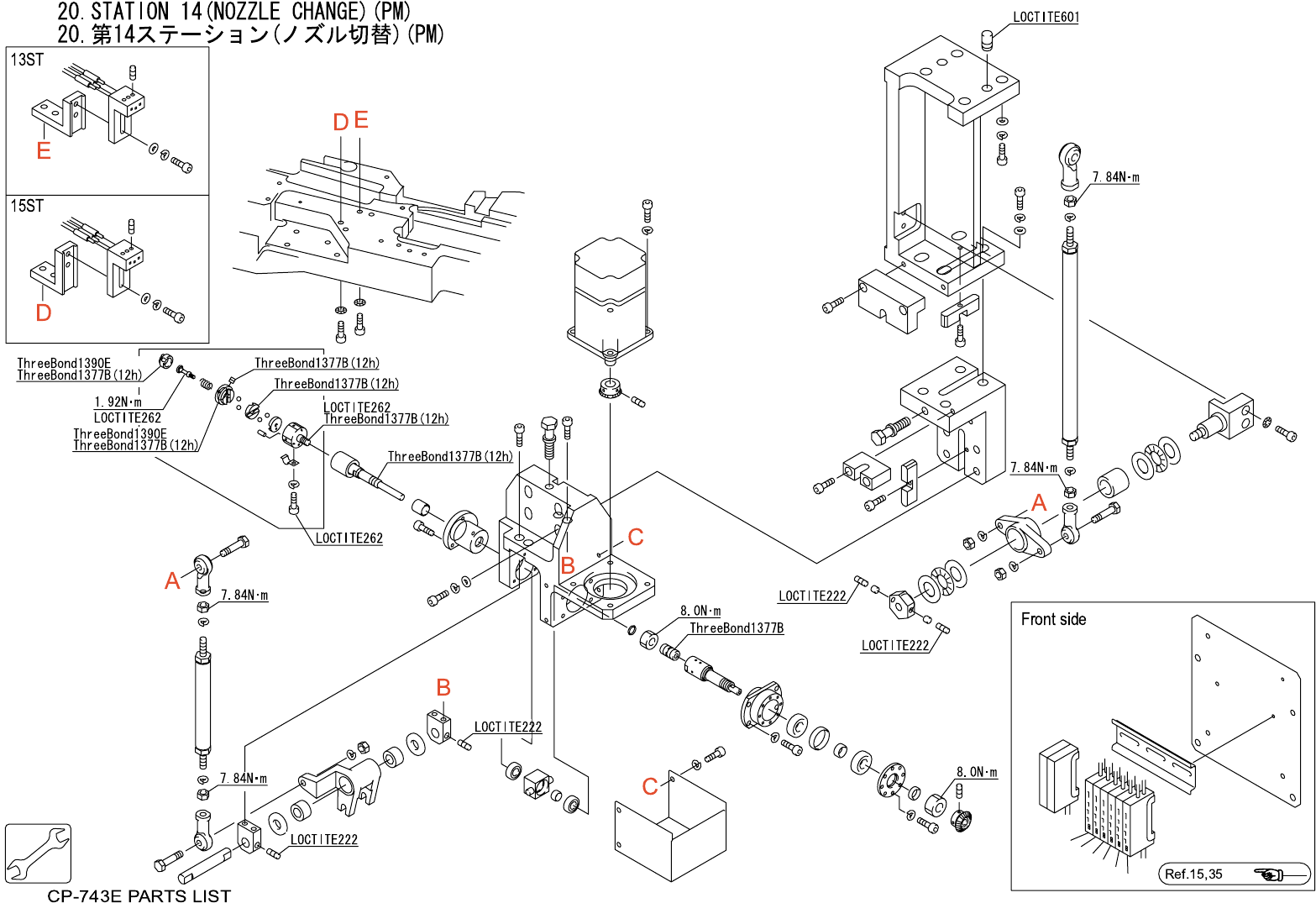

20.STATION 14(NOZZLE CHANGE)(PM)
20.第14ステーション(ノズル切換)(PM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 H4224D 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7900A5DBC7P5 FE
2 H4386T 2
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1010Z FE
3 N1124A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR10(M10 P=0.75) FE
4 N1123A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR8(M8 P=0.75) FE
5 H44512 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1680HH FE
6 H4391A 1
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1520Z FE
7 H4296A 2
WASHER, THRUST
ﾜｯｼｬ ｽﾗｽﾄ AS1629 FE
8 H4297A 2
WASHER, THRUST
ﾜｯｼｬ ｽﾗｽﾄ AS1831 FE
9 H4300A 1
BEARING, THRUST
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1629 FE
10 H4301A 1
BEARING, THRUST
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1831 FE
11 GPK0880 1 NUT ﾅｯﾄ FE
12 H5066A 4
BALL, STEEL
ﾎﾞｰﾙ ｽﾁｰﾙ 4M/M FE
13 DCPA0070 2 PIN, LOCATING ﾋﾟﾝ 位置決め FE
14 DCPM0090 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
15 DCPM0100 1 COLLAR ｶﾗｰ FE
16 DCPM0110 1 COLLAR ｶﾗｰ FE
17 DCPM0140 1 COLLAR ｶﾗｰ FE
18 DCPM0150 1 COLLAR ｶﾗｰ FE
19 DCPM0161 1 FLANGE ﾌﾗﾝｼﾞ FE
20 DCPM0220 1 SHAFT ｼｬﾌﾄ FE
21 DCPM0230 2 COLLAR ｶﾗｰ CO
22 DCPM0320 1 COLLAR ｶﾗｰ FE
23 DCPM0331 1 BKT, ADJUSTING ＢＫＴ 調整 FE
23.1 H5304A 2 BOLT, HEX SOCKET ボルト 六角穴 M05X025 FE
24 DCPM0340 2 SCREW, ADJUSTING ﾈｼﾞ 調整 FE
25 DCPM0350 1 BKT, ADJUSTING BKT 調整 FE
26 DCPM0360 2 KEY, POSITIONING ｷｰ 位置決め FE
27 DCPM0380 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
28 DCPM0390 2 BLOCK ﾌﾞﾛｯｸ FE
29 DCPM0401 1 BKT BKT FE
30 DCPM0420 1 SHAFT ｼｬﾌﾄ FE 注1.Note.1
31 DCPM0470 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ ZB3527 OT 注1.Note.1
32 DCPM0052 1 BKT BKT FE
33 DGPM0010 1 BKT BKT FE
34 DCPM0210 1 FLANGE ﾌﾗﾝｼﾞ FE
35 DCPM0490 1 RING ﾘﾝｸﾞ FE
36 DCPM0311 4 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板 FE
CP-743E PARTS LIST
