23.3.DEVICE TABLE(SD) 23.3.デバイステーブル(SD) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考 No. Drg.No. & Code No. QTY Description Rating Materials Remarks 1 DGSD0101 1 GUIDE ｶﾞｲﾄﾞ FE 2 DGSD0111 1 GUIDE ｶﾞｲﾄﾞ FE 3 DGSD0143 1 COVER, SI…
190

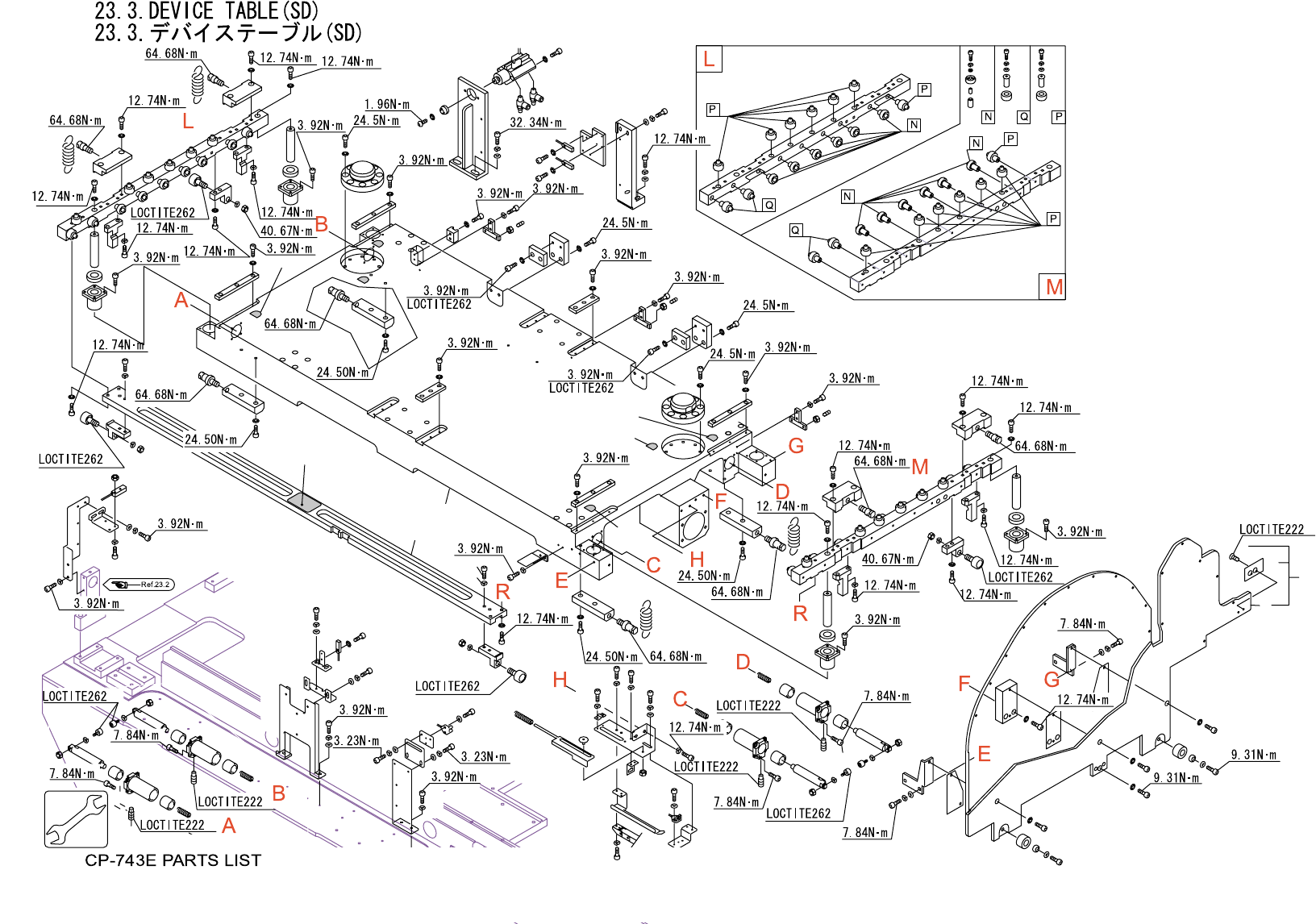

23.3.DEVICE TABLE(SD)
23.3.デバイステーブル(SD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DGSD0101 1 GUIDE ｶﾞｲﾄﾞ FE
2 DGSD0111 1 GUIDE ｶﾞｲﾄﾞ FE
3 DGSD0143 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ OT
4 DCSD1030 4 ROLLER ﾛｰﾗ FE
5 DGSD0300 1 BKT BKT FE
6 DGSD0310 1 BKT BKT FE
7 DGSD5751 12 COLLAR ｶﾗｰ FE
8 R5001M 12 ROLLER ﾛｰﾗ EB-20 OT
9 DGSD1020 1 BKT BKT FE
10 DGSD0380 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
11 DGSD0411 1 BKT BKT FE
12 DGSD0420 1 BKT, SW BKT SW FE
13 DGSD5742 12 COLLAR ｶﾗｰ OT
14 DGSD0451 1 BKT BKT FE
15 DGSD0611 4 BKT BKT FE
16 DGSD0641 2 BKT BKT FE
17 DGSD0651 1 BKT BKT FE
18 DGSD0660 4 SHAFT ｼｬﾌﾄ OT
19 DGSD0690 2 BLOCK, STOPPER ﾌﾞﾛｯｸ ｽﾄｯﾊﾟ FE
20 DGSD0700 2 STOPPER ｽﾄｯﾊﾟ PL
21 DGSD0710 2 COLLAR ｶﾗｰ FE
22 DGSD0751 4 SPRING ｽﾌﾟﾘﾝｸﾞ FE
23 DGSD0870 1 BKT, SW BKT SW FE
24 DGSD0880 1 BKT, SW BKT SW FE
25 DGSD0921 1 BKT, SW BKT SW FE
26 ADGSD8015 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ OT
27 DGSD5731 12 PIN ﾋﾟﾝ FE
28 DCSD0350 2 STOPPER ｽﾄｯﾊﾟ PL
29 DCSD0360 2 PIN ﾋﾟﾝ FE
30 DCSD0370 1 GUIDE ｶﾞｲﾄﾞ FE
31 DCSD0561 4 HOOK ﾌｯｸ FE
32 DCSD0571 4 HOOK ﾌｯｸ FE
33 DCSD0580 1 PIN ﾋﾟﾝ FE
34 DCSD0590 1 STOPPER ｽﾄｯﾊﾟ FE
35 DCSD0651 1 BKT BKT FE
36 DCSD0680 4 FLANGE ﾌﾗﾝｼﾞ FE
37 DCSD0690 4 SHAFT ｼｬﾌﾄ FE
CP-743E PARTS LIST
191
23.3.DEVICE TABLE(SD)
23.3.デバイステーブル(SD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
38 DCSD0710 4 HOOK, SPRING ﾌｯｸ ｽﾌﾟﾘﾝｸﾞ FE
39 DCSD0720 4 HOOK, SPRING ﾌｯｸ ｽﾌﾟﾘﾝｸﾞ FE
40 DCSD0760 4 STOPPER ｽﾄｯﾊﾟ PL
41 DCSD0800 4 SCREW, SET ﾈｼﾞ 止め FE
42 DCSD0820 4 SPRING ｽﾌﾟﾘﾝｸﾞ FE
43 DCSD0830 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ OT
44 DGSD1011 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
45 DCSD0871 14 ROLLER ﾛｰﾗ PL
46 DCSD0881 18 PIN ﾋﾟﾝ FE
47 DCSD0891 4 SHIM ｼﾑ FE 注1.Note.1 t=7.00
48 DCSD1080 1 PLATE ﾌﾟﾚｰﾄ PL
50 DCSD0622 3 PLATE ﾌﾟﾚｰﾄ FE
51 K5342W 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-08S(ｼﾛ) OT
52 S4045F 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX871A OT
53 S31147 3 SW, PROXIMITY SW 近接 APM-D3A1-05 OT
54 H4429H 4
BEARING, BALL
ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LMK16UU FE
55 K10911 4 CAM FOLLOWER ｶﾑﾌｫﾛｱ CF10-A OT
56 K1108H 4 CAM FOLLOWER ｶﾑﾌｫﾛｱ CF4-A OT
57 S30203 1 SPRING ｽﾌﾟﾘﾝｸﾞ WR6-60 FE
58 DCSD1020 1 BKT BKT FE
59 DGSD5910 1 TABLE ﾃｰﾌﾞﾙ AL
61 DGSD5111 1 BKT BKT FE
63 DGSD5141 1 BKT BKT FE
64 DGSD5150 1 DOG ﾄﾞｯｸﾞ FE
66 DGSD5240 1 BKT, SW BKT SW FE
67 DGSD5280 1 PIN, LOCATING ﾋﾟﾝ 位置決め FE
68 DGSD5290 1 PIN, LOCATING ﾋﾟﾝ 位置決め FE
69 DGSD5350 1 BKT, SENSOR BKT ｾﾝｻ FE
82 DGSD5530 1 BKT BKT AL
87 DGSD5590 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
88 DGSD5600 1 DOG ﾄﾞｯｸﾞ FE
89 DGSD5610 4 SHIM ｼﾑ FE 注2.Note.2 t=7.00
90 DGSD5700 1 PLATE, SW ﾌﾟﾚｰﾄ SW FE
93 K41502 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ TKP0130-06R20-102L-N OT
99 H30632 8 BUSHING ﾌﾞｼｭ SPB-162220 OT
100 S3148L 1 SW, PHOTOELECTRIC SW 光電 HPJ-D21-L05 OT
101 H5269A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2.6X5L FE
CP-743E PARTS LIST
192
