CP-743E-04 PART LIST - 第199页
195

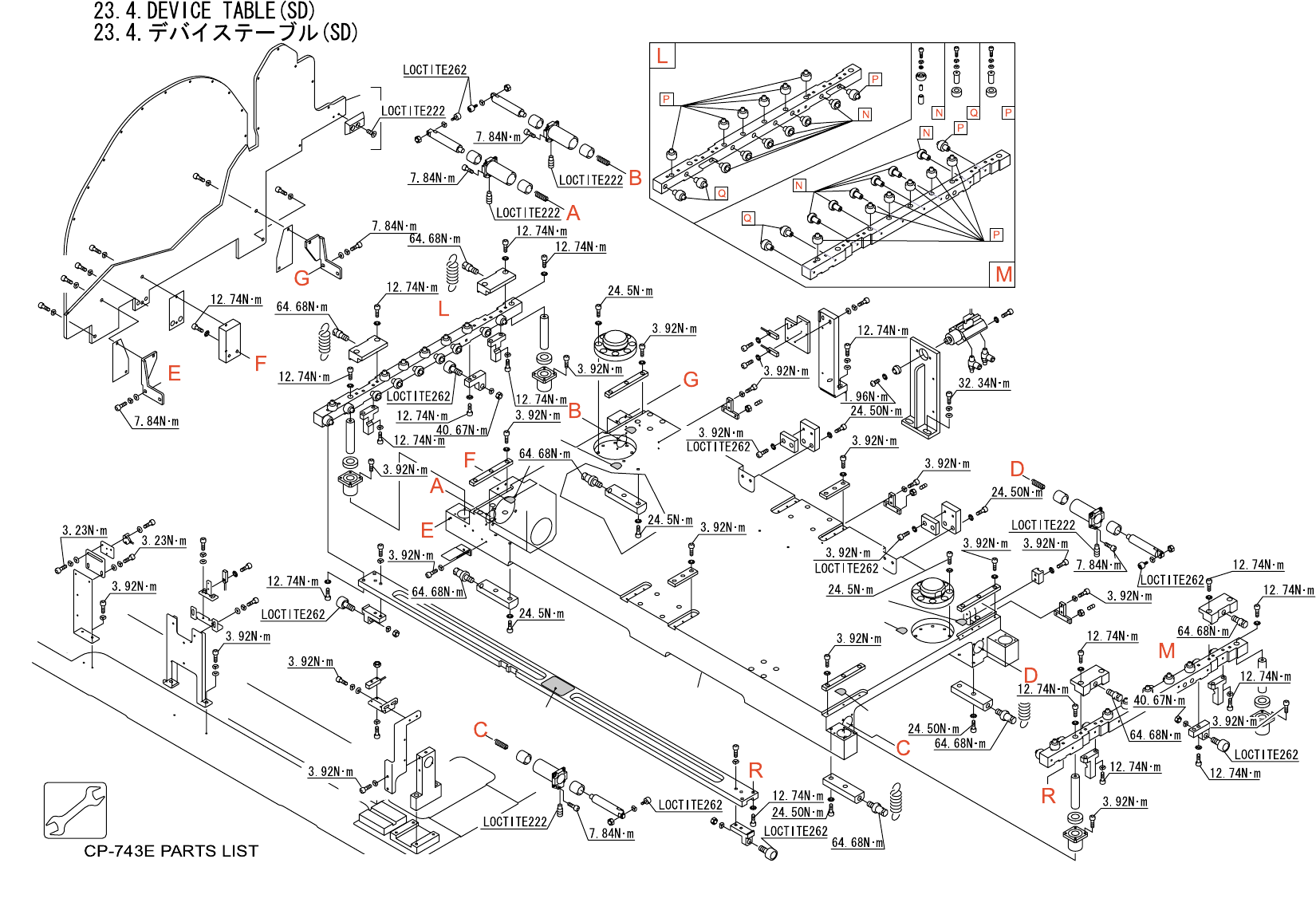

23.3.DEVICE TABLE(SD)
23.3.デバイステーブル(SD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
145 K5257A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M4X8L FE
146 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7 FE
148 N1091T NUT, HEX ﾅｯﾄ 六角 M10 P=1.25 FE
149 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L FE
150 K5359E
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L FE
151 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
152 WWM0152 6 SEAL ｼｰﾙ PL Ref.31.3
153 DGWM0100 1 SEAL ｼｰﾙ PL Ref.31.3
154 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
155 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
156 H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L FE
157 W1020T
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2.6M/M FE
158 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X25L FE
159 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L FE
160 N1076A NUT, HEX ﾅｯﾄ 六角 M3 P=0.5 FE
161 DGSD0990 2 SPACER ｽﾍﾟｰｻ AL
162
DGSD1000
1
SPACER
ｽﾍﾟｰｻ
AL
注1.(選択部品)DCSD0901(t=7.01),DCSD0911(t=7.02),DCSD0921(t=7.03),DCSD0931(t=6.99),DCSD0941(t=6.98),DCSD0951(t=6.97)
DCSD1040(t=6.95),DCSD1050(t=6.96),DCSD1060(t=7.04),DCSD1070(t=7.05)
Note.1:(Specified parts selection)DCSD0901(t=7.01),DCSD0911(t=7.02),DCSD0921(t=7.03),DCSD0931(t=6.99),DCSD0941(t=6.98),DCSD0951(t=6.97)
DCSD1040(t=6.95),DCSD1050(t=6.96),DCSD1060(t=7.04),DCSD1070(t=7.05)
注2.(選択部品)DCSD5620(t=7.01),DCSD5630(t=7.02),DCSD5640(t=7.03),DCSD5650(t=6.99),DCSD5660(t=6.98),DCSD5670(t=6.97)
DGSD5780(t=6.95),DGSD5790(t=6.96),DGSD5800(t=7.04),DGSD5810(t=7.05)
Note.2:(Specified parts selection)DCSD5620(t=7.01),DCSD5630(t=7.02),DCSD5640(t=7.03),DCSD5650(t=6.99),DCSD5660(t=6.98),DCSD5670(t=6.97)
DGSD5780(t=6.95),DGSD5790(t=6.96),DGSD5800(t=7.04),DGSD5810(t=7.05)
CP-743E PARTS LIST
