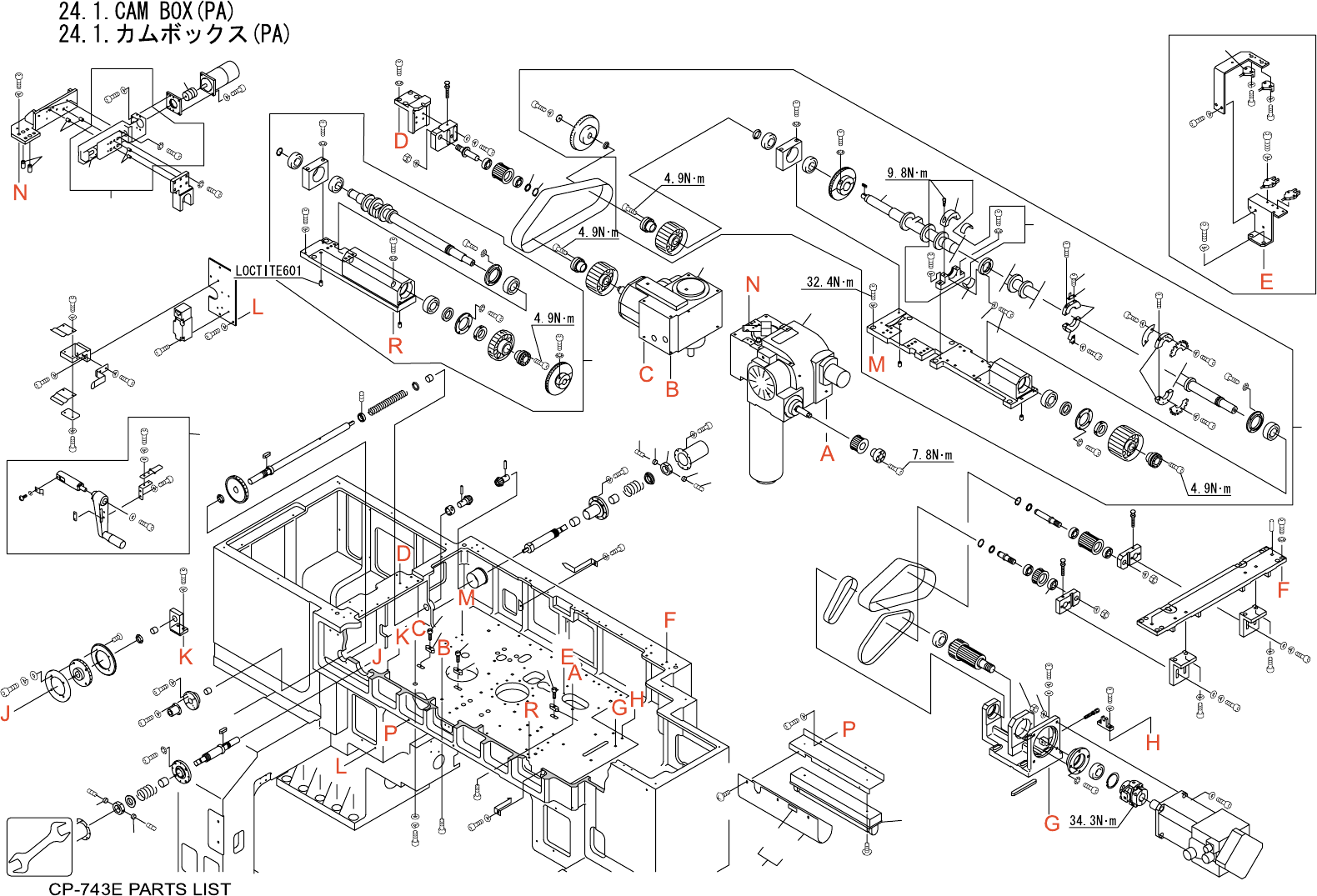

24.1.CAM BOX(PA)
24.1.カムボックス(PA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DGPA6191 1 PULLEY ﾌﾟｰﾘ OT
2 DCPA0221 1 PULLEY ﾌﾟｰﾘ OT
3 DCPA0201 1 PULLEY ﾌﾟｰﾘ OT
4 DCPA0211 2 PULLEY ﾌﾟｰﾘ OT
5 DCPA0190 1 PULLEY ﾌﾟｰﾘ FE
6 DCPA0290 4 RING, LOCKING ﾘﾝｸﾞ 締結 OT
7 DGPA0011 1 INDEX ｲﾝﾃﾞｯｸｽ OT
8 DCPA0021 1 INDEX ｲﾝﾃﾞｯｸｽ OT
9 H30762 1 BUSH ﾌﾞｯｼｭ OT
10 DCPA3040 1 PULLEY ﾌﾟｰﾘ FE
11 DCPA3030 1 PULLEY ﾌﾟｰﾘ FE
12 DCPA1260 1 PULLEY ﾌﾟｰﾘ FE
13 H4578A 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 580-5GT-15 OT
14 H4579A 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 710-5GT-55 OT
15 H4577A 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 360-5GT-25 OT
16 H4580A 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 960-5GT-40 OT
17 DCPA1080 1 SCALE ﾒﾓﾘ AL
18 K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L FE
19 DCPA0421 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
20 DCPA1100 1 NAMEPLATE, ARROW 銘板 矢印 FE
21 DCPA1110 1 NAMEPLATE, ARROW 銘板 矢印 FE
22 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L FE
23 DCPA0480 2 COLLAR ｶﾗｰ FE
24 DCPA1070 1 DOG ﾄﾞｯｸﾞ FE
25 DCPA1620 1 COLLAR ｶﾗｰ FE
26 DCPA1601 1 COLLAR ｶﾗｰ FE
27 DCPA1590 1 COLLAR ｶﾗｰ FE
28 ADCPA8050 1 SHAFT, CAM ｼｬﾌﾄ ｶﾑ OT
29 DCPA0370 3 BOLT ﾎﾞﾙﾄ FE
30 DCPA1490 2 KEY ｷｰ FE
31 DCPA1551 1 HOUSING ﾊｳｼﾞﾝｸﾞ FE
32 DCPA1561 1 COVER ｶﾊﾞｰ FE
33 DCPA0070 4 PIN, LOCATING ﾋﾟﾝ 位置決め FE
34 ADGPA8101 1 SHAFT, CAM ｼｬﾌﾄ ｶﾑ OT
36 DCPA1170 1 RING ﾘﾝｸﾞ AL
37 DCPA1060 1 DOG ﾄﾞｯｸﾞ FE
38 DCPA1430 1 BKT BKT FE
