243

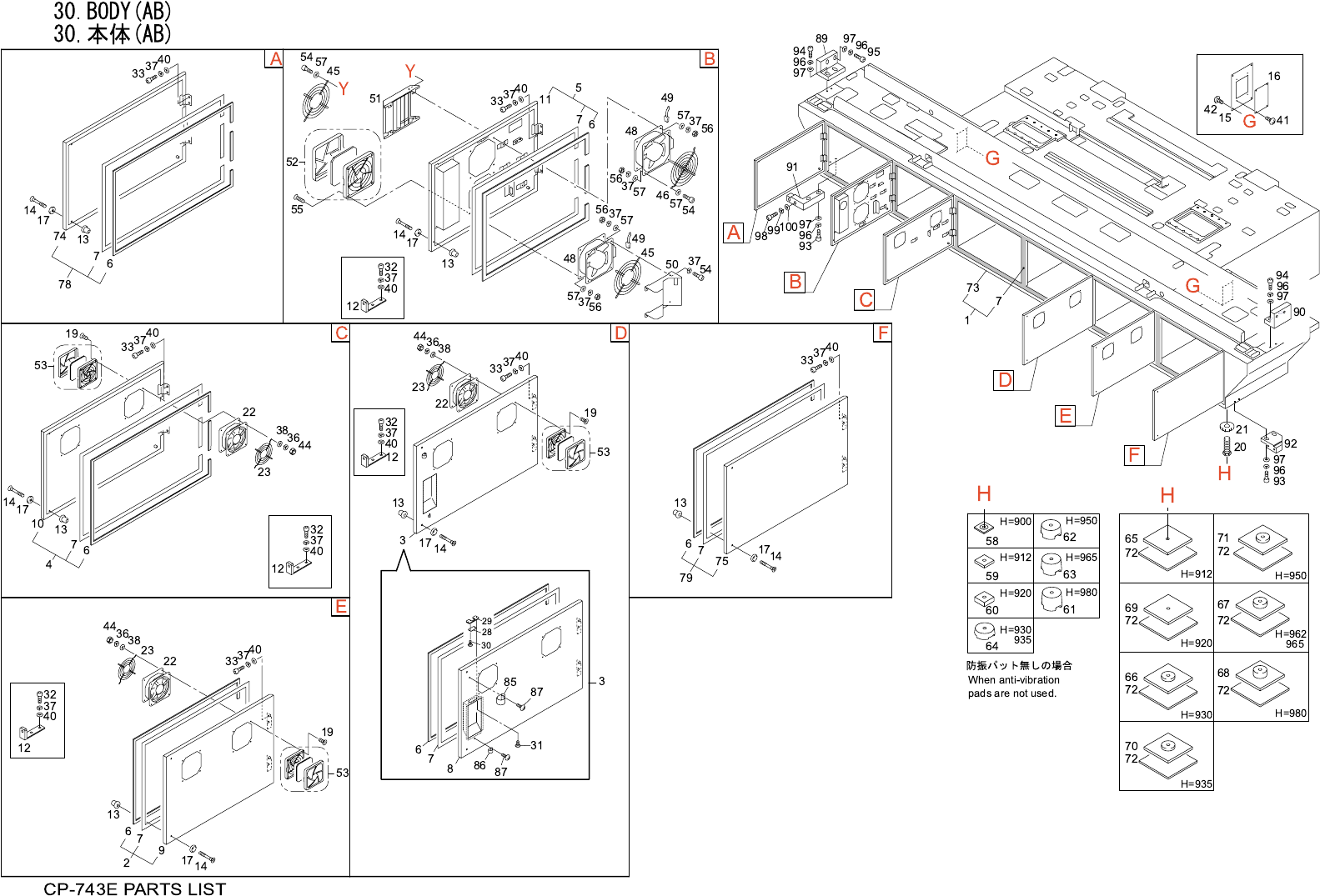

30.BODY(AB)
30.本体(AB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 ADGAB8538 1 BODY 本体 OT
2 ADGAB8191 1 COVER ｶﾊﾞｰ OT
3 ADGAB8181 1 COVER ｶﾊﾞｰ OT
4 ADGAB8171 1 COVER ｶﾊﾞｰ OT
5 ADGAB8043 1 COVER ｶﾊﾞｰ OT
6 K1152K 18 GASKET ｶﾞｽｹｯﾄ E02S130055B(1M) OT
7 T4047B (1) TAPE ﾃｰﾌﾟ E052020A(20M/巻) OT
8 DGAB0590 1 COVER ｶﾊﾞｰ FE
9 DGAB0570 1 COVER ｶﾊﾞｰ FE
10 DGAB0560 1 COVER ｶﾊﾞｰ FE
11 DGAB0054 1 COVER ｶﾊﾞｰ FE
12 DGAB0041 4 BKT BKT FE
13 DCAB0090 12 COLLAR ｶﾗｰ FE
14 DCAB0101 12 BOLT, COUNTERSUNK ﾎﾞﾙﾄ 皿 OT
15 DCAB0110 2 COVER ｶﾊﾞｰ FE
16 DCAB0120 2 COVER ｶﾊﾞｰ FE
17 W10025 12 WASHER ﾜｯｼｬ TL-182-4(No.1414) FE
19 K5170N 24 SCREW, C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M4X040L FE
20 WAB5540 16 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ FE
21 DCAB0131 16 NUT ﾅｯﾄ FE
22 H30120 6 FAN ﾌｧﾝ 109P1224H402 OT
23 K1141T 6
GUARD, FIN
ｶﾞｰﾄﾞ ﾌｨﾝ 109-019C OT
28 DCAB0310 1 PLATE ﾌﾟﾚｰﾄ FE
29 DCAB0242 1 COVER ｶﾊﾞｰ FE
30 K5201E
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M2.6X6L FE
31 K52721
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M3X5L FE
32 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
33 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L HRC34-44 FE
36 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
37 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
38 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) FE
40 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
41 K5208A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X6L FE
42 K5215A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M5X10L FE
44 N1080A
NUT, HEX
ﾅｯﾄ 六角
M4 P=0.7 FE
45 K11413 2
GUARD, FIN
ｶﾞｰﾄﾞ ﾌｨﾝ 109-620 OT
46 K11411 1
GUARD, FIN
ｶﾞｰﾄﾞ ﾌｨﾝ 109-619 OT
CP-743E PARTS LIST
244
30.BODY(AB)
30.本体(AB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
48 M5050T 2 MOTOR, FAN ﾓｰﾀ ﾌｧﾝ 109-601 OT
49 H3120T 2 PLUG ﾌﾟﾗｸﾞ 489-086(ﾅｶﾞｻ2.1M) OT
50 DGAB0070 1 DUCT ﾀﾞｸﾄ FE
51 DCAB0190 1 COVER, FAN ｶﾊﾞｰ ﾌｧﾝ FE
52 H3018R 1 FILTER ﾌｨﾙﾀ FL-16 OT
53 H3018T 6 FILTER ﾌｨﾙﾀ FL-12 OT
54 H5302A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X20L FE
55 H5170R SCREW, HEX C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M5X20L FE
56 N1082A
NUT, HEX
ﾅｯﾄ 六角
M5 P=0.8 FE
57 W1050A WASHER, FLAT ﾜｯｼｬ 平 5M/MX1.0X10(1W-5) FE
58 DCAB0370 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=900)
59 DCAB0380 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=912)
60 BB43880 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=920)
61 BB42950 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=980)
62 GGA8030 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=950)
63 GGA8040 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=965)
64 GGA8060 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=930,935)
65 DCAB0390 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=912)
66 DCAB0400 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ FE (H=930)
67 DCAB0410 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ FE (H=962,965)
68 DCAB0420 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ FE (H=980)
69 GXA2071 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ FE (H=920)
70 WAB0601 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ FE (H=935)
71 GXA2121 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ FE (H=950)
72 WAB0721 16 PAD, ANTI-VIBRATION ﾊﾟｯﾄ 防振 KHS-90 OT 240X480X12t
73 DGAB5019 1 BODY 本体 FE
74 DGAB5020 1 COVER ｶﾊﾞｰ FE
75 DGAB5030 1 COVER ｶﾊﾞｰ FE
76 DGAB6030 2 SEAL ｼｰﾙ OT
78 ADGAB8561 1 COVER ｶﾊﾞｰ OT
79 ADGAB8571 1 COVER ｶﾊﾞｰ OT
85 H1137E 1 BAND, TIE ﾊﾞﾝﾄﾞ 結束 AB-14N OT option
86 H1137D 1 BAND, TIE ﾊﾞﾝﾄﾞ 結束 AB-4N OT option
87 K5210A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X10L FE
89 DCAB0330 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ FE option
90 DCAB0340 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ FE option
91 DGAB0520 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ FE option
CP-743E PARTS LIST
245
