CP-743E-04 PART LIST - 第275页
271
33.2.PNEUMATIC CIRCUIT DIAGRAM(PI)
33.2.エアー配管図(PI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DCPI0560 1 VALVE ﾊﾞﾙﾌﾞ QUBEｴｱﾙﾌﾞﾘｹｰﾀ L55-02-Z1 OT
2 Y3071T 2 UNION ﾕﾆｵﾝ KQ2T08-06 OT
3 Y3082Z 2 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H04-06 OT
4 DCPI0520 1 SILENCER ｻｲﾚﾝｻ CM-03-B+F6-02ML OT
5 Y3081A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L10-03S OT
6 . 1 ELBOW ｴﾙﾎﾞ F6-02ML OT
7 T10137 1 TANK ﾀﾝｸ PP2044A OT
8 Y3071Z 1 UNION ﾕﾆｵﾝ KQ2T08-10 OT
9 K5586A 5 CONNECTOR ｺﾈｸﾀ KQ2U08-00 OT
10 Y3071H 1 UNION ﾕﾆｵﾝ KQ2T08-00 OT
11 ADCPA8111 1 CYLINDER ｼﾘﾝﾀﾞ OT
12 ADCPA8141 1 CYLINDER ｼﾘﾝﾀﾞ OT
13 ADCPA8121 1 CYLINDER ｼﾘﾝﾀﾞ OT
14 ADCPA8131 1 CYLINDER ｼﾘﾝﾀﾞ OT
15 . (8) UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ 3109 08 10JP OT
16 Y3049W 4 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S(ｼﾛ) OT
17 K5339W 1 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1311F-M5-06(ｼﾛ) OT
18 K5338D 1 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1211F-M5-06(ｼﾛ) OT
19 Y3075A 1 UNION ﾕﾆｵﾝ KQ2U06-00 OT
20 H1068C 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL PCC235-M5-D24SP-FJK OT
21 A3034A 1 PLUG ﾌﾟﾗｸﾞ PT1/8 OT
22 A4146A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ EL8-PT1/4 OT
23 A4145A 5 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ EL6-PT1/8 OT
24
WPI0020
1
TERMINAL
ﾀｰﾐﾅﾙ
AL
CP-743E PARTS LIST
270
271

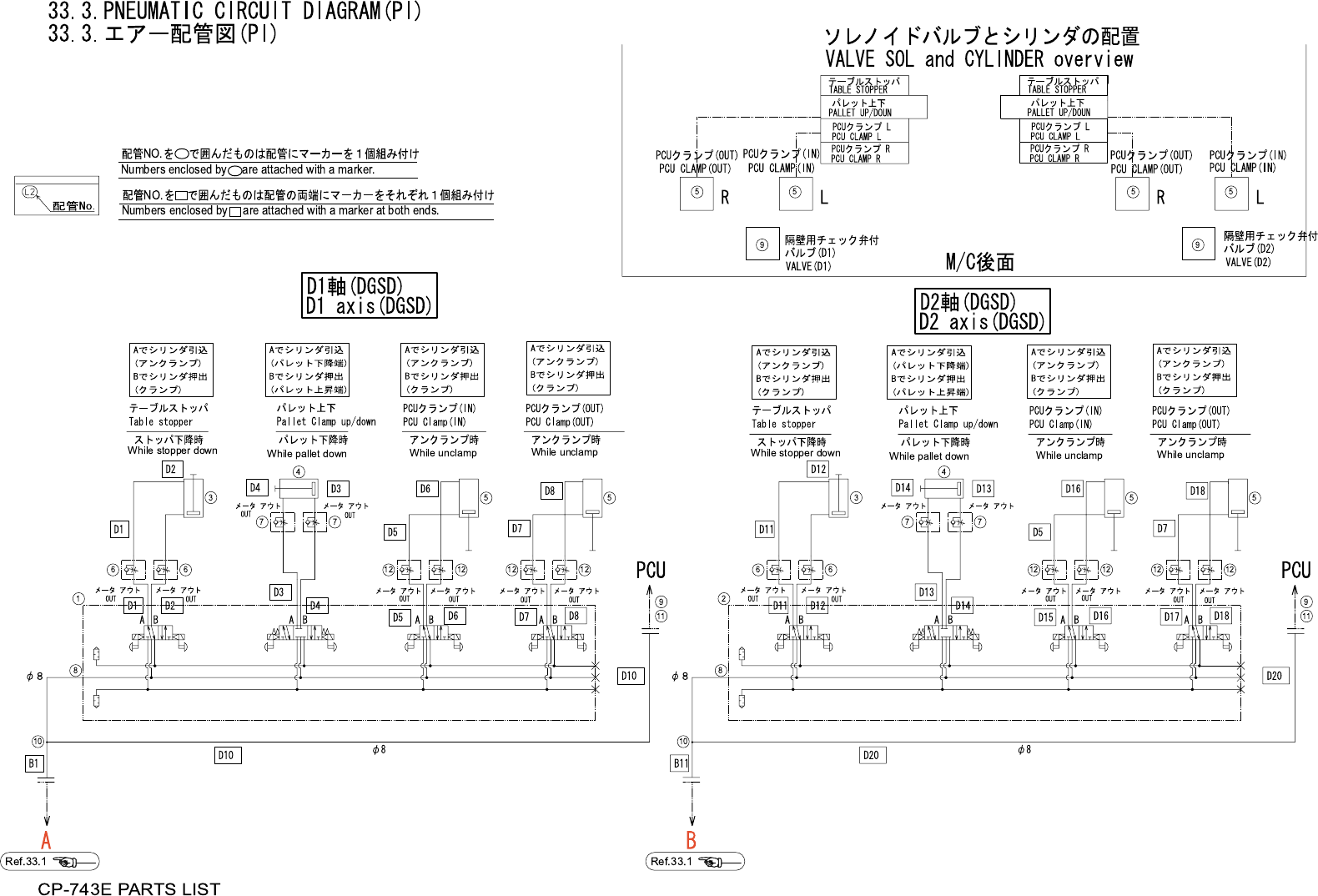

33.3.PNEUMATIC CIRCUIT DIAGRAM(PI)
33.3.エアー配管図(PI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DGSD0160 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SS5X5-41P-X240 OT
2 DGSD0170 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SS5X5-41P-X239 OT
3 DGSD0830 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ RSDQB20D-S3685-15 OT
4 DGSD5190 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDG1DA100-54963-80 OT
5 S2110K 4 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2B50-15D-A93VL OT
6 K5342W 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-08S(ｼﾛ) OT
7 K5348K 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS3001F-08(ｼﾛ) OT
8 Y30812 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2W08-99 OT
9 H1024K 2 VALVE ﾊﾞﾙﾌﾞ 80-IN-334-61 OT
10 Y3071T 2 UNION ﾕﾆｵﾝ KQ2T08-06 OT
11 Y3083A 2 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H06-01S OT
12
K5347Y
8
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ
AS2301F-02-08S(ｼﾛ)
OT
CP-743E PARTS LIST
272
