CP-743E-04 PART LIST - 第305页
301
300
301

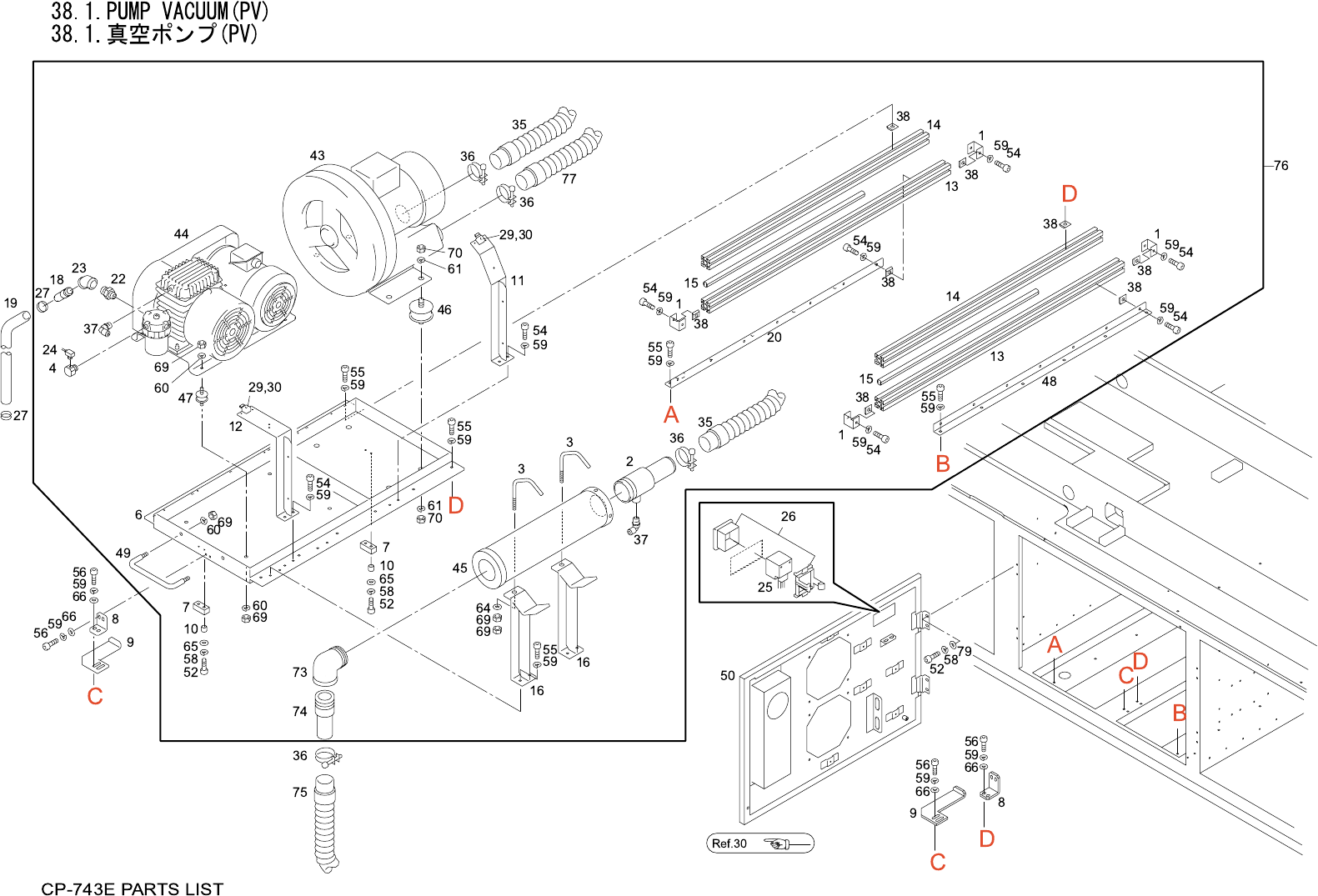

38.1.PUMP VACUUM(PV)
38.1.真空ポンプ(PV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DCPV0110 4 RETAINER, RAIL 押え ﾚｰﾙ FE
2 DCPV0800 1 PIPE ﾊﾟｲﾌﾟ FE
3 DCPV0150 2 BOLT, CLAMP ﾎﾞﾙﾄ ｸﾗﾝﾌﾟ FE
4 DCPV0130 1 BUSHING ﾌﾞｯｼｭ FE
6 DGPV0011 1 BASE, SLIDE ﾍﾞｰｽ ｽﾗｲﾄﾞ FE
7 DGPV0090 2 STOPPER ｽﾄｯﾊﾟ PL
8 DGPV0110 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
9 DGPV0120 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
10 DGPV0100 4 COLLAR ｶﾗｰ FE
11 DGPV0030 1 BKT BKT FE
12 DGPV0040 1 BKT BKT FE
13 DCPV0070 2 FRAME ﾌﾚｰﾑ Type MB1-1 OT
14 DCPV0080 2 FRAME ﾌﾚｰﾑ Type MB1-1 OT
15 DCPV0090 2 SLIDER ｽﾗｲﾀﾞ ﾌﾟﾗｽﾁｯｸｽﾗｲﾄﾞ OT
16 DGPV0051 2 BKT BKT FE
18 GXZ4050 1 VACUUM PORT 吸気ﾎﾟｰﾄ FE
19 DCPV0120 1 HOSE ﾎｰｽ ﾋﾟｱﾉ線入ﾎｰｽ OT
20 DGPV0020 1 BKT BKT FE
22 N2137A 1 NIPPLE ﾆｯﾌﾟﾙ RNI 1/2X3/8 OT
23 A4049X 1 ELBOW ｴﾙﾎﾞ BL45 1/2 OT
24 S31495 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ AP-41 OT
25 A1038Z 2 AMPLIFIER ｱﾝﾌﾟ AP-40ZA OT
26 H1314H 2 PANEL ﾊﾟﾈﾙ OP-32908 OT
27 H1153A 2
BAND, HOSE
ﾊﾞﾝﾄﾞ ﾎｰｽ 27ﾜｲﾔ OT
29 . 2 TERMINAL BLOCK 端子台 DSG1.5/2 WITHBB TN00831 OT
30 H2002Z 2 FUSE ﾋｭｰｽﾞ MTG4A50084C OT
35 DCPV0790 1 HOSE ﾎｰｽ φ50X1.0M(ｶﾌｽﾂｷ) OT
36 H11543 4 BAND, HOSE ﾊﾞﾝﾄﾞ ﾎｰｽ ﾊｲｸﾞﾘｯﾌﾟ 2X φ45∼60 OT
37 Y3079X 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L08-03S OT
38 N1012G 34 NUT ﾅｯﾄ B32-60 FE
43 S52121 1 BLOWER, VORTEX 送風器 渦流 2BH1-500-7AH21-G51 OT
44 H5447Z 1 PUMP, VACUUM ﾎﾟﾝﾌﾟ ﾊﾞｷｭｰﾑ KHA750A-306-G1 OT
45 T1063F 1 DUCT ﾀﾞｸﾄ NPS50 OT
46 DCPV0020 4 DAMPER ﾀﾞﾝﾊﾟ KA-60 OT
47 DCPV0030 4 DAMPER ﾀﾞﾝﾊﾟ KA-30 OT
48 DCPV0100 1 BKT BKT FE
49 T5003X 1 HANDLE 取手 THA-240(No.4) OT
CP-743E PARTS LIST
