CP-743E-04 PART LIST - 第309页
305
304
305

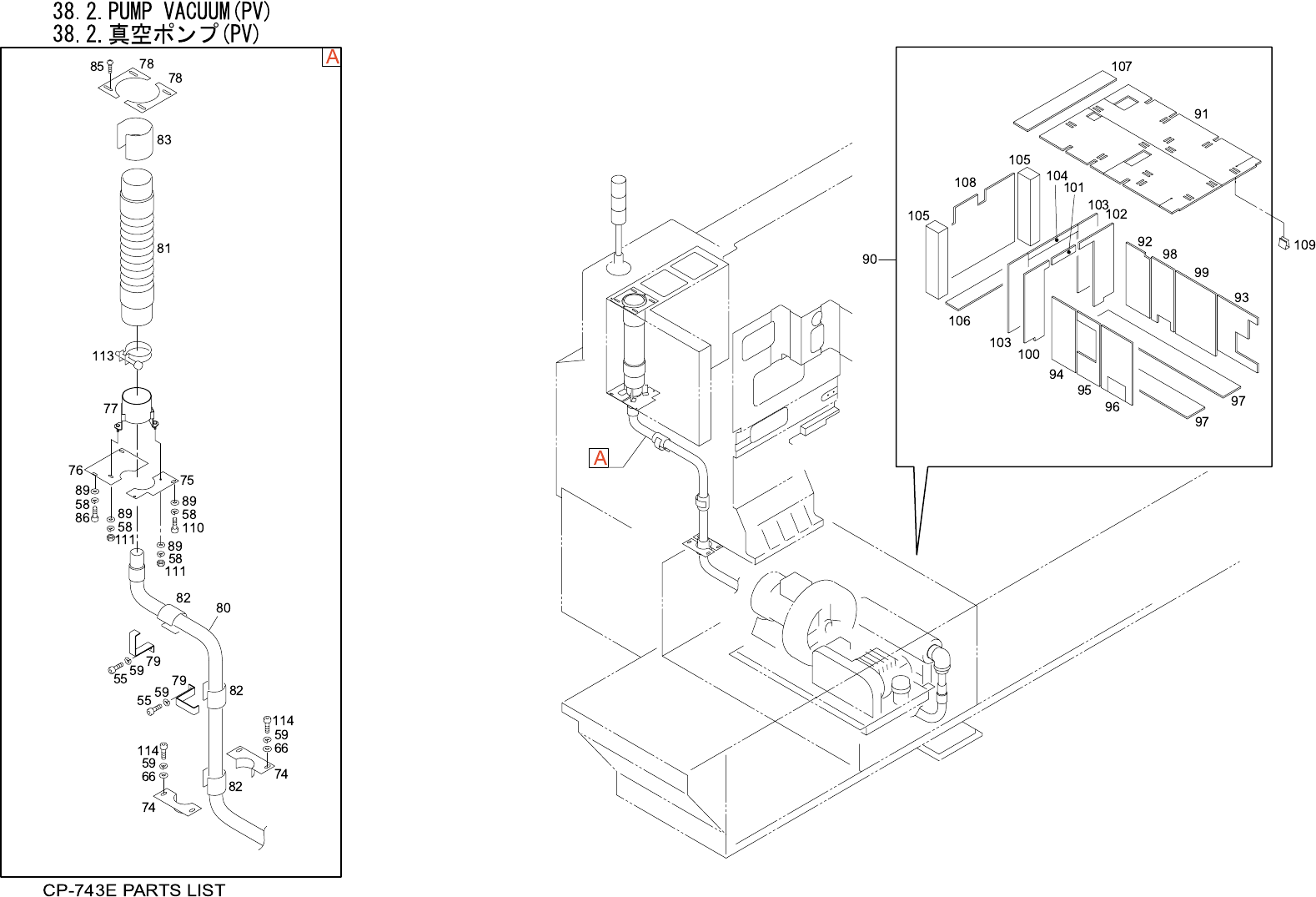

38.2.PUMP VACUUM(PV)
38.2.真空ポンプ(PV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
55 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L FE
58 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
59 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
66 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
74 DCPV0890 2 GUIDE ｶﾞｲﾄﾞ FE
75 DGPV0332 1 PLATE ﾌﾟﾚｰﾄ FE
76 DGPV0341 1 PLATE ﾌﾟﾚｰﾄ FE
77 DGPV0320 1 DUCT ﾀﾞｸﾄ FE
78 DCPV0251 2 PLATE ﾌﾟﾚｰﾄ FE
79 DCPV0851 2 BKT BKT FE
80 DCPV0820 1 HOSE ﾎｰｽ φ50X3.2M(ｶﾌｽﾂｷ) OT
81 DCPV0283 1 HOSE ﾎｰｽ φ75(350mm)(ｶﾌｽﾂｷ) OT
82 DCPV0860 3 PACKING ﾊﾟｯｷﾝ CR25°ﾃｰﾌﾟ付 OT
83 DCPV0300 1 PACKING ﾊﾟｯｷﾝ CR25°ﾃｰﾌﾟ付 OT
85 K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L FE
89 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
90 ADGPV8083 1 PACKING ﾊﾟｯｷﾝ OT
91 DGPV0512 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
92 DGPV0521 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
93 DGPV0531 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
94 DGPV0541 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
95 DGPV0551 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
96 DGPV0562 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
97 DGPV0571 2 PACKING ﾊﾟｯｷﾝ S-PE70 OT
98 DGPV0581 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
99 DGPV0591 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
100 DGPV0601 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
101 DGPV0611 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
102 DGPV0621 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
103 DGPV0631 2 PACKING ﾊﾟｯｷﾝ S-PE70 OT
104 DGPV0641 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
105 DGPV0650 2 PACKING ﾊﾟｯｷﾝ S-PE70 OT
106 DGPV0661 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
107 DGPV0671 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
108 DGPV0681 1 PACKING ﾊﾟｯｷﾝ S-PE70 OT
109 K3007Z 11 CLAMPER ｸﾗﾝﾊﾟ ﾀﾞﾌﾞﾙｸﾘｯﾌﾟ№32 OT
110 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
CP-743E PARTS LIST
