CP-743E-04 PART LIST - 第46页

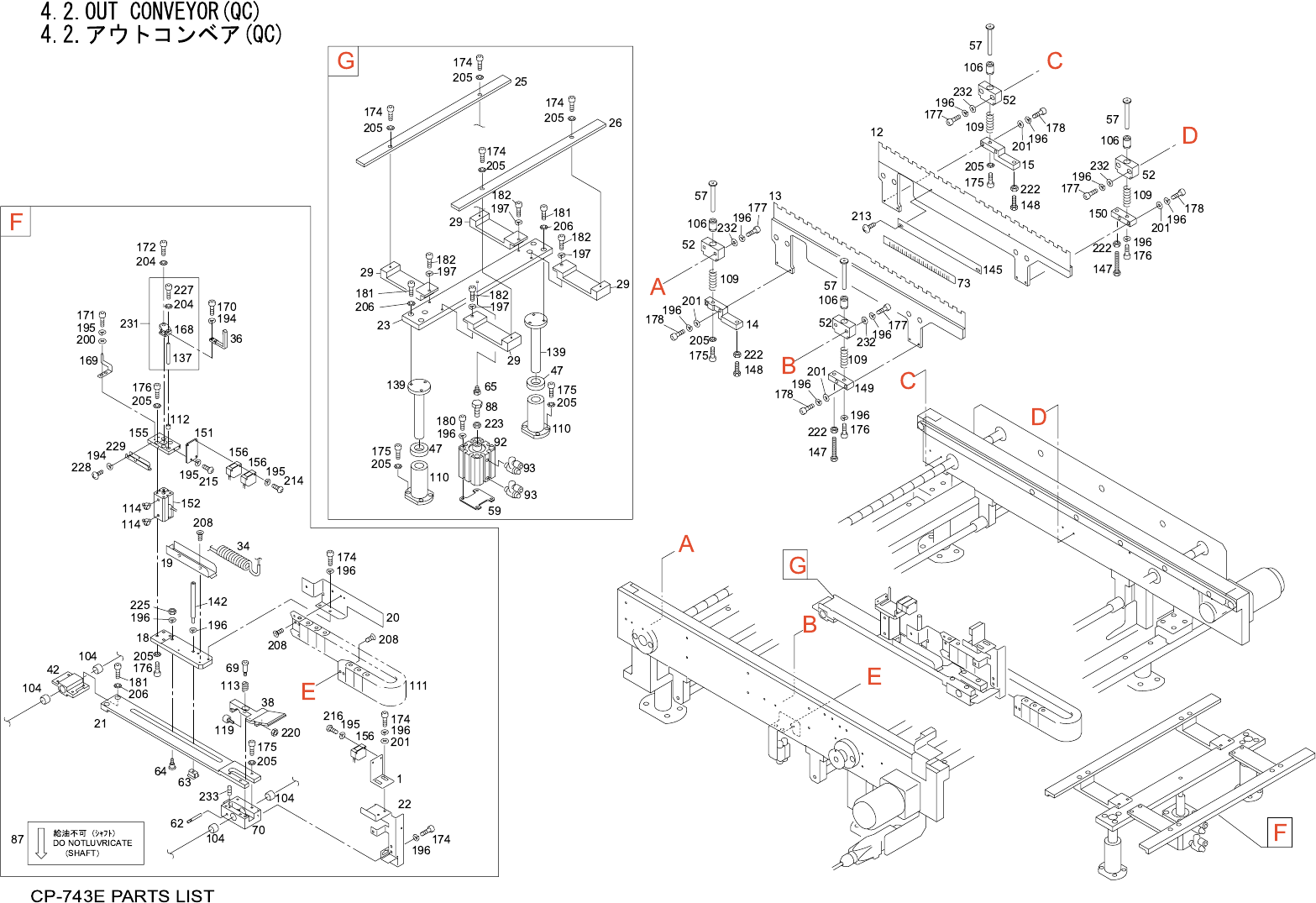

4.2.OUT CONVEYOR(QC)

4.2.アウトコンベア(QC)

番号図番 & ｺｰﾄﾞ番号個数品名規格材質備考

No. Drg.No. & Code No. QTY Description Rating Materials Remarks

1 DGQC3400 1 BKT, SENSOR BKT ｾﾝｻ FE

12 DGQC3420 1 PLATE, LIFTER ﾌﾟﾚｰﾄﾘﾌﾀ FE

13 DGQC3430 1 PLATE, LIFTER ﾌﾟﾚｰﾄﾘﾌﾀ FE

14 DGQC3240 1 BKT BKT FE

15 DGQC3520 1 BKT BKT FE

18 DGQC3760 1 SLIDER ｽﾗｲﾀﾞ FE

19 DGQC3260 1 GUIDE ｶﾞｲﾄﾞ FE

20 DGQC3150 1 BKT, FLEXIBLE TRACK BKT ｹｰﾌﾞﾙﾍﾞｱ FE

21 DGQC3410 1 RAIL ﾚｰﾙ FE

22 DGQC3160 1 BKT BKT FE

23 DGQC3511 1 PLATE, ARM ﾌﾟﾚｰﾄｱｰﾑ AL

25 DGQC3480 1 RAIL ﾚｰﾙ FE

26 DGQC3490 1 RAIL ﾚｰﾙ FE

29 DGQC0931 4 BKT BKT FE

34 DGQC3310 1 CABLE ｹｰﾌﾞﾙ OT

36 DGQC3330 1 STOPPER ｽﾄｯﾊﾟ FE

38 DGQC0660 1 POSITIONING 位置決め AL

42 DCQC0151 1 HOLDER ﾎﾙﾀﾞ FE

47 DCQC3430 2 SPACER ｽﾍﾟｰｻ PL

52 DCQC0420 4 GUIDE ｶﾞｲﾄﾞ FE

57 DCQC0360 4 BAR, GUIDE ﾊﾞｰｶﾞｲﾄﾞ FE

59 DCQC0650 1 SPACER ｽﾍﾟｰｻ FE

62 CSQC0300 1 PIN ﾋﾟﾝ FE

63 CSQC0581 1 GUIDE ｶﾞｲﾄﾞ FE

64 CSQC0591 1 PIN, GUIDE ﾋﾟﾝｶﾞｲﾄﾞ FE

65 CSQC0710 1 LOCATOR 当金 FE

69 CSQC1430 1 PIN ﾋﾟﾝ FE

70 CSQC2643 1 HOLDER ﾎﾙﾀﾞ FE

73 CSQC1101 1 SCALE ｽｹｰﾙ PL

87 CSQC1460 1 NAMEPLATE, SEAL 銘板ｼｰﾙ PL

88 CSQC0860 1 LOCATOR 当金 FE

92 S2210A 1 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ CDAS32X15-ZE202B2 OT

93 K5347W 2

CONTROLLER, SPEED

ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ AS2301F-01-06S OT

104 H30715 4 BUSHING ﾌﾞｼｭ MB1208DU OT

106 H4128Z 4 BEARING ﾍﾞｱﾘﾝｸﾞ SM6UU FE

109 S3020W 4 SPRING ｽﾌﾟﾘﾝｸﾞ WF-12-35 FE

110 H44236 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞﾎﾞｰﾙ SMT16WUU-E-SK FE

CP-743E PARTS LIST
