4.2.OUT CONVEYOR(QC) 4.2.アウトコンベア(QC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考 No. Drg.No. & Code No. QTY Description Rating Materials Remarks 1 DGQC3400 1 BKT, SENSOR BKT ｾﾝｻ FE 12 DGQC3420 1 PLATE, LIFTER ﾌﾟﾚｰﾄ ﾘﾌﾀ FE 13 D…
42

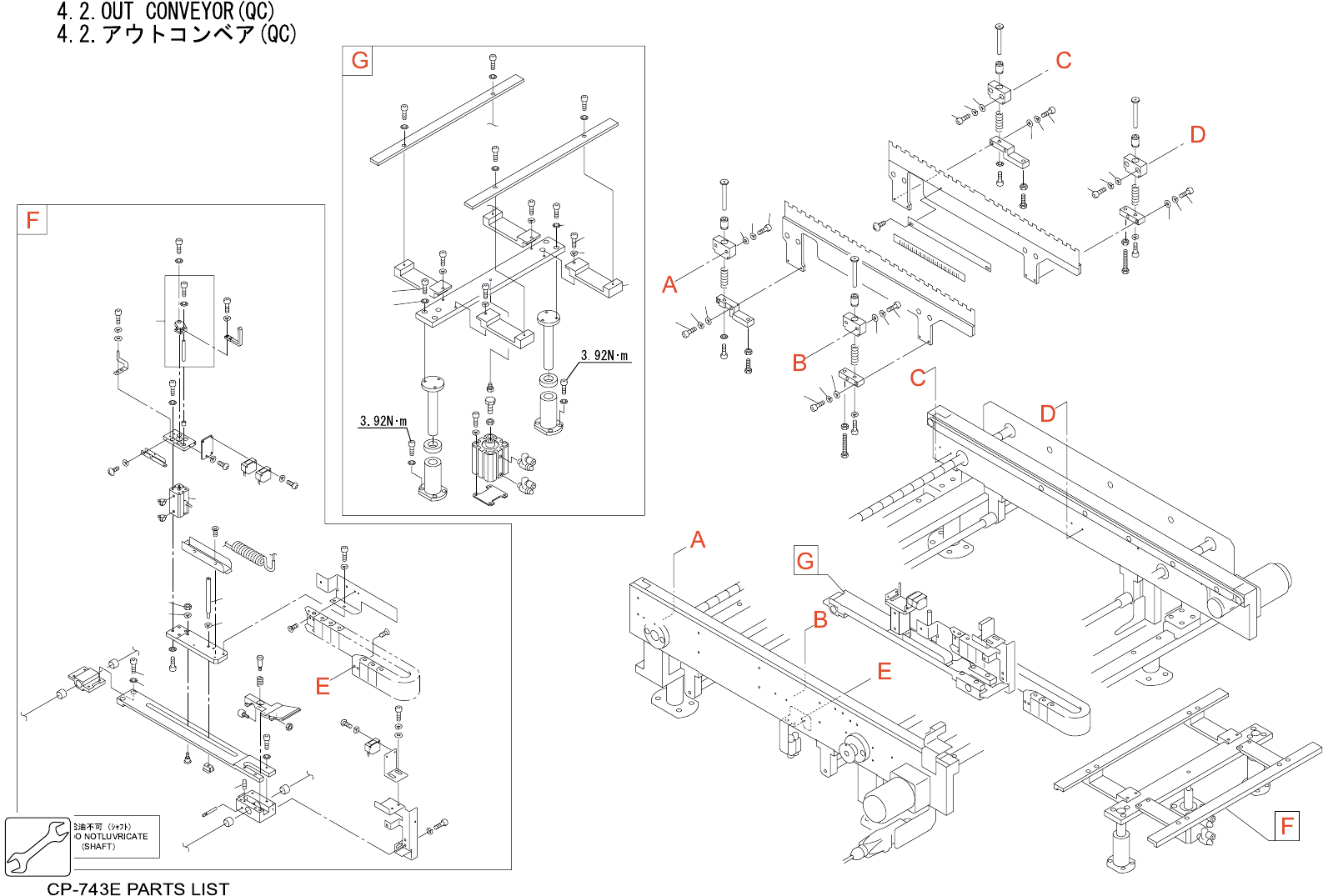

4.2.OUT CONVEYOR(QC)
4.2.アウトコンベア(QC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DGQC3400 1 BKT, SENSOR BKT ｾﾝｻ FE
12 DGQC3420 1 PLATE, LIFTER ﾌﾟﾚｰﾄ ﾘﾌﾀ FE
13 DGQC3430 1 PLATE, LIFTER ﾌﾟﾚｰﾄ ﾘﾌﾀ FE
14 DGQC3240 1 BKT BKT FE
15 DGQC3520 1 BKT BKT FE
18 DGQC3760 1 SLIDER ｽﾗｲﾀﾞ FE
19 DGQC3260 1 GUIDE ｶﾞｲﾄﾞ FE
20 DGQC3150 1 BKT, FLEXIBLE TRACK BKT ｹｰﾌﾞﾙﾍﾞｱ FE
21 DGQC3410 1 RAIL ﾚｰﾙ FE
22 DGQC3160 1 BKT BKT FE
23 DGQC3511 1 PLATE, ARM ﾌﾟﾚｰﾄ ｱｰﾑ AL
25 DGQC3480 1 RAIL ﾚｰﾙ FE
26 DGQC3490 1 RAIL ﾚｰﾙ FE
29 DGQC0931 4 BKT BKT FE
34 DGQC3310 1 CABLE ｹｰﾌﾞﾙ OT
36 DGQC3330 1 STOPPER ｽﾄｯﾊﾟ FE
38 DGQC0660 1 POSITIONING 位置決め AL
42 DCQC0151 1 HOLDER ﾎﾙﾀﾞ FE
47 DCQC3430 2 SPACER ｽﾍﾟｰｻ PL
52 DCQC0420 4 GUIDE ｶﾞｲﾄﾞ FE
57 DCQC0360 4 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
59 DCQC0650 1 SPACER ｽﾍﾟｰｻ FE
62 CSQC0300 1 PIN ﾋﾟﾝ FE
63 CSQC0581 1 GUIDE ｶﾞｲﾄﾞ FE
64 CSQC0591 1 PIN, GUIDE ﾋﾟﾝ ｶﾞｲﾄﾞ FE
65 CSQC0710 1 LOCATOR 当金 FE
69 CSQC1430 1 PIN ﾋﾟﾝ FE
70 CSQC2643 1 HOLDER ﾎﾙﾀﾞ FE
73 CSQC1101 1 SCALE ｽｹｰﾙ PL
87 CSQC1460 1 NAMEPLATE, SEAL 銘板 ｼｰﾙ PL
88 CSQC0860 1 LOCATOR 当金 FE
92 S2210A 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDAS32X15-ZE202B2 OT
93 K5347W 2
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2301F-01-06S OT
104 H30715 4 BUSHING ﾌﾞｼｭ MB1208DU OT
106 H4128Z 4 BEARING ﾍﾞｱﾘﾝｸﾞ SM6UU FE
109 S3020W 4 SPRING ｽﾌﾟﾘﾝｸﾞ WF-12-35 FE
110 H44236 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ SMT16WUU-E-SK FE
CP-743E PARTS LIST
43
4.2.OUT CONVEYOR(QC)
4.2.アウトコンベア(QC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
111 K4131T 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 07.20-018-22-620P OT
112 H4319A 1
BEARING, DRY
ﾍﾞｱﾘﾝｸﾞ ﾄﾞﾗｲ MB0506DU FE
113 S3020Y 1 SPRING ｽﾌﾟﾘﾝｸﾞ WH10-15 FE
114 A4068H 2 ELBOW ｴﾙﾎﾞ M-5ALU-4 OT
119 K1090A 1
CAM FOLLOWER
ｶﾑﾌｫﾛｱ CFS04 OT
137 DGQC0300 1 PIN, WHIRL STOP ﾋﾟﾝ 回止め FE
139 DGQC1010 2 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
142 DGQC0360 1 BOLT ﾎﾞﾙﾄ FE
145 DGQC0400 1 PLATE ﾌﾟﾚｰﾄ FE
147 DGQC0431 2 LOCATOR 当金 FE
148 DGQC0441 2 LOCATOR 当金 FE
149 DGQC0461 1 BKT BKT FE
150 DGQC0470 1 BKT BKT FE
151 DGQC1030 1 PLATE, SENSOR ﾌﾟﾚｰﾄ ｾﾝｻ FE
152 DGQC0210 1 CYLINDER ｼﾘﾝﾀﾞ OT
155 DGQC1020 1 BKT BKT FE
156 DGQC0760 3 SW, PHOTOELECTRIC SW 光電 DL-S7707 OT
168 DGQC0370 1 BKT BKT FE
169 DGQC3320 1 PLATE, LOCATING ﾌﾟﾚｰﾄ 位置決め FE
170 H5265A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M2X5L FE
171 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X6L FE
172 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X10L FE
174 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L FE
175 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
176 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L FE
177 H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X18L FE
178 H5292T
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X22L FE
180 H5296H
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X55L FE
181 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L FE
182 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L FE
183 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
194 W1020A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M FE
195 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
196 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
197 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
200 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
201 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
CP-743E PARTS LIST
44
