CP-743E-04 PART LIST - 第51页
47
46
47

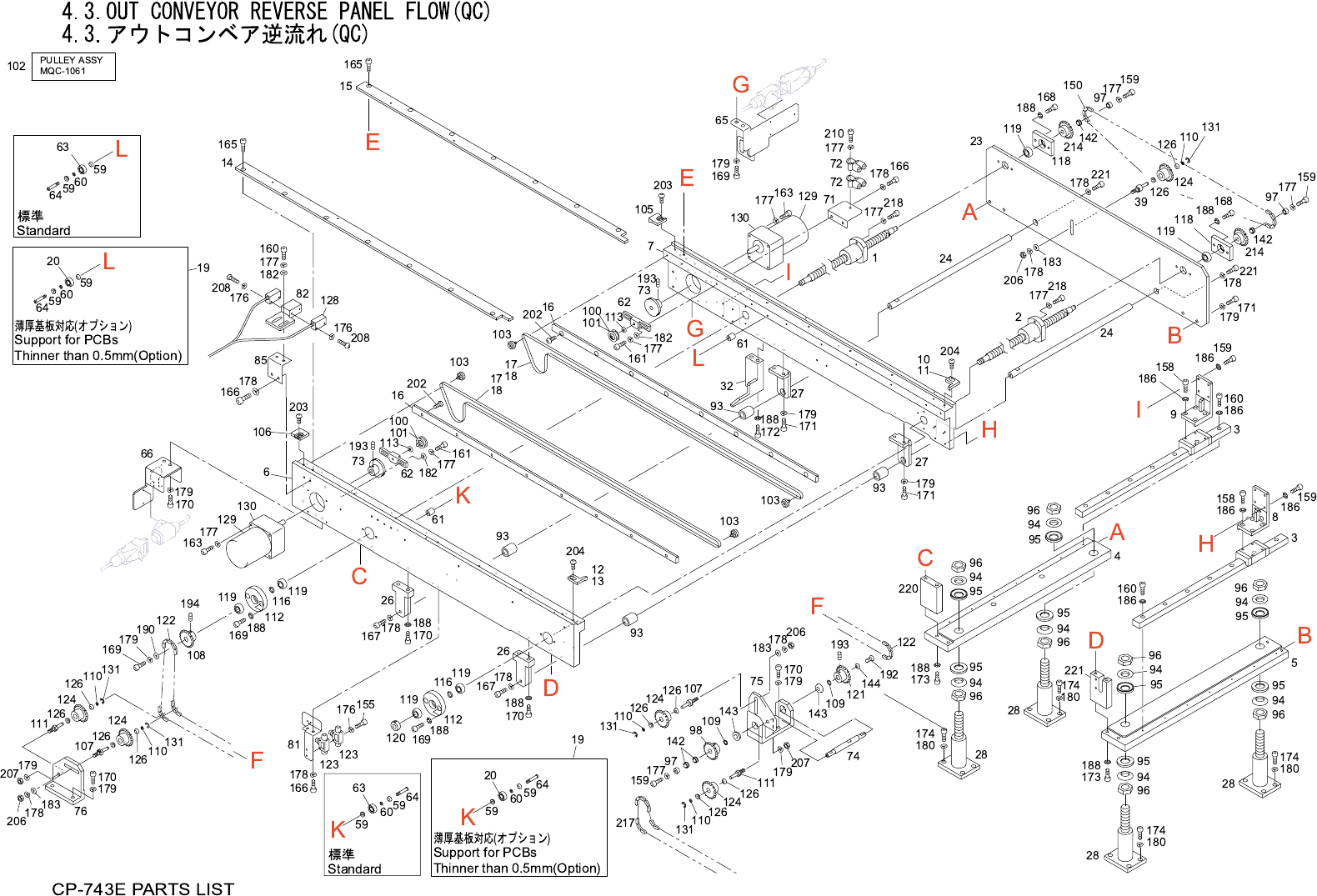

4.3.OUT CONVEYOR REVERSE PANEL FLOW(QC)
4.3.アウトコンベア逆流れ(QC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
1 DGQC0130 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
2 DGQC0140 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
3 H42945 2 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ SSR15XWY1UUC1+400LH-2 FE
4 DGQC0820 1 BRIDGE ﾌﾞﾘｯｼﾞ FE
5 DGQC0830 1 BRIDGE ﾌﾞﾘｯｼﾞ FE
6 DGQC0850 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ AL
7 DGQC0861 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ AL
8 DGQC0091 1 BKT BKT FE
9 DGQC0101 1 BKT BKT FE
10 DCQC0720 1 STOPPER ｽﾄｯﾊﾟ FE
11 DCQC0820 1 STOPPER ｽﾄｯﾊﾟ FE 薄厚基板対応(ｵﾌﾟｼｮﾝ)
12 DCQC0710 1 STOPPER ｽﾄｯﾊﾟ FE
13 DCQC0830 1 STOPPER ｽﾄｯﾊﾟ FE 薄厚基板対応(ｵﾌﾟｼｮﾝ)
14 DGQC1001 1 PLATE ﾌﾟﾚｰﾄ FE
15 DGQC0991 1 PLATE ﾌﾟﾚｰﾄ FE
16 DGQC0260 2 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ AL
17 DGQC0290 2 BELT ﾍﾞﾙﾄ PL
18 DGQC0700 1 BELT ﾍﾞﾙﾄ PL 薄厚基板対応(ｵﾌﾟｼｮﾝ)
19 ADGQC8040 1 PULLEY, TENSION ﾌﾟｰﾘﾃﾝｼｮﾝ OT 薄厚基板対応(ｵﾌﾟｼｮﾝ)
20 DGQC0690 1 PULLEY ﾌﾟｰﾘ FE 薄厚基板対応(ｵﾌﾟｼｮﾝ)
23 DGQC0060 1 PLATE ﾌﾟﾚｰﾄ FE
24 DGQC0880 2 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
26 DGQC0340 2 BKT BKT FE
27 DGQC0790 2 BKT BKT FE
28 DGQC0980 4 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ FE
32 DGQC0180 1 LEVER ﾚﾊﾞｰ FE
39 DGQC0420 1 SHAFT ｼｬﾌﾄ FE
59 H4444T 4
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-950ZZ FE
60 MQC1181 2 COLLAR ｶﾗｰ FE
61 DGQC0570 2 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ FE
62 DGQC0920 2 BKT BKT FE
63 DGQC0590 2 PULLEY ﾌﾟｰﾘ FE
64 DGQC0600 2 BOLT ﾎﾞﾙﾄ FE
65 DGQC0250 1 BKT BKT FE
66 DGQC0710 1 BKT, WIRING BKT 配線 FE
71 DGQC0610 1 BKT BKT FE
72 Y3075A 2 UNION ﾕﾆｵﾝ KQ2U06-00 OT
