CP-743E-04 PART LIST - 第78页

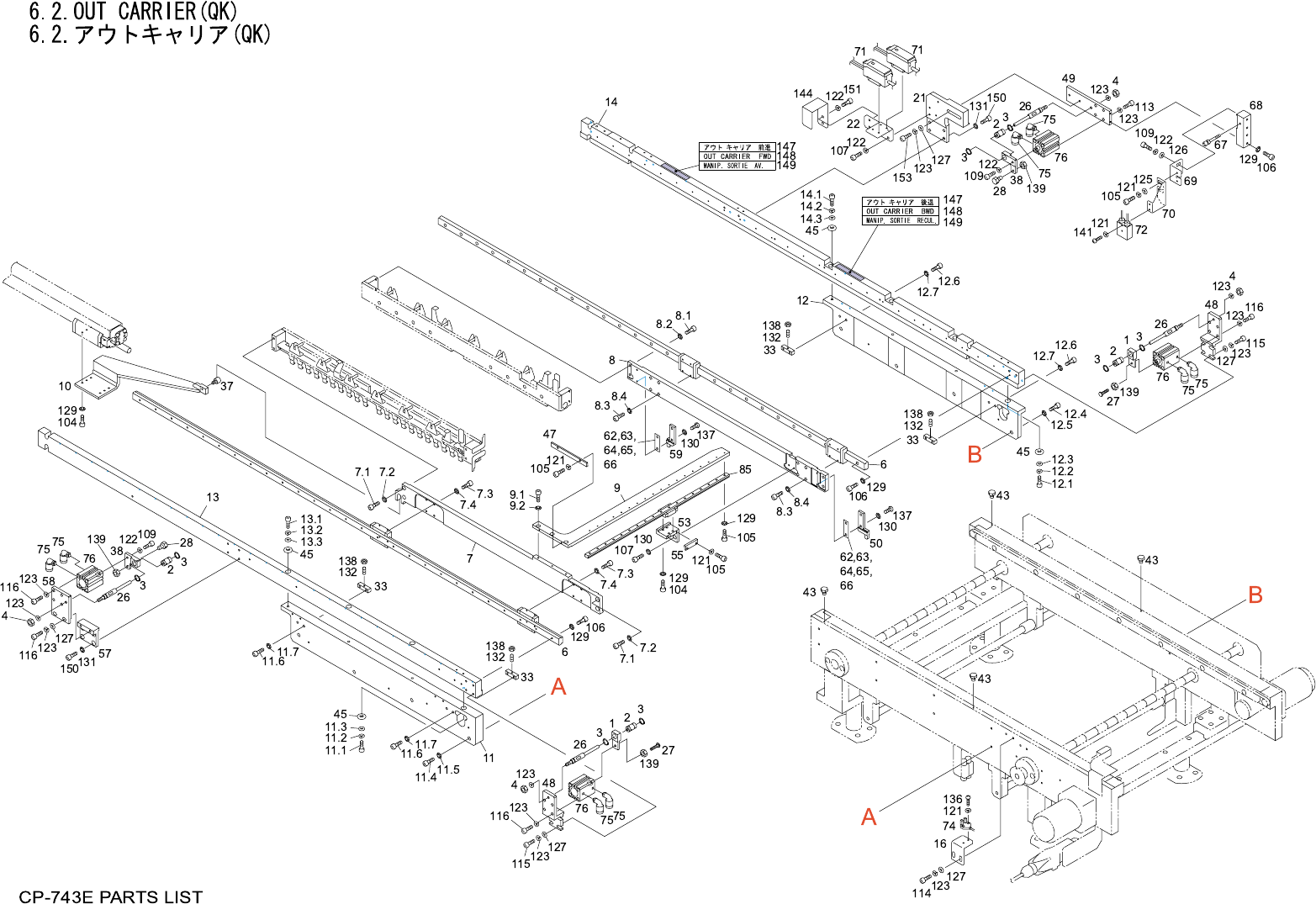

6.1.OUT CARRIER(QK)

6.1.アウトキャリア(QK)

番号図番 & ｺｰﾄﾞ番号個数品名規格材質備考

No. Drg.No. & Code No. QTY Description Rating Materials Remarks

82 H4403A 4

BEARING, NEEDLE

ﾍﾞｱﾘﾝｸﾞﾆｰﾄﾞﾙ TLA810Z FE

83 S30207 2 SPRING ｽﾌﾟﾘﾝｸﾞ AWS4-20 FE

103 H5273A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M3X5L FE

104 H5274A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M3X6L FE

105 H5275A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M3X8L FE

107 H5287A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M4X8L FE

121 W1021A

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 3M/M FE

122 W1022A

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M FE

125 W1042A WASHER, FLAT ﾜｯｼｬ平 4W-3 FE

129 W1010A

WASHER, CONICAL

ﾜｯｼｬ皿

M-3-L FE

130 W1011A

WASHER, CONICAL

ﾜｯｼｬ皿

M-4-L FE

133 N4024A

SCREW, HEX SOCKET SET

ﾈｼﾞ六角穴止め

M3X12L FE

134 K5255H

SCREW, HEX SOCKET BUTTON

小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X5L FE

135 K5255A

SCREW, HEX SOCKET BUTTON

小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X4L FE

138 N1076A

NUT, HEX

ﾅｯﾄ六角

M3 P=0.5 FE

146

H5288A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M4X10L

CP-743ME PARTS LIST
