0305-001 Tg0860-PM-MM 6.6 HEAD OFFSET (GET BOTH IMAGE) Display • This display enables you to teach the head position of fset for the simulta- neous image capture operation, indicating where the head rotational center of …

0305-001 Tg0860-PM-MM

Operation Procedure

• Required Items

Nozzle:4 pieces of “MF01”, “MF02” or “MA06”

Jig Component: Teaching Plate (Component Recognition Offset Jig)

(Standard Accessory Part)

(1) Set either “MF01”-, “MF02”- or “MA06”-type nozzle in the nozzle

stocker.

(2) Attach the jig component (the teaching plate (component recognition

offset jig)) to the position where the teaching plate is attached.

Note: The printed side of the component recognition offset jig should

face downward.

(3) Check the followings.

• Check that the machine is powered.

• Check that the supply cover is completely closed.

(4) Attach either “MF01”-, “MF02”- or “MA06”-type nozzle to the ob-

jective placement head for teaching at the “MANUAL NOZZLE

CHANGE OPERATION” display.

(5) Designate the camera to be used for teaching.

(6) Select the [ALL BEAM HEADS ZERO [MOVE]] key and press the

[MOVE] button to zero all beam heads.

Confirm that the background color of “ALL BEAM ZERO” has turned

green.

(7) To specify the gain and level, use the “GAIN･LEVEL” display.

Note: In normal cases, set “DISABLE” in the “DESIGNATE” data

box.

(8) Select the item to be taught and press the [MOVE] button.

The machine starts the teaching operations.

The following series of teaching operations are performed automati-

cally.

The nozzle picks up the teaching plate from the place where the teach-

ing plate is attached.

↓

The placement head moves to the component recognition camera po-

sition.

↓

The jig component is recognized with the component recognition cam-

era.

↓

The placement head moves onto the back light stage.

↓

The teaching plate is set up on the back light stage.

↓

The jig component is recognized with the P.E.C. recognition camera.

↓

The nozzle picks up the teaching plate from the back light stage.

↓

The teaching plate is returned to the original place (the place where it

was attached).

3-71

6.5 HEAD OFFSET Display

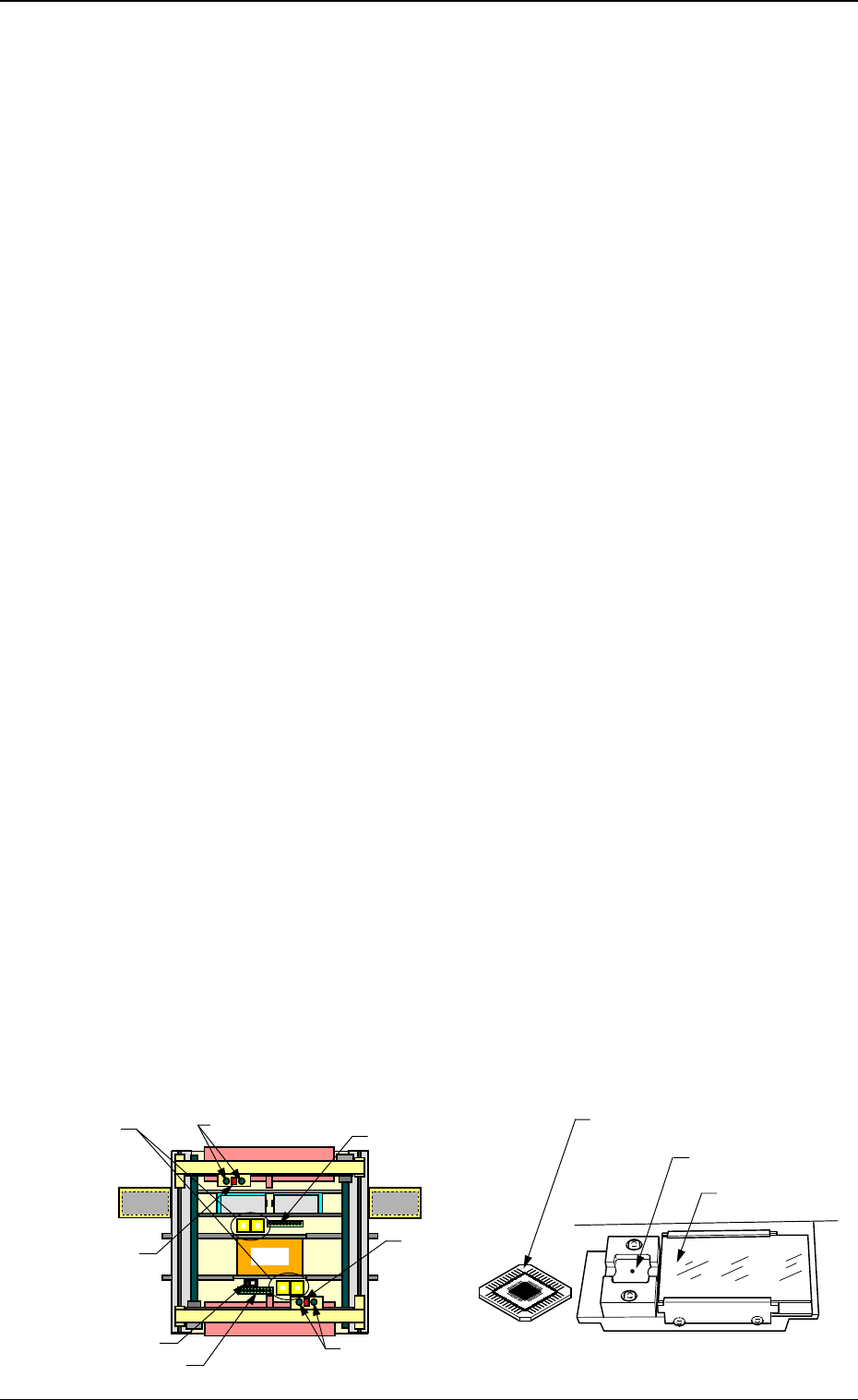

Fig. 4C127

Teaching Plate Section

Component Rec-

ognition Camera

Nozzle Stocker

Placement Head

Nozzle Stocker

Placement Head

P.E.C. Recognition

Camera

P.E.C.

Recognition

Camera

Beam A Side

Teaching Plate

(Component Recognition Offset Jig)

Position of Teaching

Plate

Back Light Stage

Beam B Side

Overall Top View

Magnified View of Teaching Plate Section

0305-001 Tg0860-PM-MM

6.6 HEAD OFFSET (GET BOTH IMAGE) Display

• This display enables you to teach the head position offset for the simulta-

neous image capture operation, indicating where the head rotational center

of the subordinate head is located in comparison with the center of the con-

fronting camera when the component recognition function (simultaneous

recognition function) is implemented with components being picked up by

the right and left heads.

Calculate the offset value by recognizing the pattern of the printing to the

teaching jig component plate (component recognition offset jig) which picked

up with the nozzle with the component recognition camera.

Note: Follow the teaching procedures in the specified order. Otherwise, some

trouble (such as inaccurate component placement, frequent mechani-

cal errors, etc.) will arise.

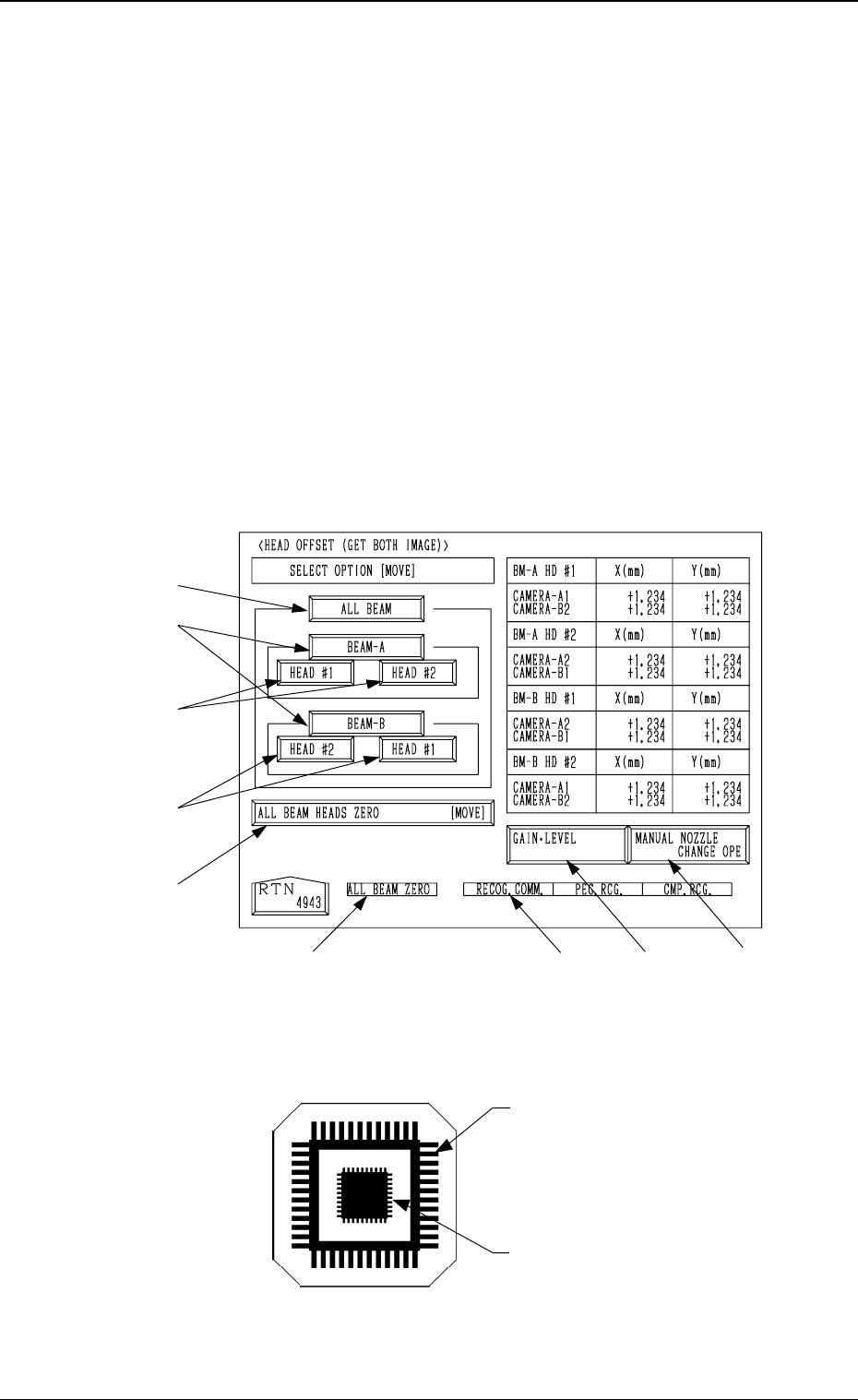

When the [HEAD OFFSET (GET BOTH IMAGE)] key is pressed at the

“TEACH OFFSET” display, the following display appears on the screen.

Teaching Plate (Component Recognition Offset Jig: JG-0085)

(Standard Accessory Part)

Note: Handle this fragile jig very carefully.

• Two types of patterns are printed through vapor deposition on the glass for

positional calculation.

3-72

6.6 HEAD OFFSET (GET BOTH IMAGE) Display

Fig. 4C128

Pattern to be captured by the

component recognition camera

Pattern to be captured by the

P.E.C. recognition camera

Fig. 4C129

0305-001 Tg0860-PM-MM

*1 [ALL BEAM] Key

The machine performs the teaching operation of the head

position offset for simultaneous image capture operations

at both Beams A and B.

When this key is selected and the [MOVE] button is pressed,

the machine starts the teaching operation.

Note: Before performing the teaching operations, zero

both beams.

It is calculated through the procedures similar to the teach-

ing operation of the head rotational center offset data where

the head rotational center is located when viewed from the

camera center in comparison with the camera positioned as

the subordinate head during simultaneous recognition for

each individual heads.

*2 [BEAM-A] and [BEAM-B] Keys

The machine performs the teaching operation of the head

position offset for simultaneous image capture operations

at Beam A or B.

When the [BEAM-A] or the [BEAM-B] key is selected and

the [MOVE] button is pressed, the machine starts the teach-

ing operation.

Note: Before performing the teaching operations, zero

both beams.

*3 [HEAD #1] and [HEAD #2] Keys in “BEAM-A” Group

Box and [HEAD #2] and [HEAD #1] Keys in “BEAM-B”

Group Box

When one of the above-described keys is selected and the

[MOVE] button is pressed, the machine starts teaching the

offset data related to the selected head #.

Note: Before performing the teaching operations, zero

both beams.

3-73

6.6 HEAD OFFSET (GET BOTH IMAGE) Display

Reference

Subordinate Head:

When two steps are paired through the simultaneous pick-up or the pick-up priority function

designated in the placement data, this head handles the component related to the step No. larger

than the other. On the other hand, the head which handles the component related to the smaller

step No. is called "Guide Head".

The simultaneous recognition is automatically prohibited and images are captured individually

when;

• components which require BGA lighting are picked up.

• a value other than "0" (zero) is set (designation of eccentric pick-up) in the "X" and "Y" data

boxes of the label "PICK-UP LOCATION CORRECTION" at the "CMPNT LIBRARY"

display.

• the visual field of the confronting camera cannot cover the components picked up by the right

and left heads.

In these cases, the beams must be moved such that the rotational centers of the heads are located

at the camera centers before the images are captured.

Compared with this, in the case of the simultaneous recognition, the guide head (for the smaller

step) moves normally but the subordinate head faces the other one at the position where the head

rotational center does not match the camera center due to the relation between the head-to-head

and camera-to-camera pitches. Therefore, this offset data is required for recognition processing

and correction calculation.

Fig. 4C130

Fig. 4C131

Fig. 4C132
