0305-001 Tg0860-PM-MM

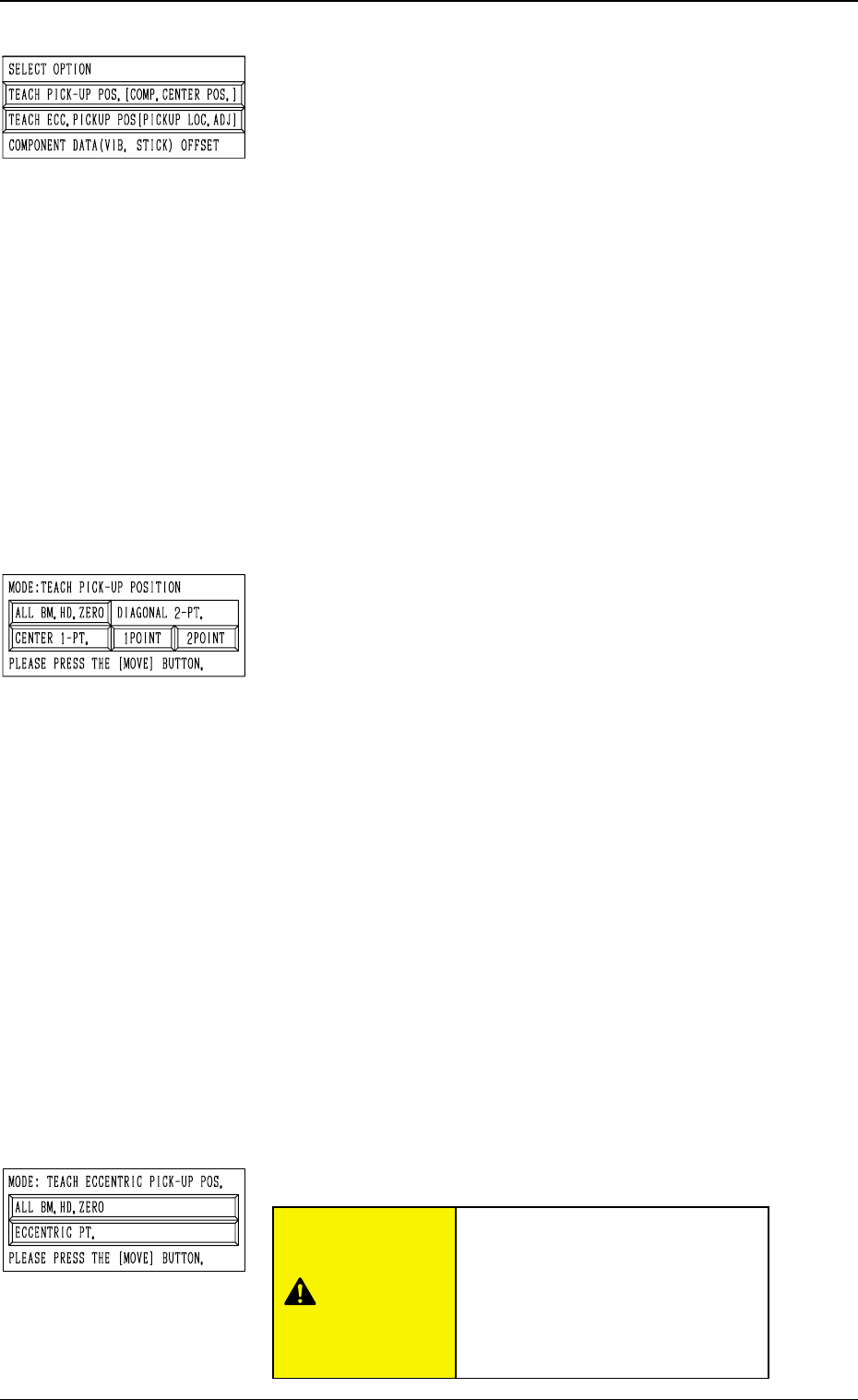

*3 “SELECT OPTION”
[TEACH PICK-UP POS. [COMP. CENTER POS.]] Key
When this key is pressed, the display (Fig. 4C172) ap-
pears on the screen.
To teach the center position of the component, use this
function for the “FEEDER (B) OFFSET” teaching.
[TEACH ECC. PICKUP POS [PICKUP LOC. ADJ]] Key
When this key is pressed, the display (Fig. 4C173) ap-
pears on the screen.
When a component has a groove, a protrusion, etc., and
cannot be picked up at the center without any hindrance,
use this function for the “PICK-UP LOCATION AD-
JUSTMENT X, Y” teaching.
[COMPONENT DATA (VIB. STICK) OFFSET] Key
When this key is pressed, the display (Fig. 4C195) ap-
pears on the screen.
Use this function to teach “OFFSET X, Y”.
This key can be selected only when the feeder No. se-
lected in *1 is allocated to a vibratory stick feeder.
*4 “MODE: TEACH PICK-UP POSITION”
This is used to additionally modify “FEEDER (B) OFFSET
X, Y”.
[ALL BM. HD. ZERO] Key
Both Beams A and B are zeroed.
When this key is selected and the [MOVE] button is
pressed, the zeroing operation starts.
[CENTER 1-PT.] Key
When this key is selected and the [MOVE] button is
pressed, the P.E.C. recognition camera moves to the com-
ponent center position (Position of “Design Position +
Feeder (A) Offset + Feeder (B) Offset”) of the perti-
nent feeder, making it possible to capture the image.
Under this condition, shift to the trackball operation and
perform the manual alignment operation.
“DIAGONAL 2-PT.” [1POINT] and [2POINT] Keys
These keys are used to align the component with two
diagonally-located points.
Use this function when the maximum outside dimensions
of the component exceed “10 × 10 mm” (when the whole
image of the component cannot be captured on the rec-
ognition monitor).
*5 “MODE: TEACH ECCENTRIC PICK-UP POS.”
6.10 PICK-UP LOCATION (TAPE·VIB. STICK) Display
3-104
Fig. 4C178
Fig. 4C179
Fig. 4C180
“PICK-UP LOCATION ADJUST-
MENT X, Y” in the component li-
brary data is modified additionally.
Incorrect teaching operation will
cause the pick-up rate to deterio-
rate.
CAUTION
0305-001 Tg0860-PM-MM
[ALL BM. HD. ZERO] Key
Both Beams A and B are zeroed.
When this key is selected and the [MOVE] button is
pressed, the zeroing operation starts.
[ECCENTRIC PT.] Key
When this key is selected and the [MOVE] button is
pressed, the P.E.C. recognition camera moves to the des-
ignated pick-up location correction position based on the
component center position (Position of “Design Position
+ Feeder (A) Offset + Feeder (B) Offset”) of the perti-
nent feeder, making it possible to capture the image.
Under this condition, shift to the trackball operation and
perform the manual alignment operation.
Note: It is necessary to correctly teach the component
center position before the eccentric position is
adjusted.

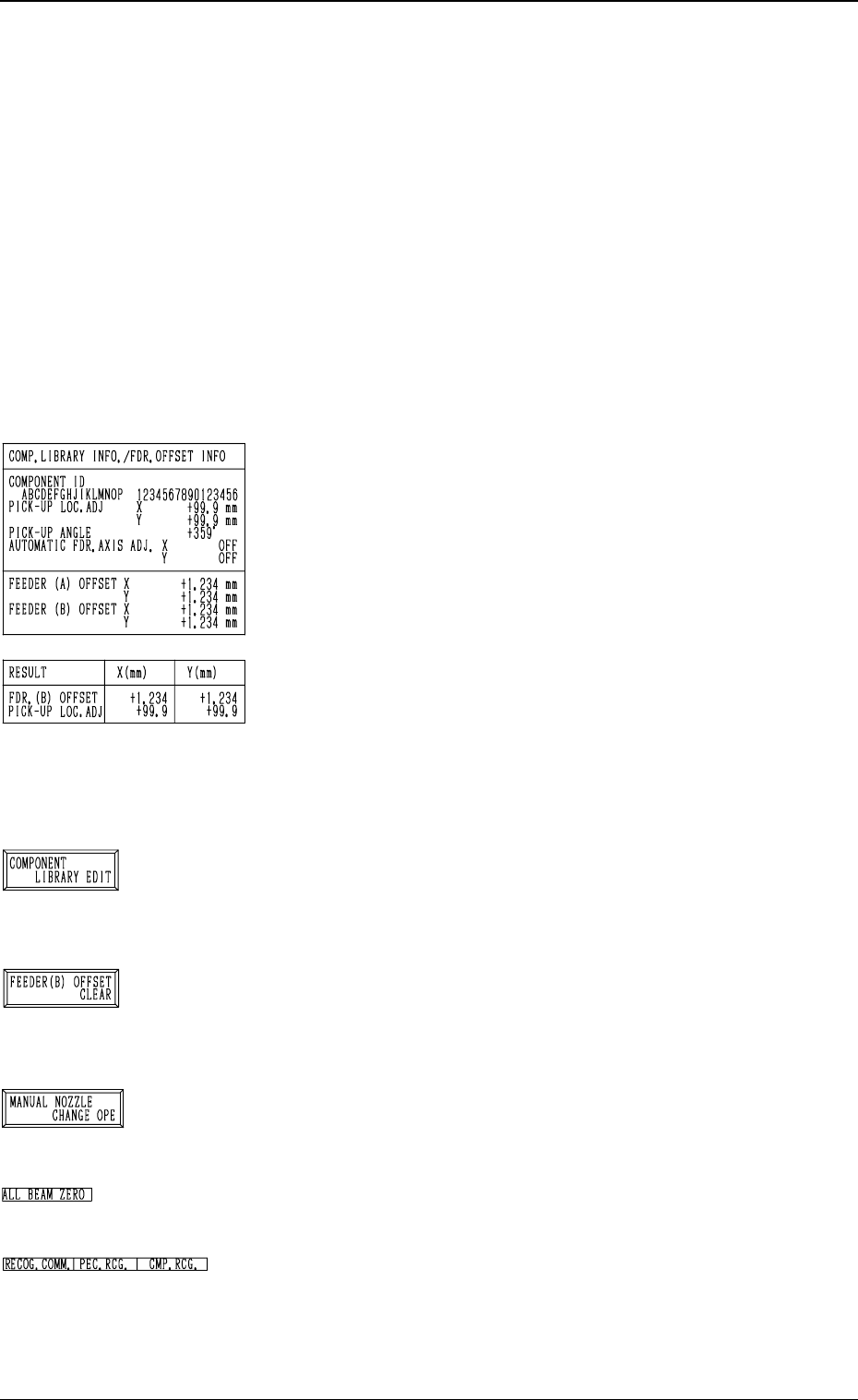

*6 “COMP. LIBRARY INFO./FDR. OFFSET INFO”
Displayed are the component library data and the feeder
offset of the feeder No. set up in *1.
*7 “RESULT X (mm), Y (mm)”
When the manual alignment operation (using the trackball)
is completed, the results of the teaching operation are dis-
played.
Selection of [TEACH PICK-UP POS. [COMP. CENTER
POS.]] Key: FEEDER (B) OFFSET
Selection of [TEACH ECC. PICKUP POS [PICKUP LOC.
ADJ]] Key: PICK-UP LOCATION ADJUSTMENT
*8 [COMPONENT LIBRARY EDIT] Key
When this key is pressed, the “COMPONENT LIBRARY
EDIT” display appears on the screen, enabling the operator
to edit the data related to the feeder No. which was se-
lected in *1.
*9 [FEEDER (B) OFFSET CLEAR] Key
When this key is pressed, the “FEEDER (B) OFFSET
CLEAR” display appears on the screen, enabling the op-
erator to clear the feeder (B) offset related to the feeder
No. which was selected in *1.
*10 [MANUAL NOZZLE CHANGE OPE] Key
When this key is pressed, the “MANUAL NOZZLE
CHANGE OPERATION” display appears on the screen,
enabling the operator to attach or store the nozzles.
*11 “ALL BEAM ZERO”
When all beams are zeroed completely, the back ground
turns green. Otherwise, the background has no color.
*12 “RECOG. COMM.”
When “DISABLE” is set in the “P.E.C.” and “COMPO
NENT RECOGNITION” data boxes at the “TEST
MODE” display, the background color of “P.E.C. RECOG.”
and “COMP. RECOG.” becomes light red. (No background
color in normal cases)
3-105
6.10 PICK-UP LOCATION (TAPE·VIB. STICK) Display
Fig. 4C181
Fig. 4C182
Fig. 4C183
Fig. 4C184
Fig. 4C185
Fig. 4C186
Fig. 4C187
0305-001 Tg0860-PM-MM
Operation Procedure
Basically, a component must be picked up when the nozzle is located at the
center of the component.
Therefore, “AUTOMATIC FEEDER AXIS ADJUSTMENT MODE” is
prepared to feed back and correct the positional deviation between the com-
ponent and nozzle center positions (the deviation calculated through compo-
nent recognition processing), using the statistical processing. However, there
may be some components which have a groove, a protrusion, etc., at their
centers, causing some hindrance to the component picks at the centers. To
cope with such components, the “PICK-UP LOCATION ADJUSTMENT”
function is prepared in the component library and can be selected to shift the
pick-up position intentionally from the component center.
The menus for pick-up location teaching are prepared to cope with each
case described before.
• Teaching Operation for Alignment of Component Center with Nozzle
Center
(1) Follow the teaching flow in Fig. 4C188 and perform the teaching opera-
tion on the component center position.
When no regulation is given to the shape of components and positioning
should be made simply to the component center, use the [TEACH PICK-
UP POS. [COMP. CENTER POS.]] key.
Note: The teaching operation must be performed while “ALL BEAM
ZERO” is displayed.
Teaching Procedure
Designate the objective feeder No. for teaching.
Select the [TEACH PICK-UP POS. [COMP. CENTER POS.]] key.
Select the [CENTER 1-PT.] key or perform the “DIAGONAL
2-PT” operation.
Press the [MOVE] button.
The placement head moves to the objective
feeder position for teaching and the image of
the pick-up location is captured by the P.E.C.
recognition camera.
When the [CENTER 1-PT.] key is selected,
the registration of the designated nozzle is made
together for graphic teaching to facilitate the
manual alignment operation with the trackball.
Positioning Operation with Trackball
Refer to “Trackball Operation” (described
later) for details.
3-106
6.10 PICK-UP LOCATION (TAPE·VIB. STICK) Display
Fig. 4C188
