The following three methods are prepared for the component data offset
teaching.
Operation Procedure (Movement of Data Position)
(1) Select the [DATA POS. MOVE] key of “MODE”.
(2) Select the [CENTER 1-PT] key (the [1POINT] key in the case of diago-
nal 2-point alignment) and press the [MOVE] button.
The X/Y beam moves to the position where the parameters set in the “X
(mm)” and “Y (mm)” data fields of the label “OFFSET” in the component
data are referred to.
(3) In the case of diagonal 2-point alignment, select the [2POINT] key and
press the [MOVE] button.
Manual Alignment Operation Procedure (Trackball Operation)
(1) Select the [MANUAL ALIGNMENT] key of “MODE”.
(2) Select the [CENTER 1-PT] key (the [1POINT] key in the case of diago-
nal 2-point alignment) and press the [MOVE] button.
(3) Manipulate the trackball to perform the manual alignment.
Refer to “6.8.9 Teaching Operation with Trackball” for details.
(4) In the case of diagonal 2-point alignment, select the [2POINT] key and
press the [MOVE] button. Then, manipulate the trackball to perform the
manual alignment.
Operation Procedure (Smooth Manual Alignment)
(1) Select either the [ ], the [ ], the [ ], or the [ ] key of “DIRECTION”.
(2) Select the speed by selecting one of the keys under “SPEED”.
(3) The X/Y beam moves in the specified direction at the selected speed
while the [MOVE] button is being pressed.
It stops when the [MOVE] button is released.
Operation Procedure (Inching Movement)
(1) Select either the [ ], the [ ], the [ ], or the [ ] key of “DIRECTION”.
(2) Select either the [50 mm], the [30 mm], or the [10 mm] key of “MNL.
ALIGN”.
(3) When the [MOVE] button is pressed, the X/Y beam moves in the speci-
fied direction as far as the specified distance (inching distance).
3-112
6.11 COMPONENT DATA (VIB. STICK) OFFSET Display
0305-001 Tg0860-PM-MM
6.12 PICK-UP LOCATION (TRAY) Display (Option)
• This display allows the teaching operations on the pick-up position offset of
the component to be supplied from the multi-layer tray feeder (option).
When the [TRAY] key is pressed at the “PICK-UP LOCATION” display, the
following display appears on the screen.
*1 “SELECT TRAY FEEDER” [TRAY-L] and [TRAY-R]
Keys
Select the multi-layer tray feeder where the components to
be taught are set.
Note: The tray feeder not registered in the component of
the current pattern program cannot be selected.
*2 “FEEDER INFORMATION”
Select the component (FDR NO.) to be taught.
Note: No selection can be made with the pallet being
drawn out.
*a “COMPONENT ID”
Displayed is the component ID related to the
specified feeder No.
*b “FEEDER #”
Displayed is the multi-layer tray feeder which
is selected by “SELECT TRAY FEEDER” in
*1 and has the smallest feeder No. among the
registered ones.
Only the feeder No. registered in the compo-
nent data of the current
pattern program is dis-
played and scrolled up or down by pressing the
[ ] or the [ ] key on the right side.
Note: When only one feeder No. is regis-
tered, it cannot be scrolled up or down.
*5
*7
*6
*8
*2
*9
*3
*4
*10
*11
*7
*1
*12
6.12 PICK-UP LOCATION (TRAY) Display (Option)
Fig. 4C206
3-113
Fig. 4C207
Fig. 4C208
0305-001 Tg0860-PM-MM
*c “STEP #”
When “FEEDER #” in *b is selected, the step
No. where the feeder No. is registered is dis-
played.
When the feeder No. selected in *b is allo-
cated to several steps, the currently displayed
step No. can be changed by pressing the [ ]
or the [ ] key.
*d “BLOCK #”
When *b and *c are selected, the block No.
where the feeder No. is registered is displayed.
When the identical feeder Nos. are set in sev-
eral blocks in accordance with the feeder and
step Nos. selected in *b and *c, the block No.
can be changed by pressing the [ ] or the
[ ] key after the key beside “BLOCK #” is
selected.

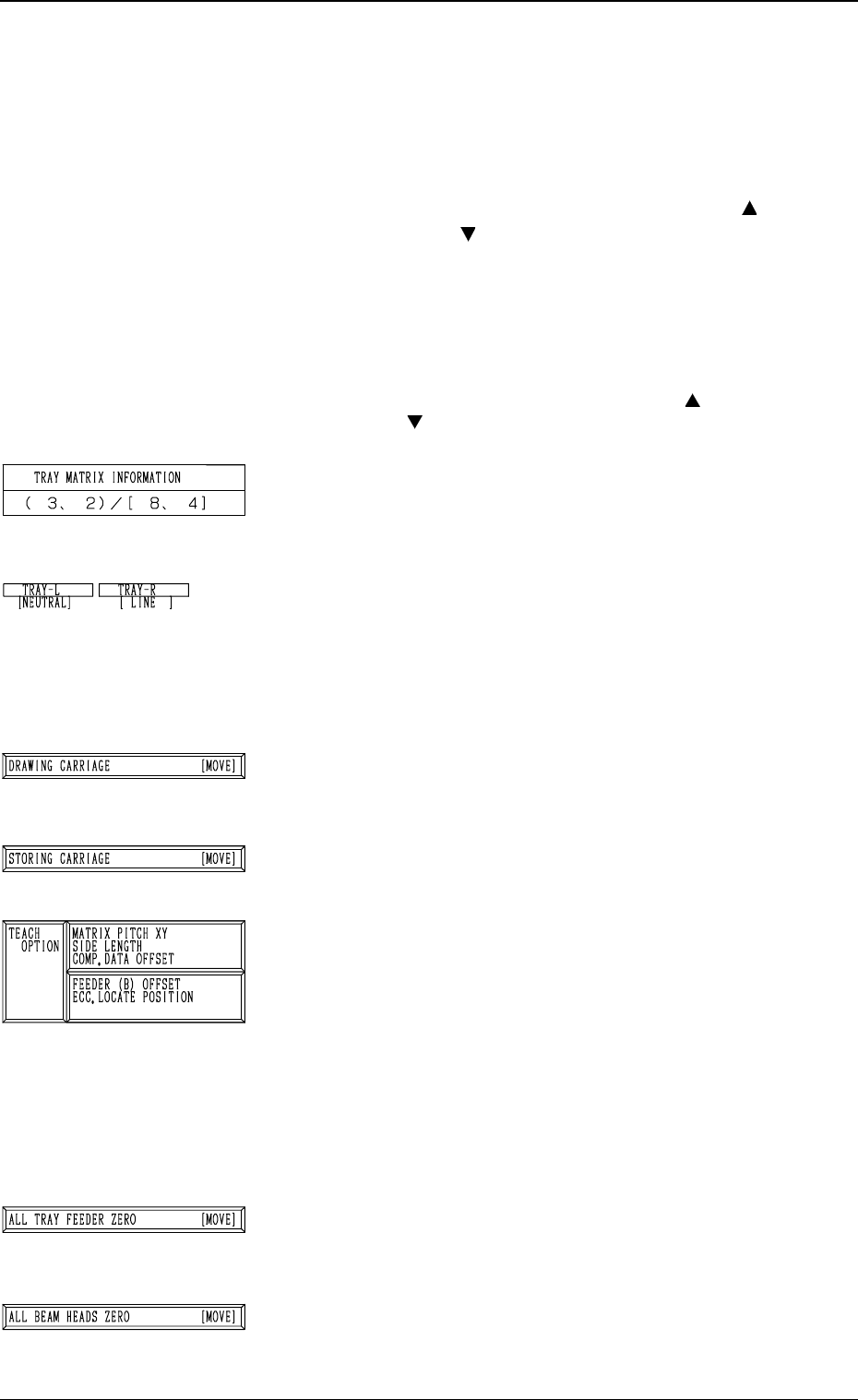

*3 “TRAY MATRIX INFORMATION” (X, Y)/(X, Y)
Displayed are the coordinates (X, Y) representing from
which tray in the specified block the components must be
picked up first and the matrices (X, Y) specified in the com-
ponent library data.
*4 “TRAY-L” and “TRAY-R”
It is shown which mode “[NEUTRAL], [LINE], or [LO-
CAL]” the right and left multi-layer tray feeders are in and
whether they are zeroed or not.
When the multi-layer tray feeder is zeroed, “” appears.
Note: The condition of the disconnected multi-layer tray
feeder is not shown.
*5 [DRAWING CARRIAGE [MOVE]] Key
When this key is selected and the [MOVE] button is pressed,
the pallet related to the specified feeder No. and step is
drawn out.
*6 [STORING CARRIAGE [MOVE]] Key
When this key is selected and the [MOVE] button is pressed,
the drawn pallet is stored in the magazine.
*7 “TEACH OPTION”
[MATRIX PITCH XY SIDE LENGTH COMP. DATA OFF-
SET] Key
When this key is pressed, the display (Fig. 4C220) ap-
pears on the screen, enabling the teaching operation of
the matrix pitch X and Y, the side length, and the compo-
nent data offset.
[FEEDER (B) OFFSET ECC. LOCATE POSITION]
Key
When this key is pressed, the display (Fig. 4C231) ap-
pears on the screen, enabling the teaching operation of
the feeder (B) offset and the eccentric pick-up position.
*8 [ALL TRAY FEEDER ZERO [MOVE]] Key
This key is used to zero all multi-layer tray feeders..
When this key is selected and the [MOVE] button is pressed,
the zeroing operation starts.
*9 [ALL BEAM HEADS ZERO] Key
This key is used to zero both Beams A and B.
When this key is selected and the [MOVE] button is pressed,
the zeroing operation starts.
6.12 PICK-UP LOCATION (TRAY) Display (Option)
