2.2 Preparation for Lubrication

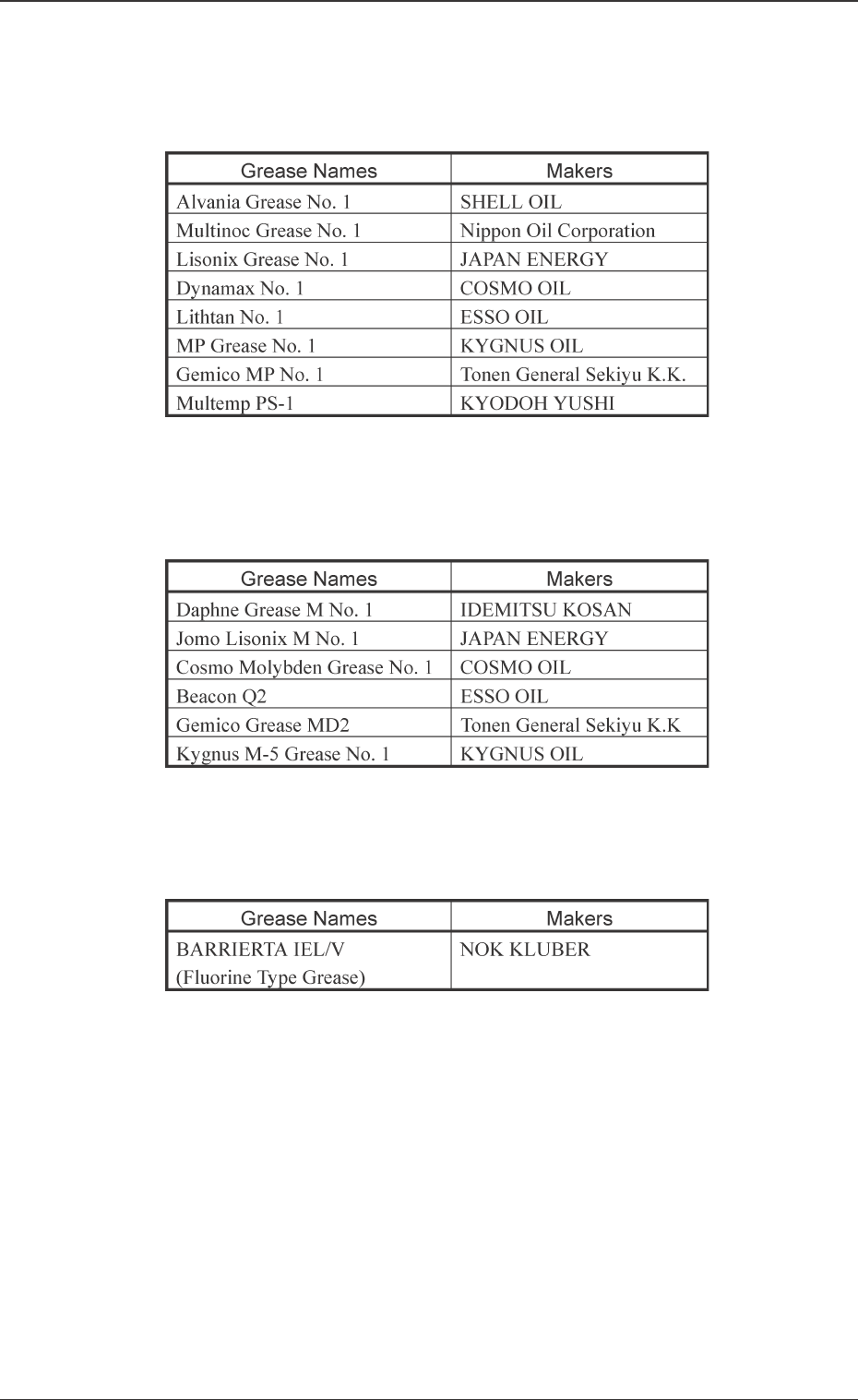

Same Types of Lubricants
Equivalent for DAPHNE EPONEX GREASE No.1 (IDEMITSU KOSAN CO.,
LTD.)
Equivalent for NEW MOLYNOC GREASE No.1 (Nippon Oil Corporation)
Equivalent for SILICONE GREASE KS64 (SHIN-ETSU CHEMICAL CO.)
(2) Brush
Use a brush whose bristles do not come off easily.
(3) Application by Hand
Use a pair of vinyl gloves to apply grease by hand.
(4) Grease Applicator
Use a normal grease applicator on the market.
Table 4A2
Table 4A1
Table 4A3
Tg0860-PM-MM0305-001 1-4
2.2 Preparation for Lubrication
(5) Hand Grease Gun
Standard : KH-120
Part No. : 630 062 2577
Maker : Yamada Yuki
Note: Do not use the hand grease gun except for supplying DAPHNE
EPONEX GREASE No. 1.
If a hand grease gun and attachment are required, purchase them.
Consult our sales personnel for details.
Refer to the attached instruction manual for the detailed information on
how to use these grease.

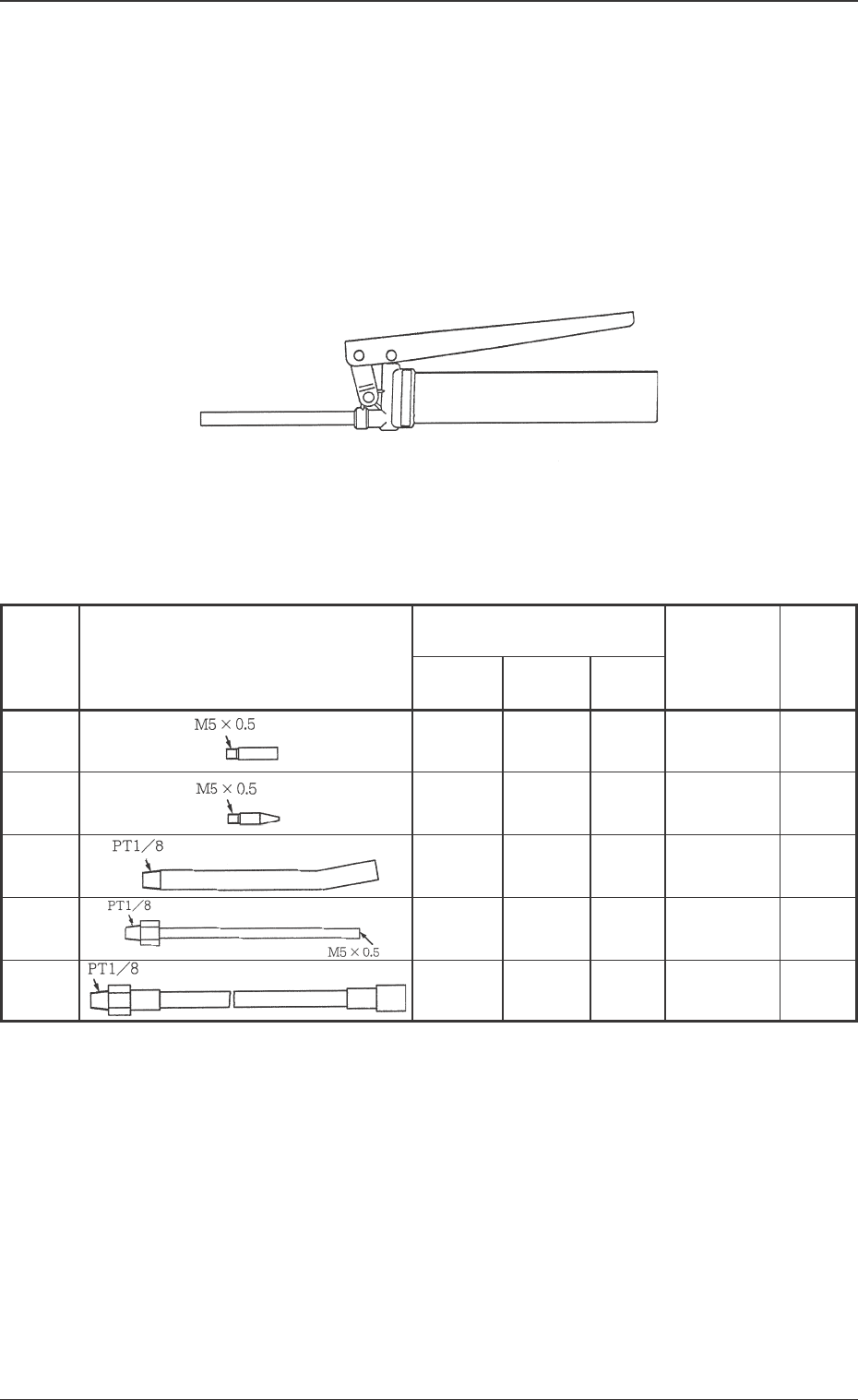

Fig. 4A3
N Type
P Type
H Type
U Type
SPK-3C
Standard Shape
Grease and Required Number
of Attachments
For DAPHNE
EPONEX
GREASE No.1
Total
Frequency
in Use
Part No. Remarks
1
1
1
1
1
1
1
1
1
1
630 061 7467
630 061 7474
630 061 7450
630 061 7443
630 061 7504
THK
THK
THK
THK
Yamada
Yuki
Table 4A4 Attachment for Hand Grease Gun KH-120
Tg0860-PM-MM
Fig. 4A4
3. Maintenance Spots (Overall)
0305-001 1-5
Component Supply Section
Beam A Side
Beam B Side
Fig. 4A5
3. Maintenance Spots (Overall)
Air Regulator
Component Supply Section
Beam A Side
