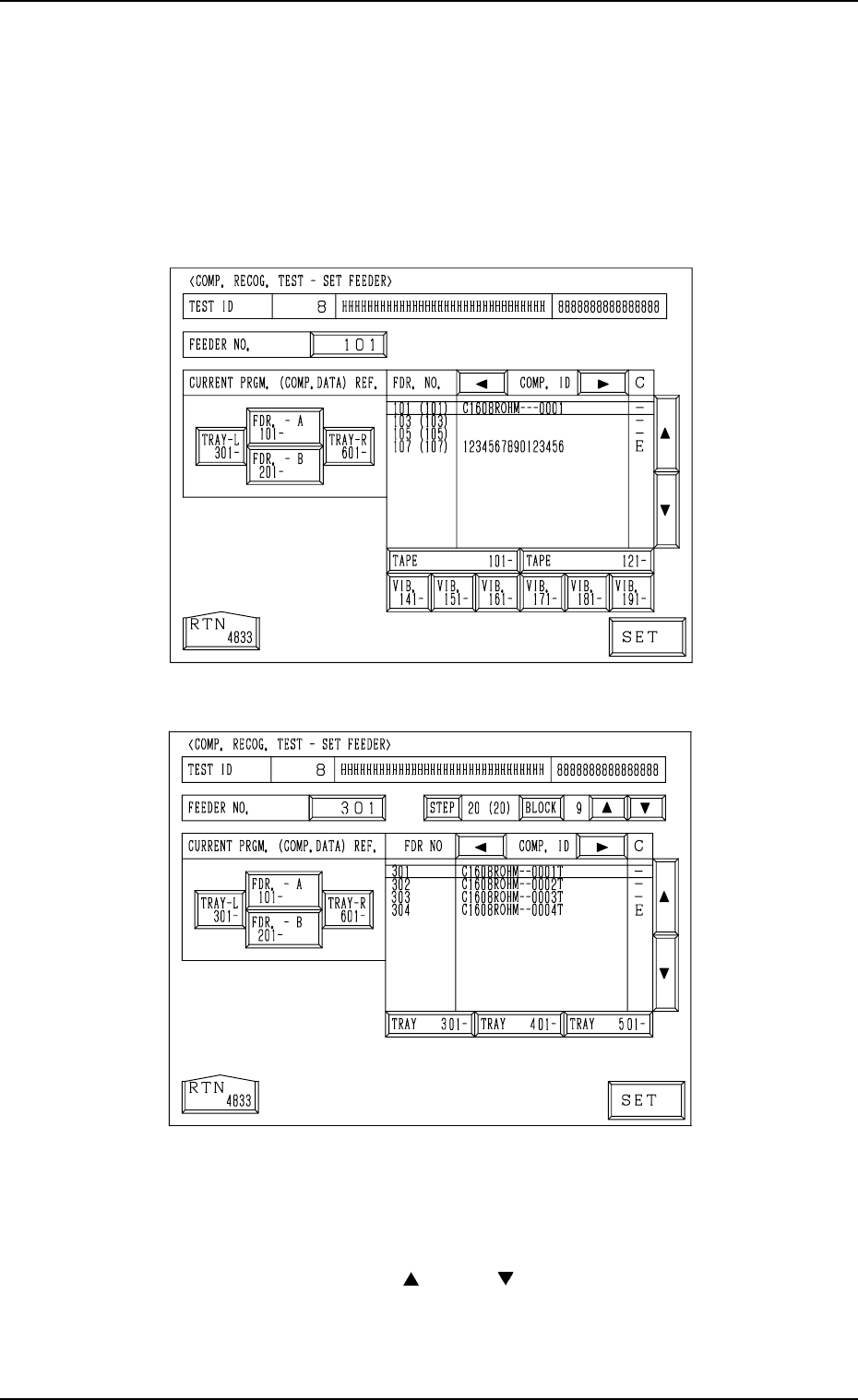

To select the feeder number referring to the current program (com-
ponent data)
(1) Select the [FDR. - A 101-], the [FDR. - B 201-], the [TRAY-L 301-]
(option), or the [TRAY-R 601-] (option) key located under “CURRENT
PRGM. (COMP. DATA) REF.”.
The keys labeled with feeder Nos. (Nos. classified in every one hundreds)
are displayed.
[FDR. - A 101-] and [FDR. - B 201-] Keys
[TRAY-L 301-] and [TRAY-R 601-] Keys
(2) Press the unit key related to the feeder No. to be set.
The list of component IDs is displayed.
Note: It is impossible to select the unit for which no data is registered in
the component data of the current pattern program data.
(3) Move the cursor with the [ ] or the [ ] key and select the feeder No.
Then, press the [SET] key.
• When the data for the multi-layer tray feeder (option) is selected, the
related step and block numbers must also be set, using the [STEP] and
the [BLOCK] keys.
7.2 COMPONENT RECOG. TEST Display
3-142
Fig. 4C292
Fig. 4C293
0305-001 Tg0860-PM-MM
7.2.3 COMPONENT RECOGNITION TEST Display
• This display allows the operator to correct the posture of the picked compo-
nent, set the lighting for recognition, and implement the component recog-
nition.
When the [COMP. RECOG. (MANUAL)] key is pressed at the “COMPO-
NENT RECOG. TEST” display, the following display appears on the screen.
Note: When the component pick-up operation is not completed, this key can-
not be selected.
*1 “PROCEDURE” and “CAMERA”
Select the component recognition camera to capture
an image.
[MOVE TO RECOGNITION STATION [MOVE]] Key
When this key is selected and the [MOVE] button is
pressed, the designated head moves to the position
of the specified component recognition camera.
[COMP. RECOG. (MANUAL)]] Key
When this key is selected and the [MOVE] button is
pressed, the component recognition test is imple-
mented.
*2 “HEAD”
The head which has picked up a component is displayed in
green.
*3 [ZEROING ALL BEAM AXIS [MOVE]] Key
This key is used to zero both Beams A and B.
When this key is selected and the [MOVE] button is pressed,
the beams are zeroed.
7.2 COMPONENT RECOG. TEST Display
3-143
*9
*4
*7
*6
*5
*3
*2
*1
*8
Fig. 4C294
Fig. 4C295
Fig. 4C296
Fig. 4C297
0305-001 Tg0860-PM-MM
*4 CORRECT PICKED POSITION [MOVE]
The posture of the picked component can be corrected while
the movement is being checked on the recognition moni-
tor.
[BEAM-XY MOVE] Key
This key is used to correct the posture of the picked
component by moving it in the X/Y direction.
When the direction and speed are specified by using
the keys located under “DIRECTION” and “SPEED”
and the [MOVE] button is pressed after this key is
selected, the beam moves in the X/Y direction.
[NOZ. UP/DN [L] MOVE] Key
This key is used to correct the posture of the picked
component by moving it up or down (L direction).
When the direction and speed are specified by using
the keys located under “DIRECTION” and “SPEED”
and the [MOVE] button is pressed after this key is
selected, the nozzle moves up or down (L direction).
“DIRECTION” [ ], [ ], [ ], and [ ] Keys
These keys are used to select the direction in which
the head should be moved.
“SPEED” [HIGH], [LOW], and [1 PULSE] Keys
These keys are used to select the speed at which the
head should be moved.
“NOZZLE ROTATE N1 JOG” [FORWARD] and
[REVERSE] Keys
These keys are used to select the direction in which
the head should be rotated.
*5 “TOTAL INCR.”
Displayed is the accumulated total as the result of the “COR-
RECT PICKED POSITION [MOVE]” operation.
7.2 COMPONENT RECOG. TEST Display
3-144
Fig. 4C298
Fig. 4C299
