Tg0860-PM-MM 0305-001 3-183 8.1 INPUT CHECK Display T able 4C13 Setting of T ray R SDS Nodes (Option) T able 4C12 Setting of T ray L SDS Nodes (Option)

Tg0860-PM-MM

8.1 INPUT CHECK Display

Setting of Feeder Base

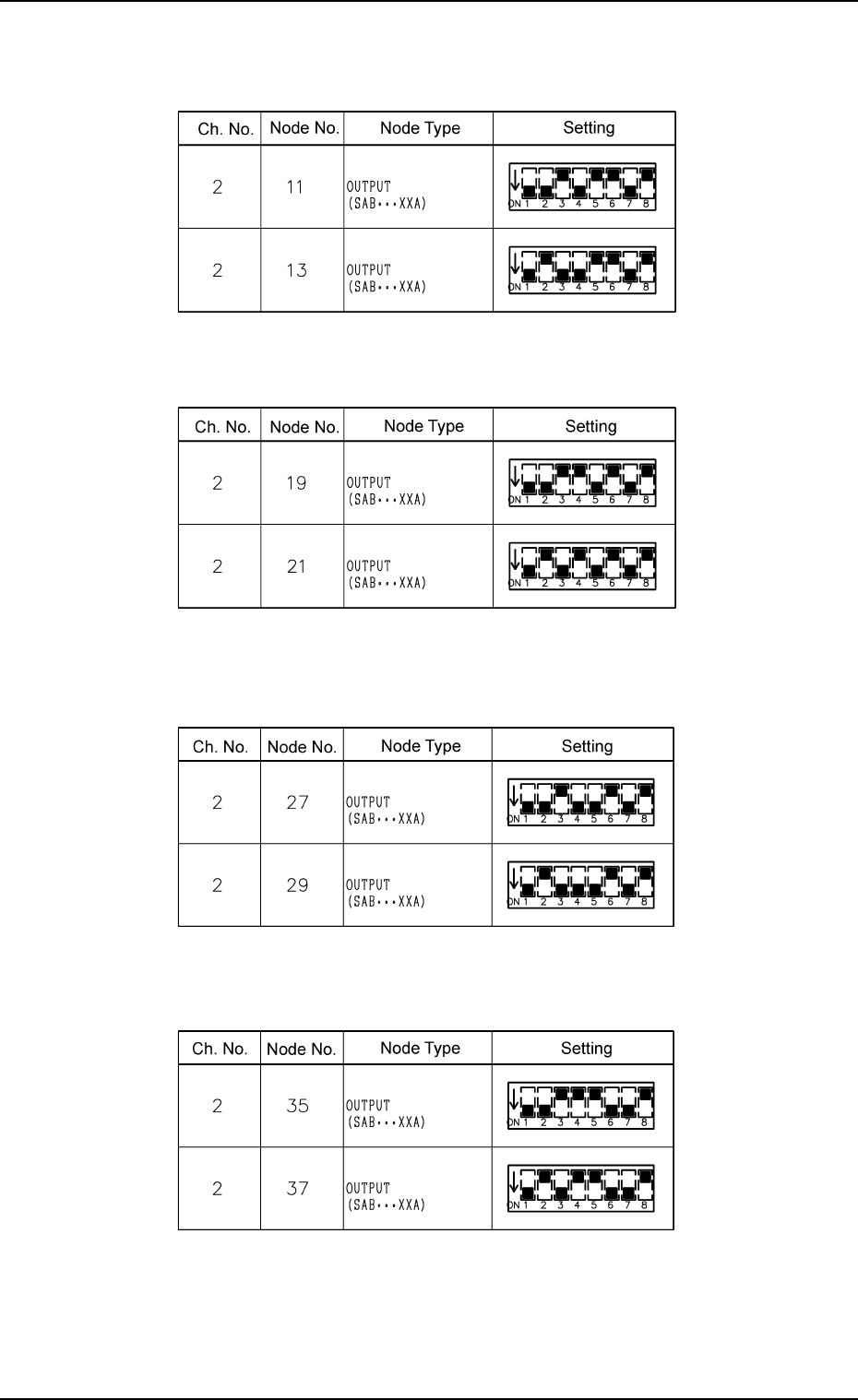

#2 Feeder L (A) SDS Nodes

Table 4C9

Table 4C8

Setting of Feeder Base

#1 Feeder R (A) SDS Nodes

Setting of Feeder Base

#4 Feeder L (B) SDS Nodes

Table 4C10

Setting of Feeder Base

#3 Feeder R (B) SDS Nodes

Table 4C11

0305-001 3-182

Tg0860-PM-MM

0305-001 3-183

8.1 INPUT CHECK Display

Table 4C13

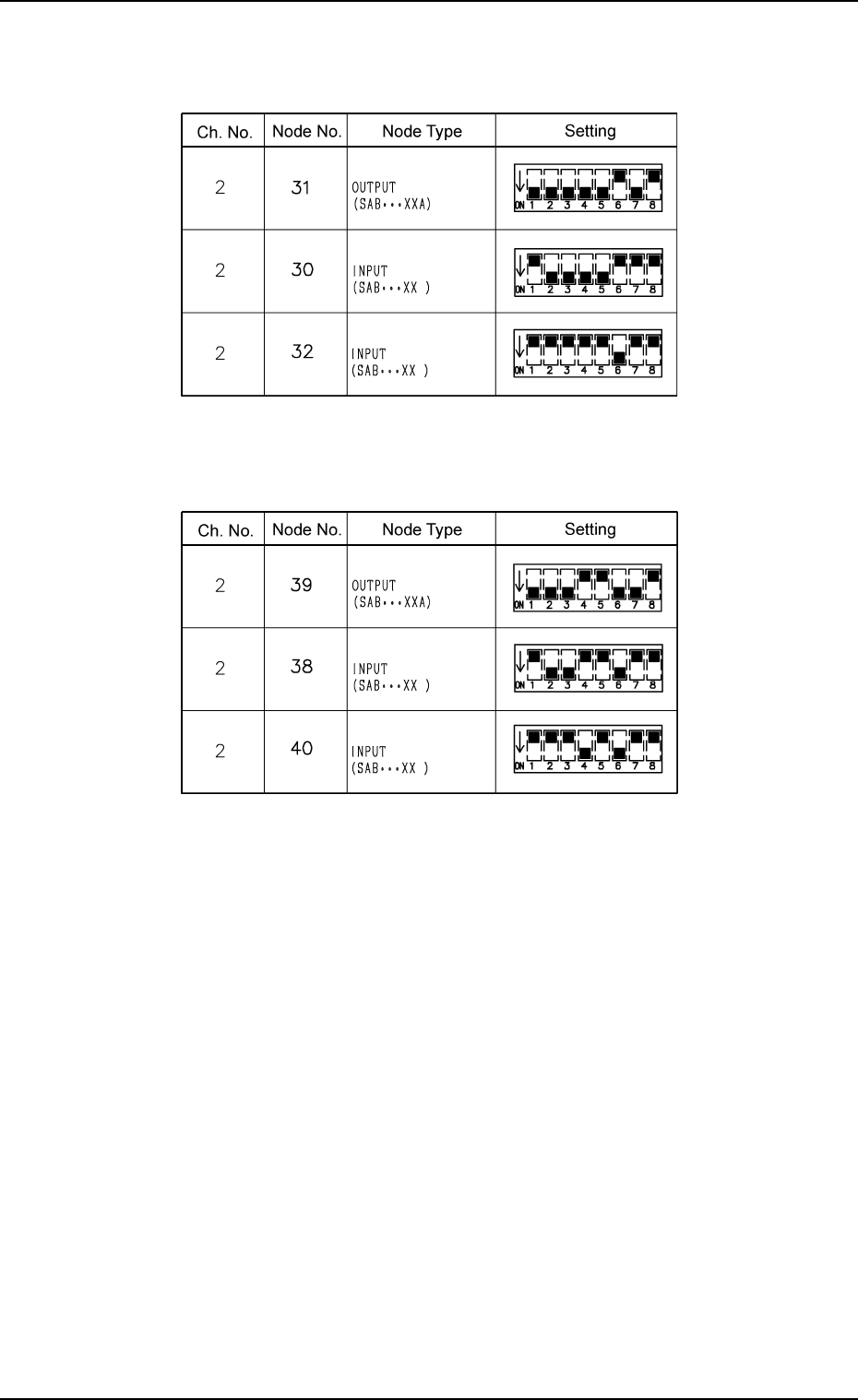

Setting of Tray R SDS Nodes (Option)

Table 4C12

Setting of Tray L SDS Nodes (Option)

Tg0860-PM-MM

8.1 INPUT CHECK Display

0305-001 3-184

Table 4C14

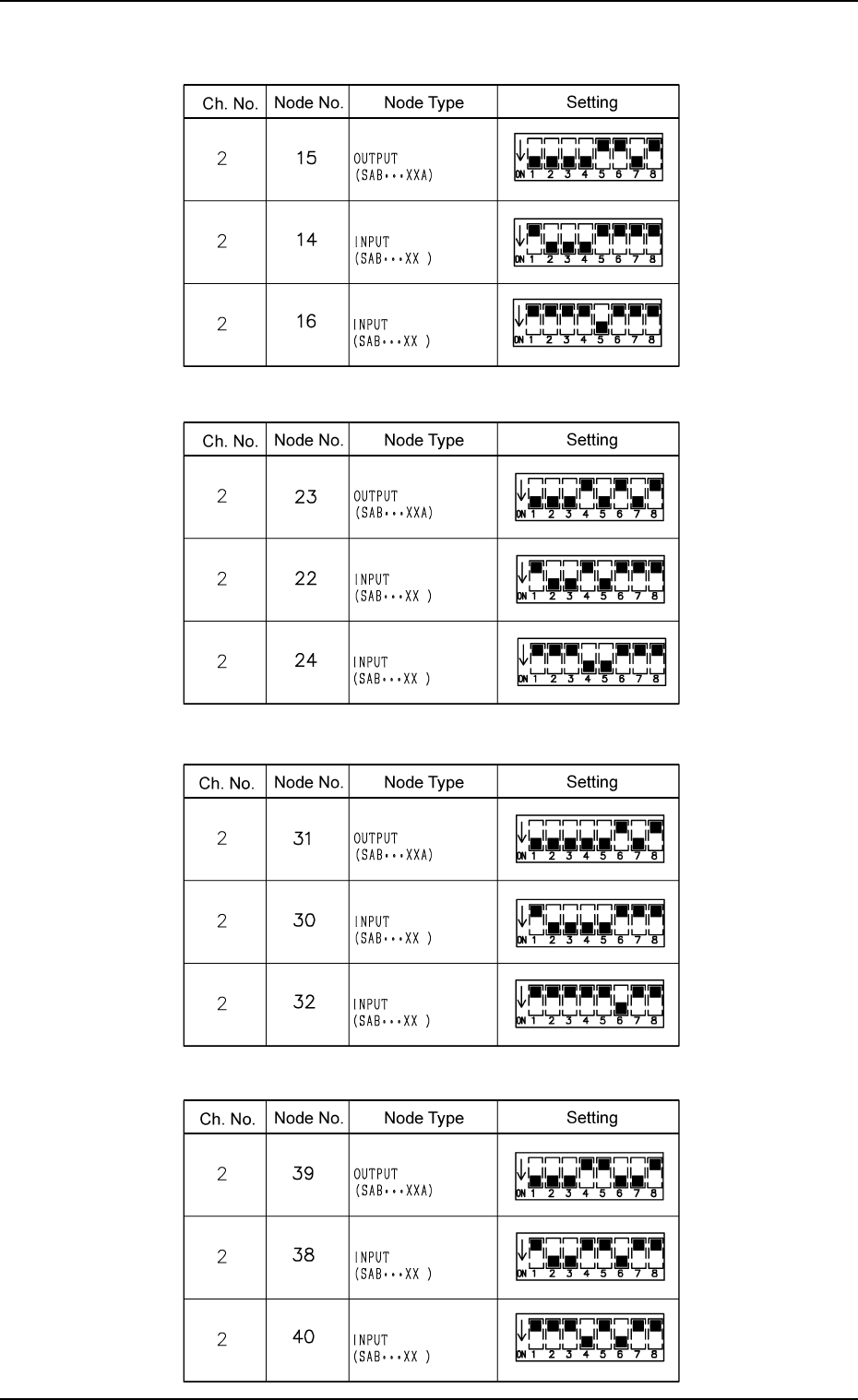

Stick Feeder Setting of SDS Nodes for Feeder Base R (A) (Option)

Table 4C15

Stick Feeder Setting of SDS Nodes for Feeder Base L (A) (Option)

Table 4C16

Stick Feeder Setting of SDS Nodes for Feeder Base R (B) (Option)

Table 4C17

Stick Feeder Setting of SDS Nodes for Feeder Base L (B) (Option)
