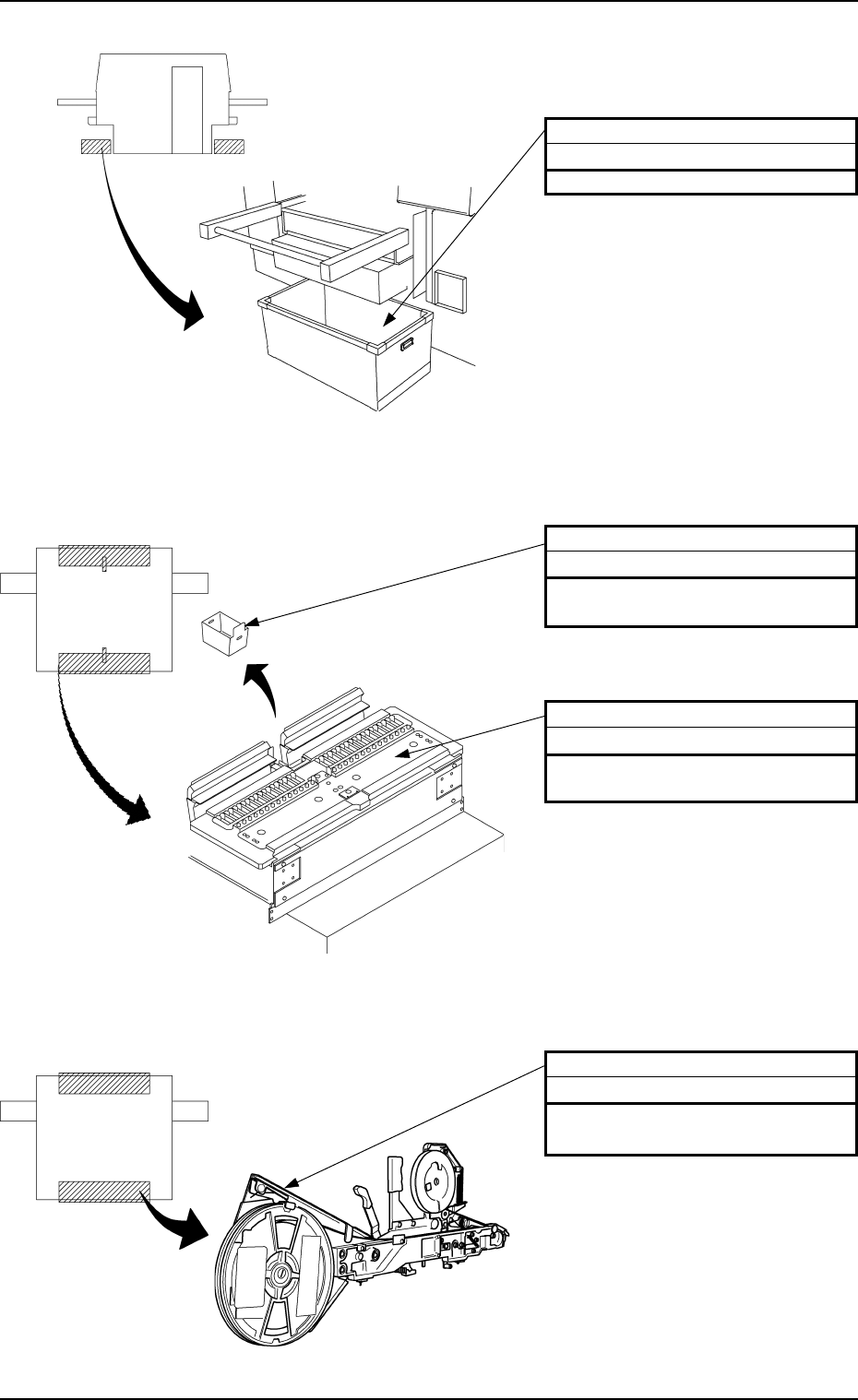

Fig. 4A10 Scrap Box
Fig. 4A11 Feeder Base and Scrap Box
Fig. 4A12 Component Supply Section (Feeder)
4. Daily Maintenance
1-8
Component Discharge Box
Abandonment
Remove the components accumu-
lated in the box.
Whole Body of Tape Feeder
Checking and Cleaning
Check it for damage or dirt. Clean
the tape feeder if it is dirty.
Upper Surface of Feeder Base
Cleaning
Remove the waste and foreign mate-
rial.
Beam B Side Beam A Side
Beam B Side
Beam A Side
Beam A Side
Beam B Side
Empty Tape Box
Abandonment
Remove the empty tapes.
0305-001 Tg0860-PM-MM
5. Weekly Maintenance
Table 4A6
5. Weekly Maintenance
1-9
Beam A Side
Drain
Cleaning
Drain water according to the following procedure.
(1) Place a container under the drain outlet.
(2) Turn slowly the cap on the bottom of the outer case
of each air filter in the direction of Arrow A.
Note: Take the greatest care because dirty water will
splash out from the outlet if the cap is turned
too much.
Ca
p
A
Fig. 4A13 Air Regulator
Maintenance Spots Check
Name
Fig.
No.
Description Grease
Cleaning
Tools,
Nozzles, etc.
Air Regulator Drain 4A13 Cleaning − − − Container,
etc.
Component
Recognition
Section
Protective Glass of
the Component
Recognition Camera
4A14 Cleaning − − − Rag, Air
Blow for
Camera
Upper Surface of
Fiducial Mark
4A14 Cleaning − − − Rag
Component Discharge
Box
4A14 Abandonment − − − − − − − − −
PCB Positioning
Section
Upper Surface of
Backup Table
4A15 Cleaning − − − Vacuum
Cleaner
Component
Supply Section
(Feeder)
Component Pick-Up
Position of Tape
Feeder
4A16 Cleaning − − − − − − − − −
0305-001 Tg0860-PM-MM
5. Weekly Maintenance
1-10
Fig. 4A15 PCB Positioning Section
Upper Surface of Fiducial Mark
Cleaning
Remove dirt and dust using a rag.
Component Discharge Box
Abandonment
Remove the components accumu-
lated in the box.
Protective Glass of the Compo-
nent Recognition Camera
Cleaning
Drop dirt and dust into the compo-
nent discharge box using the air blow
for the camera. If the protective glass
is dirty with grease, remove it using
a rag.
Fig. 4A14 Component Recognition Section
Beam A Side
Beam B Side
Beam A Side
Beam B Side
PCB Positioning Section
Cleaning
Clean dirt and dust on the upper sur-
face of the PCB backup table using a
vacuum cleaner.
