10.7 HDD/FDD OPERATION - RECALL MESSAGES Display
0305-001 3-209
10.7 HDD/FDD OPERATION - RECALL MESSAGES
Display
When the [RECALL MESSAGES] key is pressed at the “HDD/FDD OPERA-
TION” display, the following display appears on the screen.
Notes: (a) This display can be opened only when the machine is in the
“STOP” mode and the recalled data (recalled messages) is not
exchanged between the machine and the programming device
(option).
(b) While this display is active, the recalled data (recalled messages)
cannot be exchanged between the machine and the programming
device.
The [ZERO] and [READY] buttons also become invalid.
Refer to “10.3 HDD/FDD OPERATION - OFFSET DATA Display of Section
3” for the detailed information on how to save or delete the recalled data (re-
called messages).
Fig. 4C357
Tg0860-PM-MM
10.8 HDD/FDD OPERATION - COMPONENT LIBRARY (ALL) Display
0307-002 3-210
10.8 HDD/FDD OPERATION - COMPONENT LIBRARY
(ALL) Display

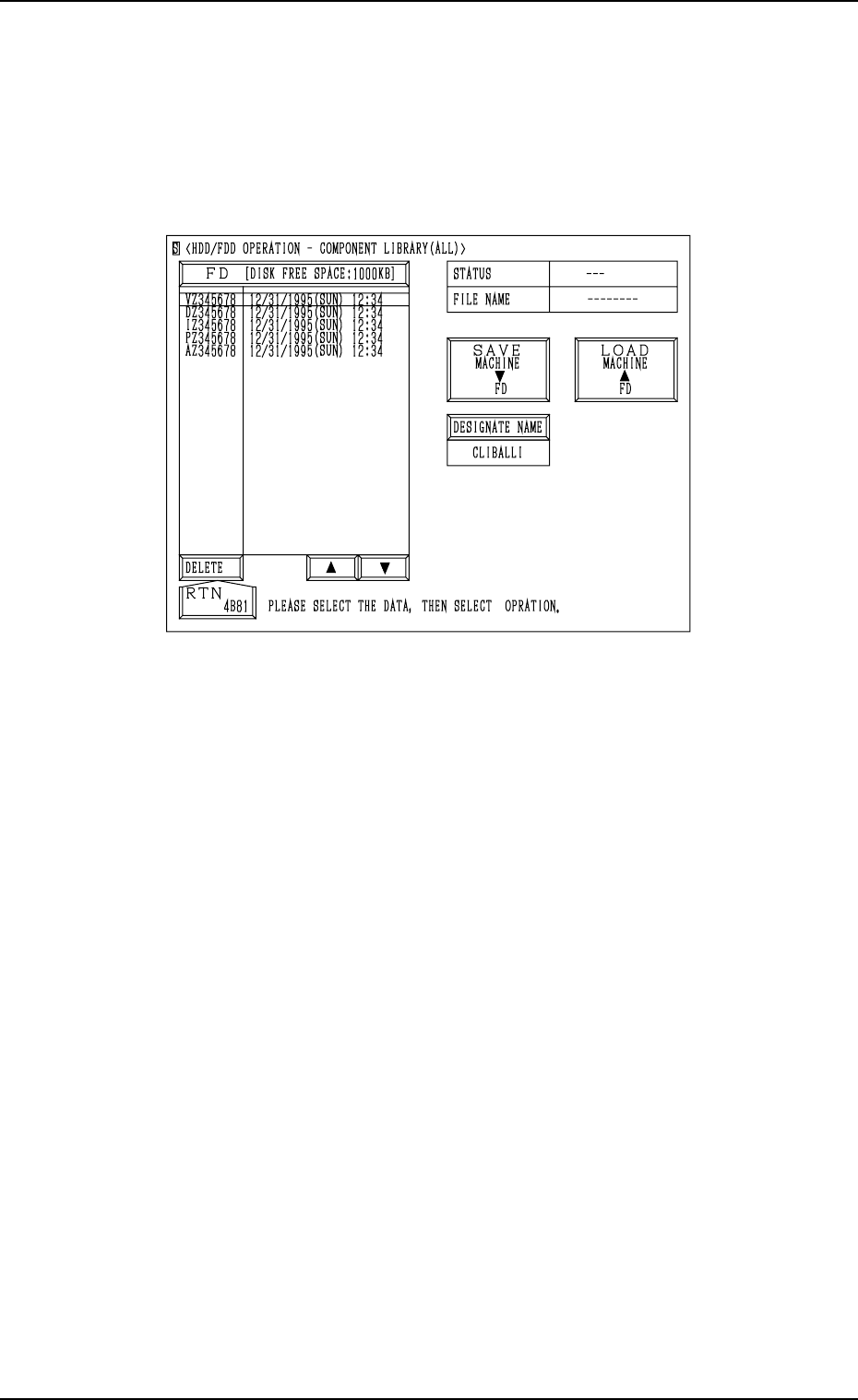

When the [COMP. LIBRARY DATA (ALL)] key is pressed at the “HDD/
FDD OPERATION” display, the following display appears on the screen.
Notes: (a) This display can be opened only when the machine is in the
“STOP” mode and the component library data is not exchanged
between the machine and the programming device (option).
(b) While this display is active, the component library data cannot be
exchanged between the machine and the programming device.
The [ZERO] and [READY] buttons also become invalid.
(c) During saving and reading, this display cannot be changed to oth-
ers.
Refer to “10.3 HDD/FDD OPERATION - OFFSET DATA Display of Section
3” for the detailed information on how to save, load, or delete the component
library data.
Fig. 4C358
Tg0860-PM-MM
10.9 HDD/FDD OPERATION - COMPONENT LIBRARY (EACH) Display
0307-001 3-211
10.9 HDD/FDD OPERATION - COMPONENT LIBRARY
(EACH) Display

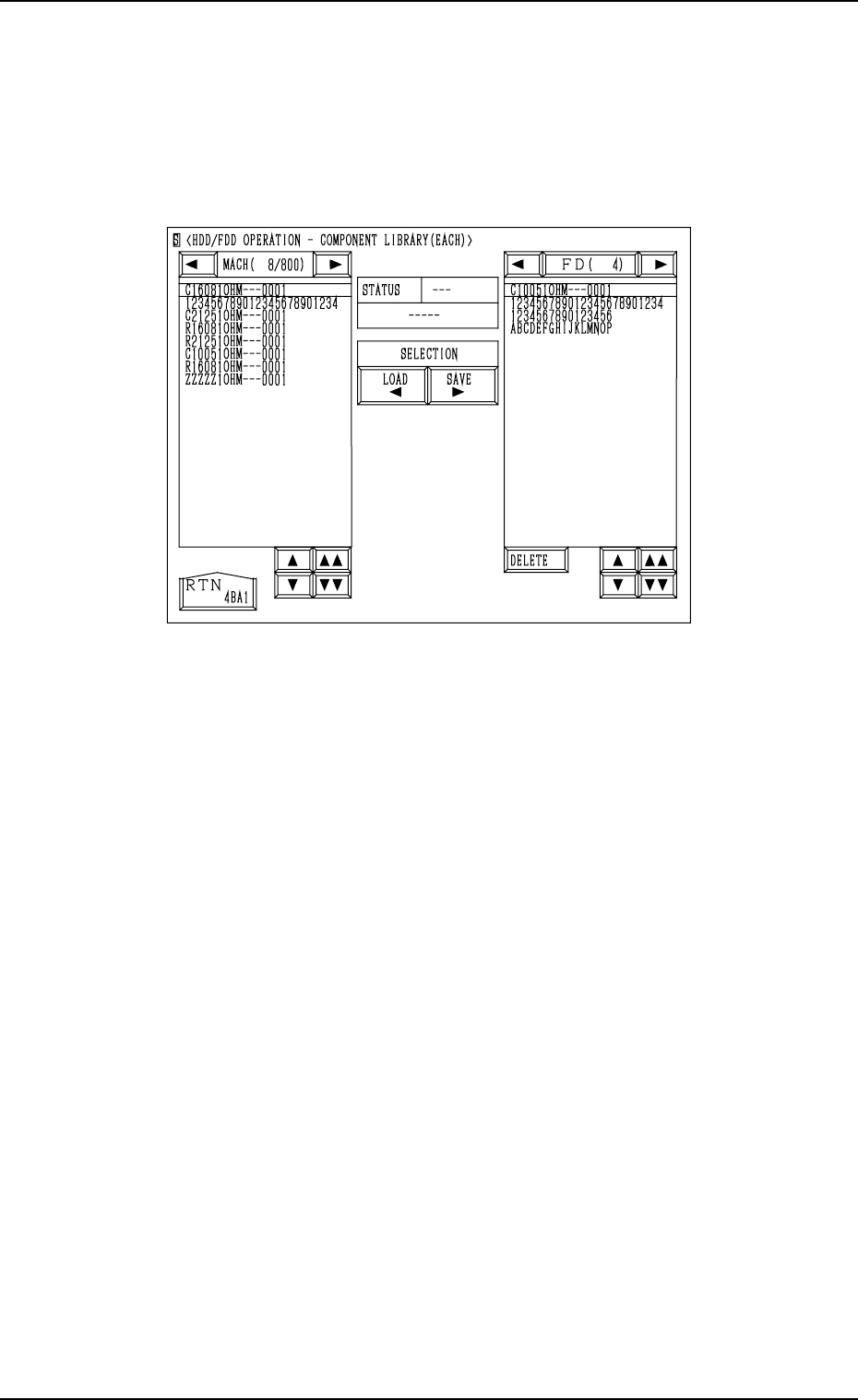

When the [COMP. LIBRARY DATA (EACH)] key is pressed at the “HDD/
FDD OPERATION” display, the following display appears on the screen.
Notes: (a) This display can be opened only when the machine is in the “STOP”
mode and the component library data is not exchanged between
the machine and the programming device (option).
(b) While this display is active, the component library data cannot be
exchanged between the machine and the programming device.
The [ZERO] and [READY] buttons also become invalid.
(c) During saving and reading, this display cannot be changed to oth-
ers.
Refer to “10.2 SAVE/LOAD PATTERN PROGRAM Display” for the de-
tailed information on how to save, load, or delete the component library data.
Fig. 4C359
