0305-001 Tg0860-PM-MM 1-12 T able 4A7 6. Monthly Maintenance Note: Grease Symbols DE1 : DAPHNE EPONEX GREASE No.1 NM1 : NEW MOL YNOC GREASE No.1 6. Monthly Maintenance Maintenance Spots Check Name Fig. No. D e s c r i p …
0305-001 Tg0860-PM-MM
5. Weekly Maintenance
1-11
Component Pick-Up Position of
Tape Feeder
Cleaning
Remove adhering dirt, etc., with a
brush whenever necessary.

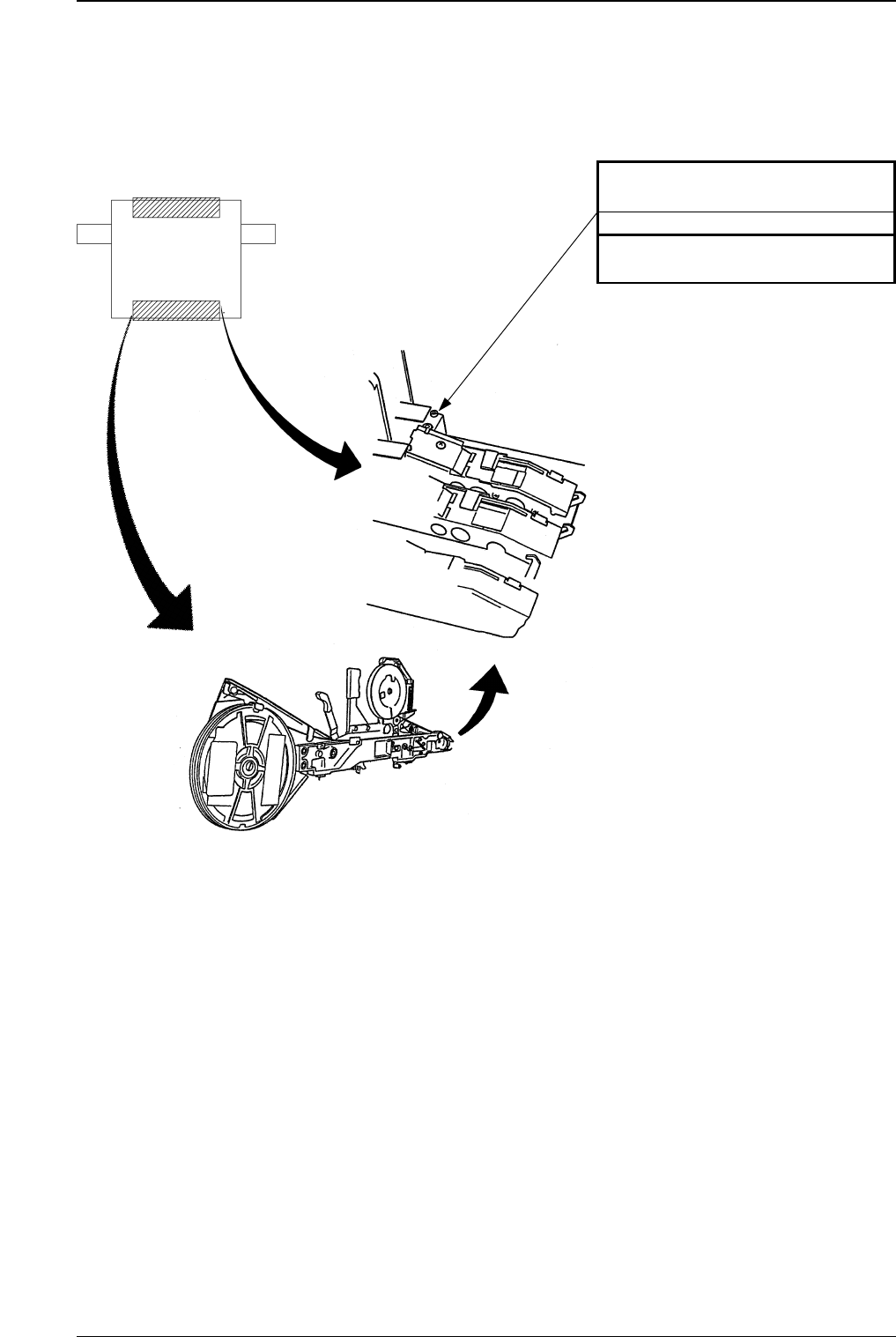

Fig. 4A16 Component Supply Section (Feeder)
Beam A Side
Beam B Side
0305-001 Tg0860-PM-MM
1-12
Table 4A7
6. Monthly Maintenance
Note: Grease Symbols
DE1 : DAPHNE EPONEX GREASE No.1
NM1 : NEW MOLYNOC GREASE No.1
6. Monthly Maintenance
Maintenance Spots Check
Name
Fig.
No.
Description Grease
Cleaning
Tools,
Nozzles, etc.
Teaching Plate
Section
Teaching Plate
(Component
Recognition Offset
Jig), Position of
Teaching Plate, Back
Light Stage
4A17 Checking and
Cleaning
− − − Air Blow for
Camera
Nozzle Stocker Cam Follower 4A18 Cleaning and
Lubrication
− − − Oiled Rag,
NM1, Brush
Nozzle Storage
Section
4A18 Cleaning − − − Rag
Inside of Vacuum
Nozzle
4A19 Cleaning − − − Air Gun
Hole of Vacuum
Nozzle
4A19 Cleaning − − − Air Gun
Vacuum Nozzle End 4A19 Cleaning − − − Rag
Placement Head Vacuum Filter 4A20 Checking − − − Vacuum
Filter,
Replacement
Jig
0305-001 Tg0860-PM-MM
1-13

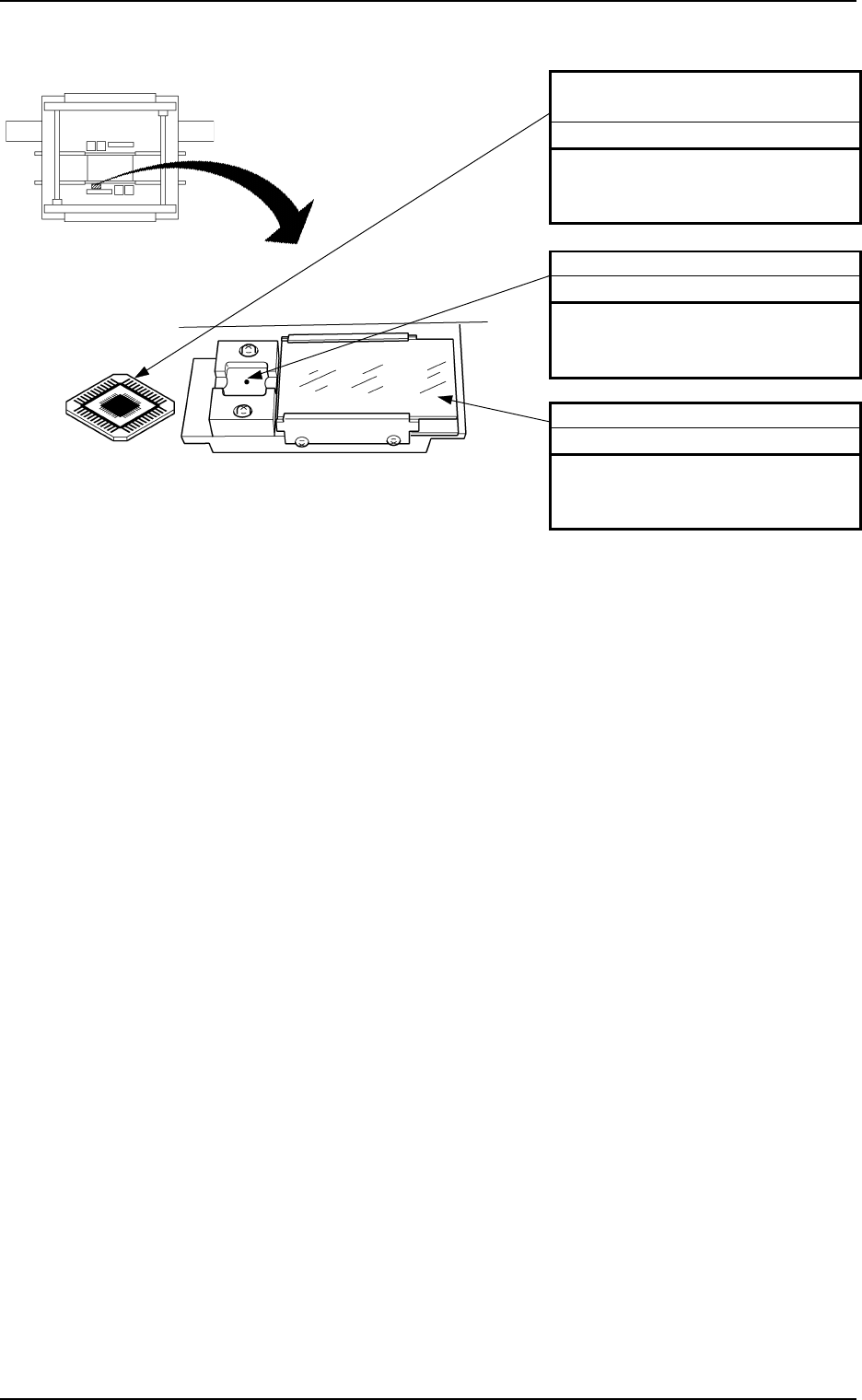

Fig. 4A17 Teaching Plate Sec-
tion
Teaching Plate (Component
Recognition Offset Jig)
Checking and Cleaning
• Check for any damage.
• Clean it using air blow for the cam-
era.
Position of Teaching Plate
Checking and Cleaning
• Check for any damage.
• Clean it using air blow for the cam-
era.
Back Light Stage
Checking and Cleaning
• Check for any damage.
• Clean it using air blow for the cam-
era.
Beam A Side
Beam B Side
Note: Sebum nor oil, etc., should not adhere to the teaching plate (component rec-
ognition offset jig), the position of the teaching plate, and the back light stage.
If sebum or oil, etc., adheres, wipe it off with a lens cleaning cloth which
contains a small amount of alcohol.
6. Monthly Maintenance
