0305-001 Tg0860-PM-MM 1-14 Fig. 4A19 V acuum Nozzle 6. Monthly Maintenance Inside of V acuum Nozzle Cleaning Blow air to the inside of the vacuum nozzle. Hole of V acuum Nozzle Cleaning Blow air to the hole of the vacuum…

0305-001 Tg0860-PM-MM

1-13

Fig. 4A17 Teaching Plate Sec-

tion

Teaching Plate (Component

Recognition Offset Jig)

Checking and Cleaning

• Check for any damage.

• Clean it using air blow for the cam-

era.

Position of Teaching Plate

Checking and Cleaning

• Check for any damage.

• Clean it using air blow for the cam-

era.

Back Light Stage

Checking and Cleaning

• Check for any damage.

• Clean it using air blow for the cam-

era.

Beam A Side

Beam B Side

Note: Sebum nor oil, etc., should not adhere to the teaching plate (component rec-

ognition offset jig), the position of the teaching plate, and the back light stage.

If sebum or oil, etc., adheres, wipe it off with a lens cleaning cloth which

contains a small amount of alcohol.

6. Monthly Maintenance

0305-001 Tg0860-PM-MM

1-14

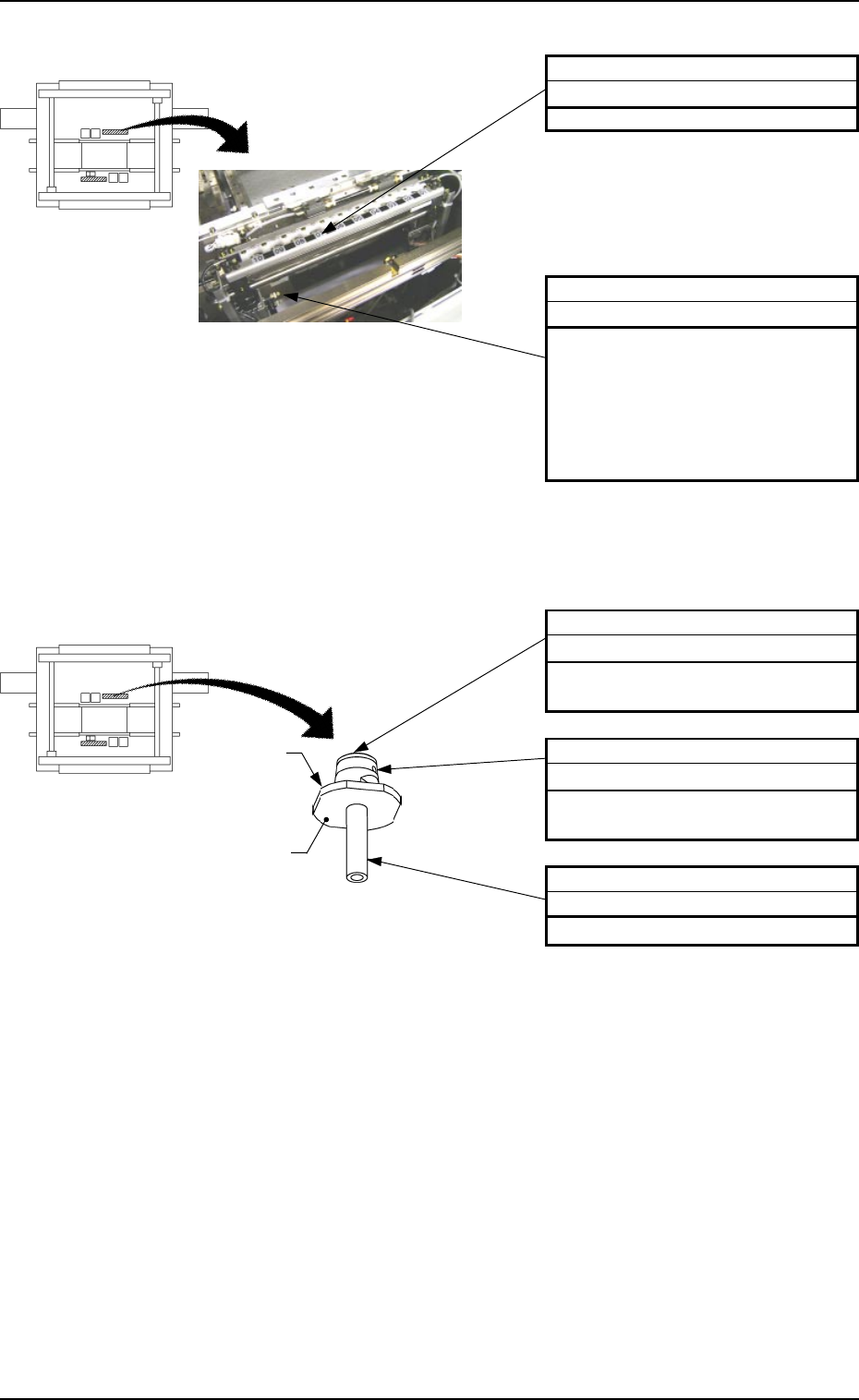

Fig. 4A19 Vacuum Nozzle

6. Monthly Maintenance

Inside of Vacuum Nozzle

Cleaning

Blow air to the inside of the vacuum

nozzle.

Hole of Vacuum Nozzle

Cleaning

Blow air to the hole of the vacuum

nozzle.

Vacuum Nozzle End

Cleaning

Clean it with a rag.

Fig. 4A18 Nozzle Stocker

Nozzle Storage Section

Cleaning

Remove dirt and dust using a rag.

Cam Follower

Cleaning and Lubrication (NM1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Apply new grease with a brush,

etc.

Beam A Side

Beam B Side

Beam A Side

Beam B Side

Note: Sebum nor oil, etc., should not adhere to the surface of the diffusion plate.

Do not use a rag to wipe off dirt.

Refer to “1.7 Vacuum Nozzles of Section 2 in Volume 1” for details.

Diffusion

Plate

Note

0305-001 Tg0860-PM-MM

1-15

Fig. 4A20 Placement Head

Vacuum Filter

Checking

Remove the vacuum filter with the

vacuum filter replacement jig (at-

tached) and check for dirt.

Replace the filter with a new one

when it is stained excessively.

Refer to “2.2 Replacement Procedure

of Vacuum Filter” for details.

Beam A Side

Beam B Side

6. Monthly Maintenance
