0305-001 Tg0860-PM-MM 7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month) Notes: (a ) Perform break-in after lubrication. After a proper break-in, wipe off any dropped grease with an oiled rag. (b) Greas…

0305-001 Tg0860-PM-MM

1-15

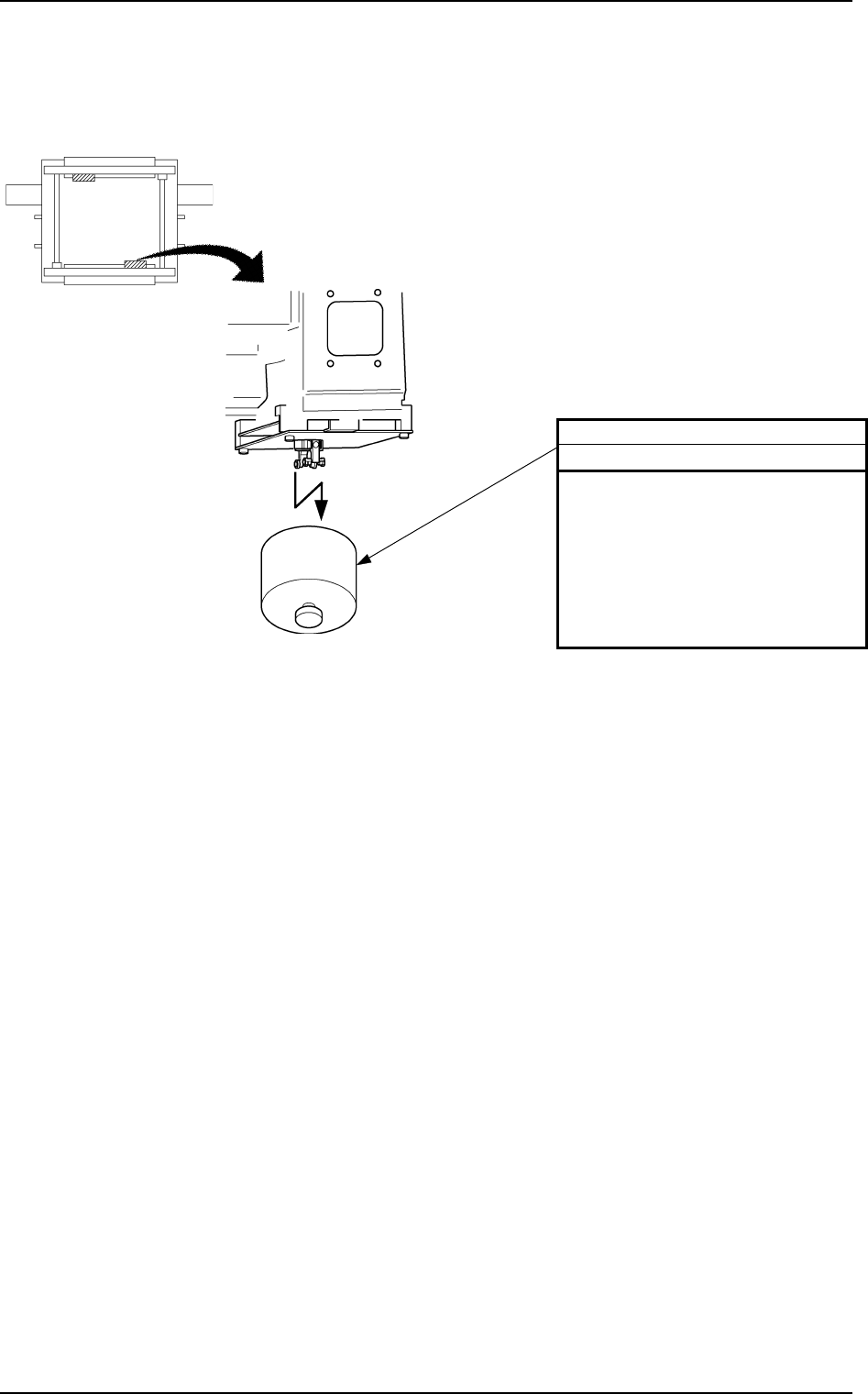

Fig. 4A20 Placement Head

Vacuum Filter

Checking

Remove the vacuum filter with the

vacuum filter replacement jig (at-

tached) and check for dirt.

Replace the filter with a new one

when it is stained excessively.

Refer to “2.2 Replacement Procedure

of Vacuum Filter” for details.

Beam A Side

Beam B Side

6. Monthly Maintenance

0305-001 Tg0860-PM-MM

7. Maintenance (Every 3 Months after Initial

Maintenance in 1 Month)

Notes: (a) Perform break-in after lubrication. After a proper break-in, wipe off

any dropped grease with an oiled rag.

(b) Grease Symbols

DE1 : DAPHNE EPONEX GREASE No.1

NM1 : NEW MOLYNOC GREASE No.1

1-16

7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month)

Maintenance Spots Check

Name

Fig.

No.

Description Grease

Cleaning

Tools,

Nozzles, etc.

Feeder Base Cam and Cam Follower 4A21 Lubrication

NM1

Brush or

Cloth

X-Axis Ball Screw

(2 nipples)

4A22 Cleaning and

Lubrication

DE1

Oiled rag,

Hand or Brush

X-Axis Linear Guide

(8 nipples)

4A23 Cleaning and

Lubrication

DE1

Oiled rag,

H Type

Y-Axis Ball Screw 4A24 Cleaning and

Lubrication

DE1

Oiled rag,

Hand or Brush

X/Y Beam

(Beams A and B)

Y-Axis Linear Guide

(8 nipples)

4A24 Cleaning and

Lubrication

DE1

SPK-3C,

U and P

Types,

Oiled rag

Placement Head Ball Screw and Nut

(4 nipples)

Linear Guide

4A25 Cleaning and

Lubrication DE1

U and

N Types,

Oiled rag

Large Linear Guide

(2 nipples)

4A26 Cleaning and

Lubrication

DE1

Oiled rag, N

and U Types

Small Linear Guide 4A26 Cleaning and

Lubrication

DE1

Oiled rag,

Hand or Brush

Clamp Sections of

Tray Traverse

Cam Follower 4A26 Cleaning and

Lubrication

DE1

Oiled rag,

Hand or Brush

CAUTION

The ball screws and linear guides have a high main-

tenance priority.

The initial maintenance should be performed in one

month. After that, it should be performed every three

months.

Table 4A8

Tg0860-PM-MM

Beam A Side

Beam B Side

# #

Setscrews (10 places)

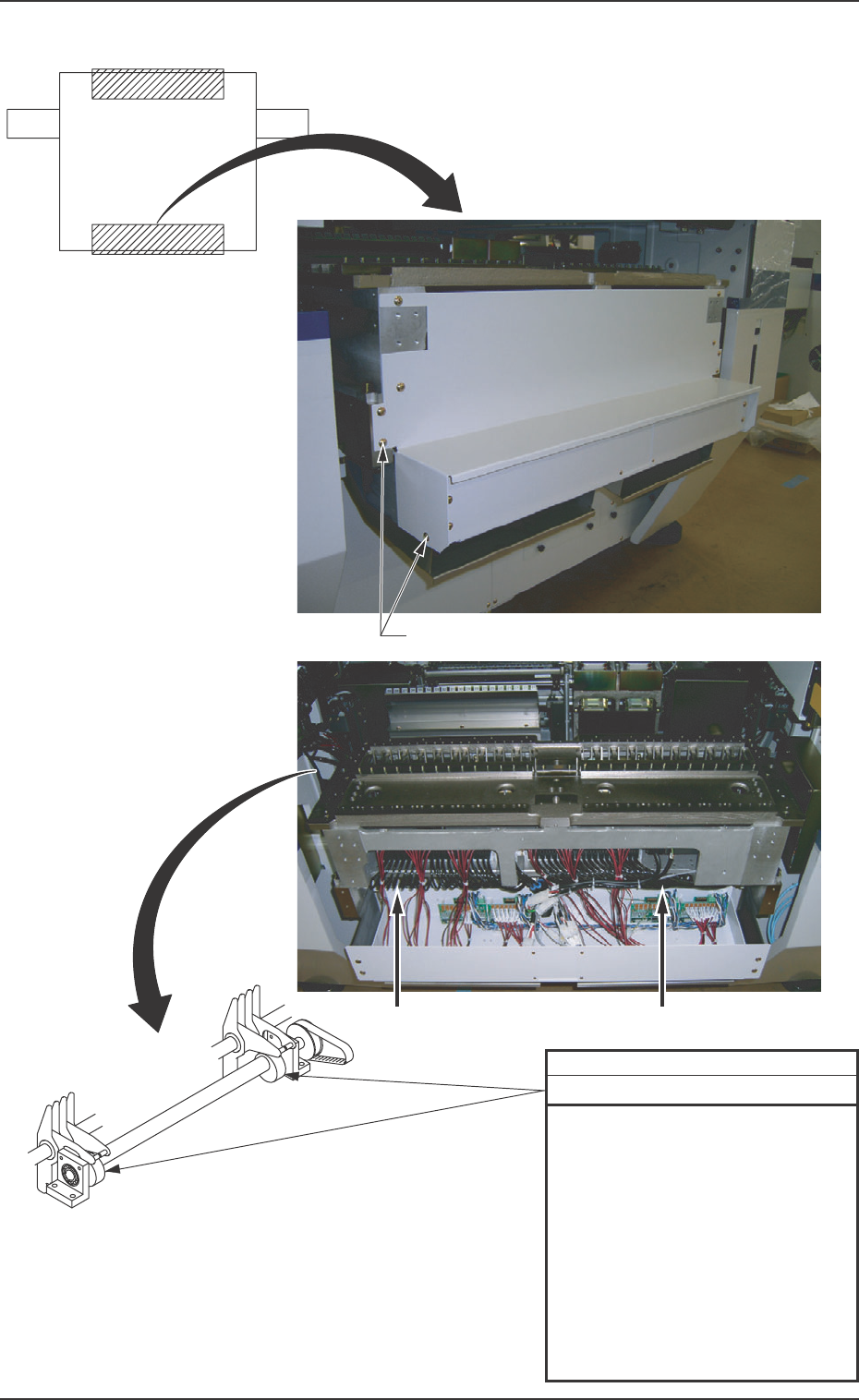

Fig. 4A21 Feeder Base

Cam and Cam Follower

Lubrication (NM1)

(1) Remove the setscrews (10 places)

and then remove the plate from

the side of the feeder base.

(2) Apply new grease with a brush, etc.

The cam and cam follower are lo-

cated in the depth of Arrow A.

Note: Lubricate it covering this

section with cloth, etc. to

avoid dropping grease

onto the wiring.

7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month)

0307-002 1-17
