0305-001 Tg0860-PM-MM 1-19 Nipple Nipple Nipple Nipple Fig. 4A24 X/Y Beam (Beams A and B) Y-Axis Beam A Side Beam B Side Fig. 4A25 Placement Head Y-Axis Ball Screw Cleaning and Lubrication (DE1) (1) W ipe off old grease …
0305-001 Tg0860-PM-MM
1-18

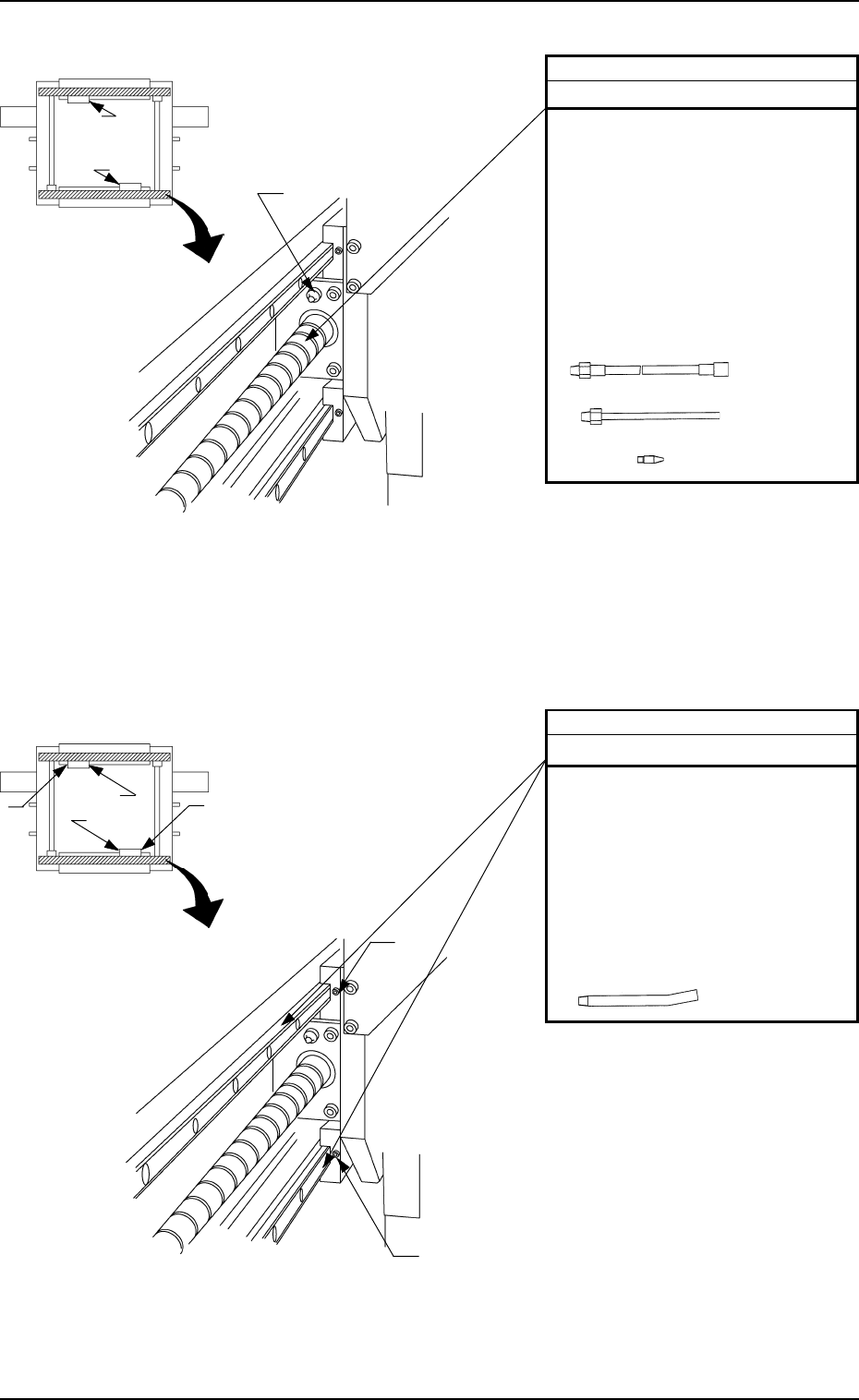

Fig. 4A22 X/Y Beam (Beams A and B) X-Axis
X-Axis Ball Screw
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Lubricate the 2 nipples with new
grease from a grease gun.
Note: The attachments to be
used are SPK-3C, U type
and P type.
Fig. 4A23 X/Y Beam (Beams A and B) X-Axis
Beam A Side
Beam B Side
X-Axis Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Lubricate the 8 nipples with new
grease from a grease gun.
Note: The attachment to be
used is H type.
SPK-3C
U Type
P Type
Beam A Side
Beam B Side
Nipple
Nipple
Nipple
2 nipples
2 nipples
2 nipples
2 nipples
Nipple
Nipple
H Type
7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month)
0305-001 Tg0860-PM-MM
1-19
Nipple
Nipple
Nipple
Nipple

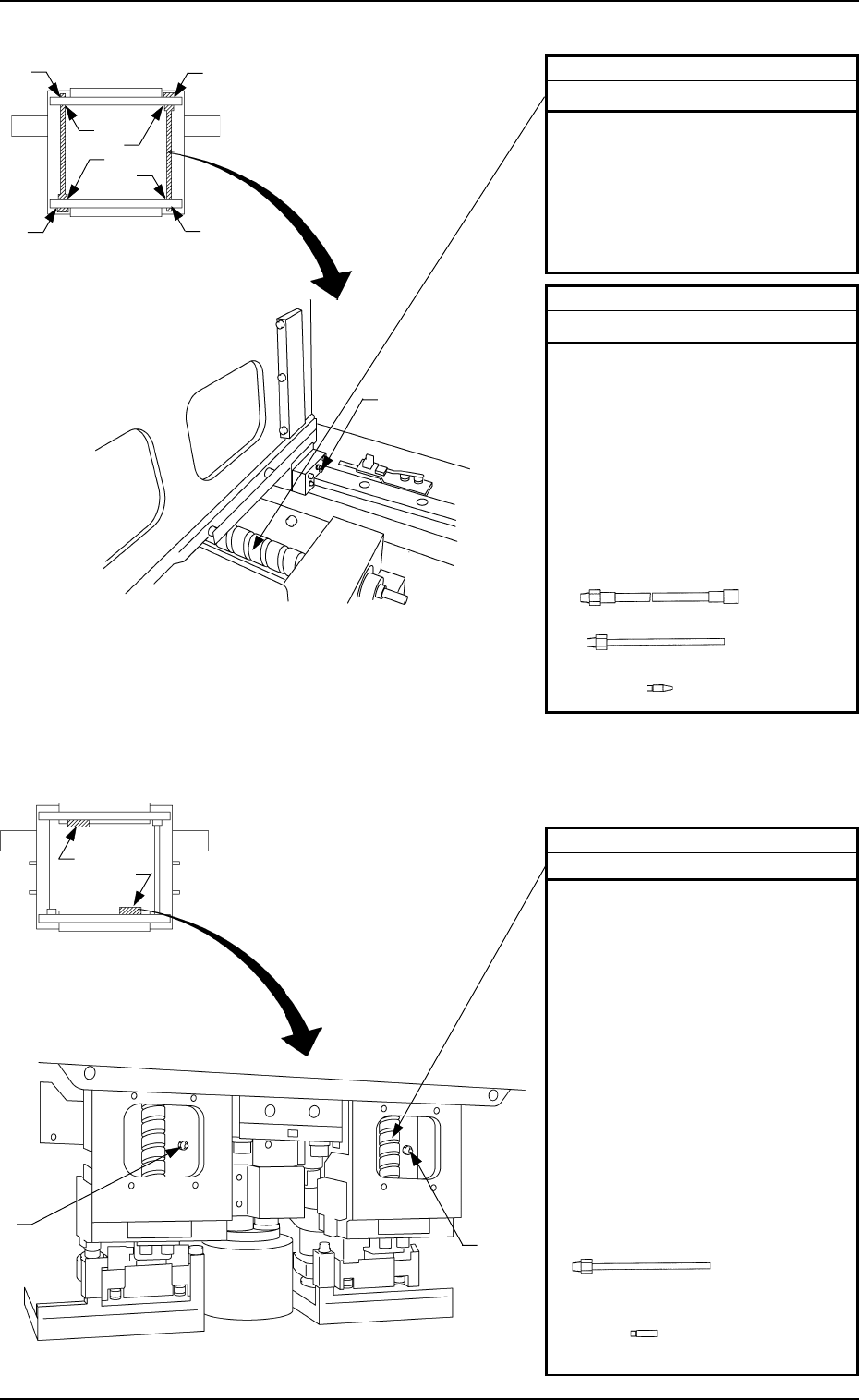

Fig. 4A24 X/Y Beam (Beams A and B) Y-Axis
Beam A Side
Beam B Side
Fig. 4A25 Placement Head
Y-Axis Ball Screw
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Apply new grease by hand or with
a brush.
Y-Axis Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Lubricate the 8 nipples with new
grease from a grease gun.
Note: The attachments to be
used are SPK-3C, U
type and P type.
SPK-3C
U Type
P Type
Ball Screw and Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Lubricate the 4 nipples with new
grease from a grease gun.
Notes: (a) For the lubrication
procedure, refer to
“10.1 Placement
Head and PCB Posi-
tioning Section”.
(b) The attachments to
be used are U type
and N type.
U Type
N Type
Nipple
Nipple
Beam A Side
Beam B Side
Nipple
Nipple
2 nipples
2 nipples
Nipple
Nipple
Nipple
7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month)
0305-001 Tg0860-PM-MM
1-20

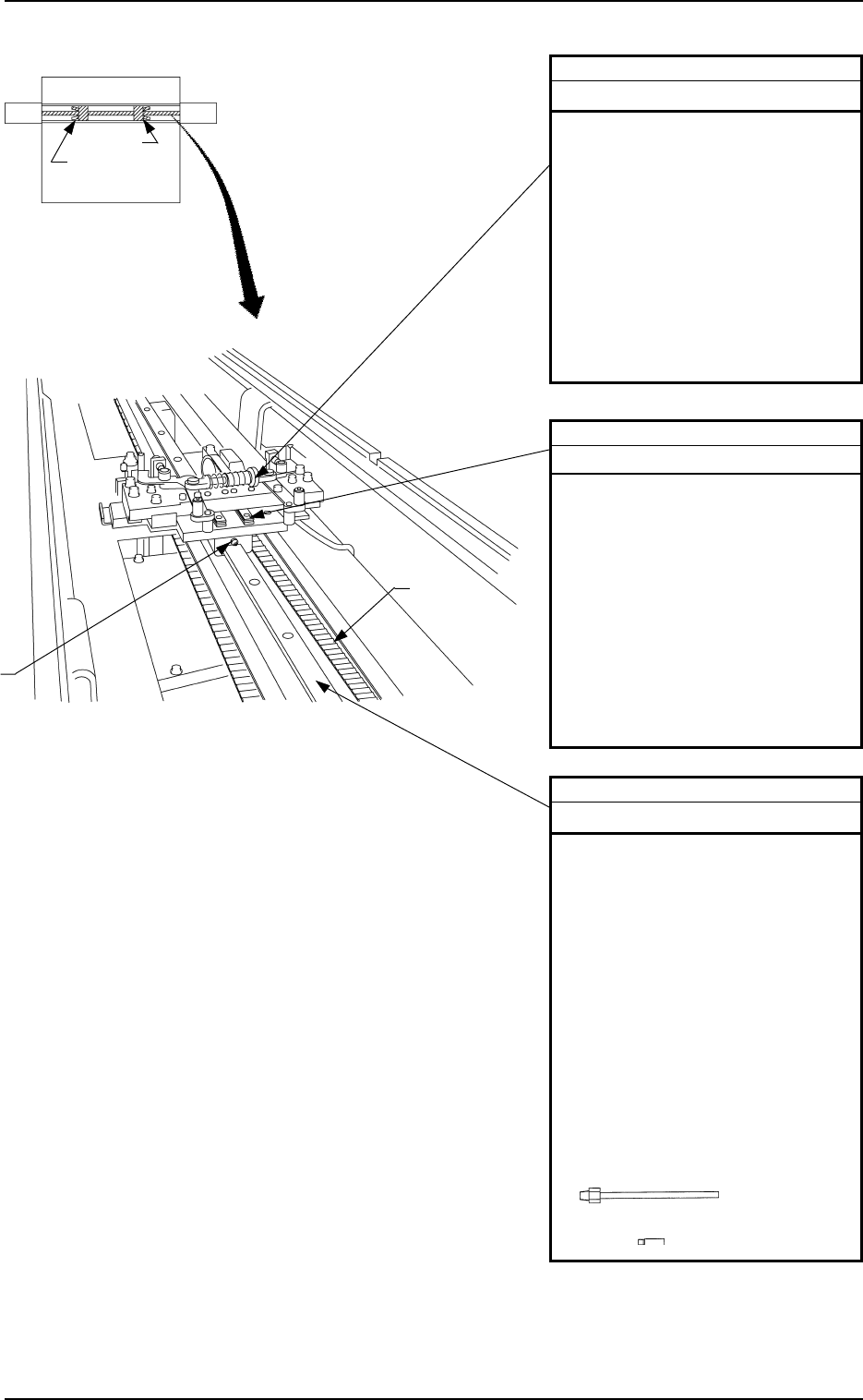

Fig. 4A26 Clamp Sections of Tray Traverse
Cam Follower
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Apply new grease by hand or with
a brush.
Note: For the lubrication
procedure, refer to
“10.2 Traverse Clamp
Section”.
Large Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Lubricate the 2 nipples with new
grease from a grease gun.
Notes: (a) For the lubrication
procedure, refer to
“10.2 Traverse
Clamp Section”.
(b) The attachments to
be used are U type
and N type.
Small Linear Guide
Cleaning and Lubrication (DE1)
(1) Wipe off old grease with an oiled
rag.
Note: Take care not to leave
any waste thread.
(2) Apply new grease by hand or with
a brush.
Note: For the lubrication
procedure, refer to
“10.2 Traverse Clamp
Section”.
Beam A Side
Beam B Side
Nipple
Nipple
Nipple
Belt
U Type
N Type
7. Maintenance (Every 3 Months after Initial Maintenance in 1 Month)
