0305-001 Tg0860-PM-MM 9. Maintenance (Every 6 Months) Notes: (a) Grease Symbols DE1 : DAPHNE EPONEX GREASE No.1 NM1 : NEW MOL YNOC GREASE No.1 KS64 : SILICONE GREASE KS64 (b) If SILICONE GREASE KS64 (SHIN-ETSU CHEMICAL C…

Tg0860-PM-MM

0307-002 1-22

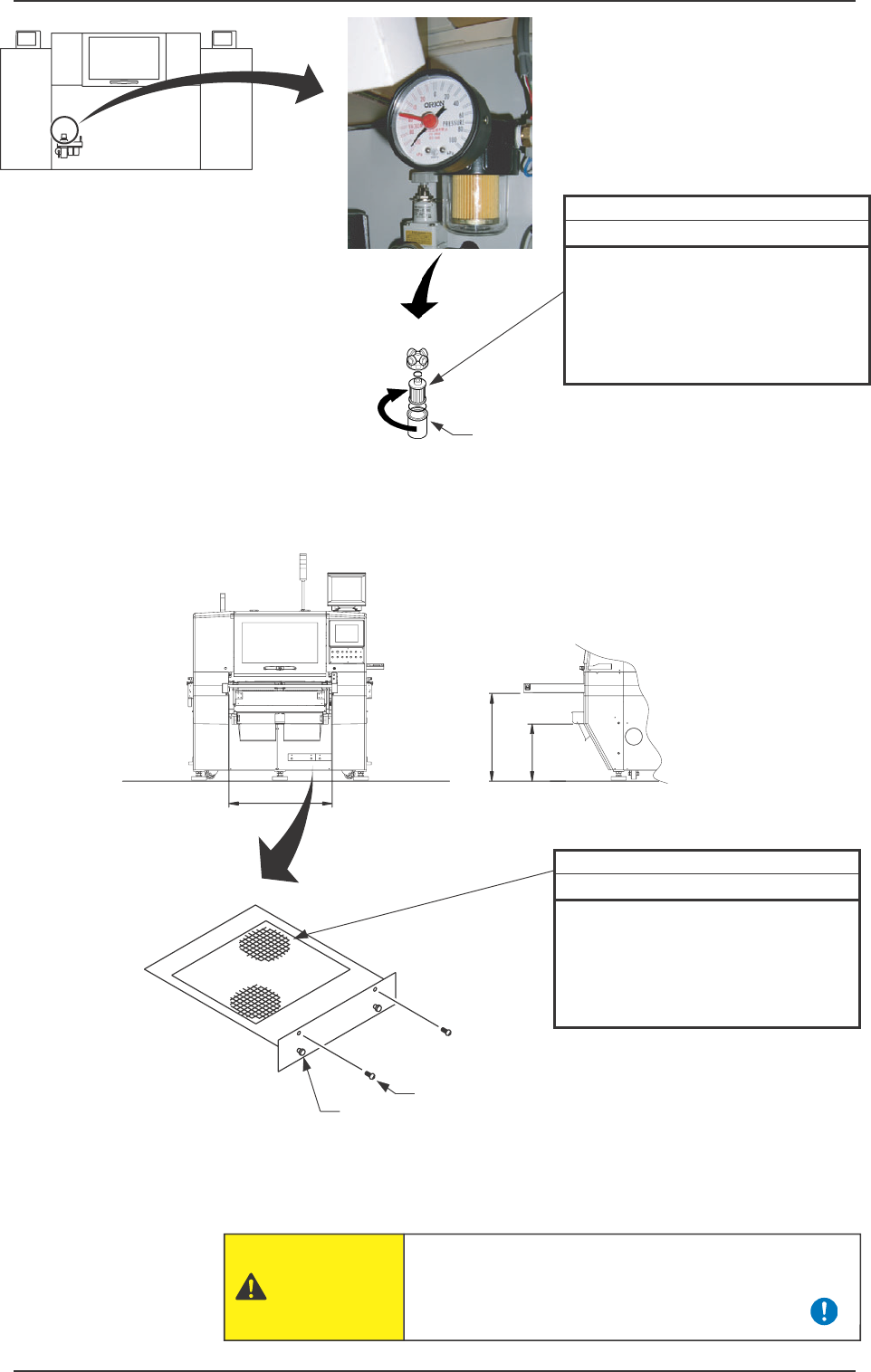

8. Maintenance (Every 3 Months)

Fig. 4A29 Control Box

Dust Filter

Cleaning

(1) After removing the setscrews,

draw it out, holding the knobs on

the right and left sides.

(2) Clean dirt and dust with a vacuum

cleaner.

Fig. 4A28 Vacuum Pressure System

Filter Case

Aggregated Vacuum Filter

Cleaning

(1) Remove the filter case by turn-

ing in the direction of Arrow C

and remove the inner filter.

(2) Blow off dust with compressed air.

Beam A side

Unit : mm

Note: The dimensions in the figures

are design values.

Knob

Setscrew

CAUTION

Use protective devices to avoid any accident which

may be caused due to the tight work space.

954

810

523

0305-001 Tg0860-PM-MM

9. Maintenance (Every 6 Months)

Notes: (a) Grease Symbols

DE1 : DAPHNE EPONEX GREASE No.1

NM1 : NEW MOLYNOC GREASE No.1

KS64 : SILICONE GREASE KS64

(b) If SILICONE GREASE KS64 (SHIN-ETSU CHEMICAL CO.) is not

available, use grease specified as follows.

Fluorine Type Grease, BARRIERTA IEL/V (NOK KLUBER)

When BARRIERTA IEL/V is used, gently wipe grease over spots to be

lubricated.

1-23

9. Maintenance (Every 6 Months)

Maintenance Spots Check

Name

Fig.

No.

Description Grease

Cleaning

Tools,

Nozzles, etc.

PCB Positioning

Section

Linear Guide 4A30 Cleaning and

Lubrication

DE1 Oiled Rag,

Hand or

Brush

Ball Spline

4 places

4A31 Cleaning and

Lubrication

DE1 Oiled Rag,

SPK-3C

Conveyor Linear Guides

(4 nipples)

4A32 Cleaning and

Lubrication

DE1 Oiled Rag, U

and N Types

Ball Screws and Nut 4A32 Cleaning and

Lubrication

DE1 Oiled Rag,

Hand or

Brush

Splines 4A32 Cleaning and

Lubrication

NM1 Oiled Rag,

Hand or

Brush

X-Axis

Side of Cable

4A33 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

X-Axis

Cable Fixing Position

4A33 Checking − − − − − − −

X-Axis

Upper/Lower Cable

Guides

4A33 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

Y-Axis

Side of Cable

4A34 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

Y-Axis

Cable Fixing Position

4A34 Checking − − − − − − −

X/Y Beam

(Beams A and B)

Y-Axis

Lower Cable Guide

4A34 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

Table 4A10

0305-001 Tg0860-PM-MM

1-24

Fig. 4A31 PCB Positioning Section

9. Maintenance (Every 6 Months)

Fig. 4A30 PCB Positioning Section

Linear Guide

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Apply new grease by hand or with

a brush.

Ball Spline

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Lubricate the 4 nipples with new

grease from a grease gun.

Notes: (a) For the lubrication

procedure, refer to

“10.1 Placement

Head and P.C.B. Po-

sitioning Section”.

(b) The attachment to

be used is SPK-3C.

SPK-3C

Beam A Side

Beam B Side

Beam A Side

Beam B Side

Nipple
