0305-001 Tg0860-PM-MM 1-24 Fig. 4A31 PCB Positioning Section 9. Maintenance (Every 6 Months) Fig. 4A30 PCB Positioning Section Linear Guide Cleaning and Lubrication (DE1) (1) W ipe off old grease with an oiled rag. Note:…

0305-001 Tg0860-PM-MM

9. Maintenance (Every 6 Months)

Notes: (a) Grease Symbols

DE1 : DAPHNE EPONEX GREASE No.1

NM1 : NEW MOLYNOC GREASE No.1

KS64 : SILICONE GREASE KS64

(b) If SILICONE GREASE KS64 (SHIN-ETSU CHEMICAL CO.) is not

available, use grease specified as follows.

Fluorine Type Grease, BARRIERTA IEL/V (NOK KLUBER)

When BARRIERTA IEL/V is used, gently wipe grease over spots to be

lubricated.

1-23

9. Maintenance (Every 6 Months)

Maintenance Spots Check

Name

Fig.

No.

Description Grease

Cleaning

Tools,

Nozzles, etc.

PCB Positioning

Section

Linear Guide 4A30 Cleaning and

Lubrication

DE1 Oiled Rag,

Hand or

Brush

Ball Spline

4 places

4A31 Cleaning and

Lubrication

DE1 Oiled Rag,

SPK-3C

Conveyor Linear Guides

(4 nipples)

4A32 Cleaning and

Lubrication

DE1 Oiled Rag, U

and N Types

Ball Screws and Nut 4A32 Cleaning and

Lubrication

DE1 Oiled Rag,

Hand or

Brush

Splines 4A32 Cleaning and

Lubrication

NM1 Oiled Rag,

Hand or

Brush

X-Axis

Side of Cable

4A33 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

X-Axis

Cable Fixing Position

4A33 Checking − − − − − − −

X-Axis

Upper/Lower Cable

Guides

4A33 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

Y-Axis

Side of Cable

4A34 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

Y-Axis

Cable Fixing Position

4A34 Checking − − − − − − −

X/Y Beam

(Beams A and B)

Y-Axis

Lower Cable Guide

4A34 Cleaning and

Lubrication

KS64 Oiled Rag,

Hand or

Brush

Table 4A10

0305-001 Tg0860-PM-MM

1-24

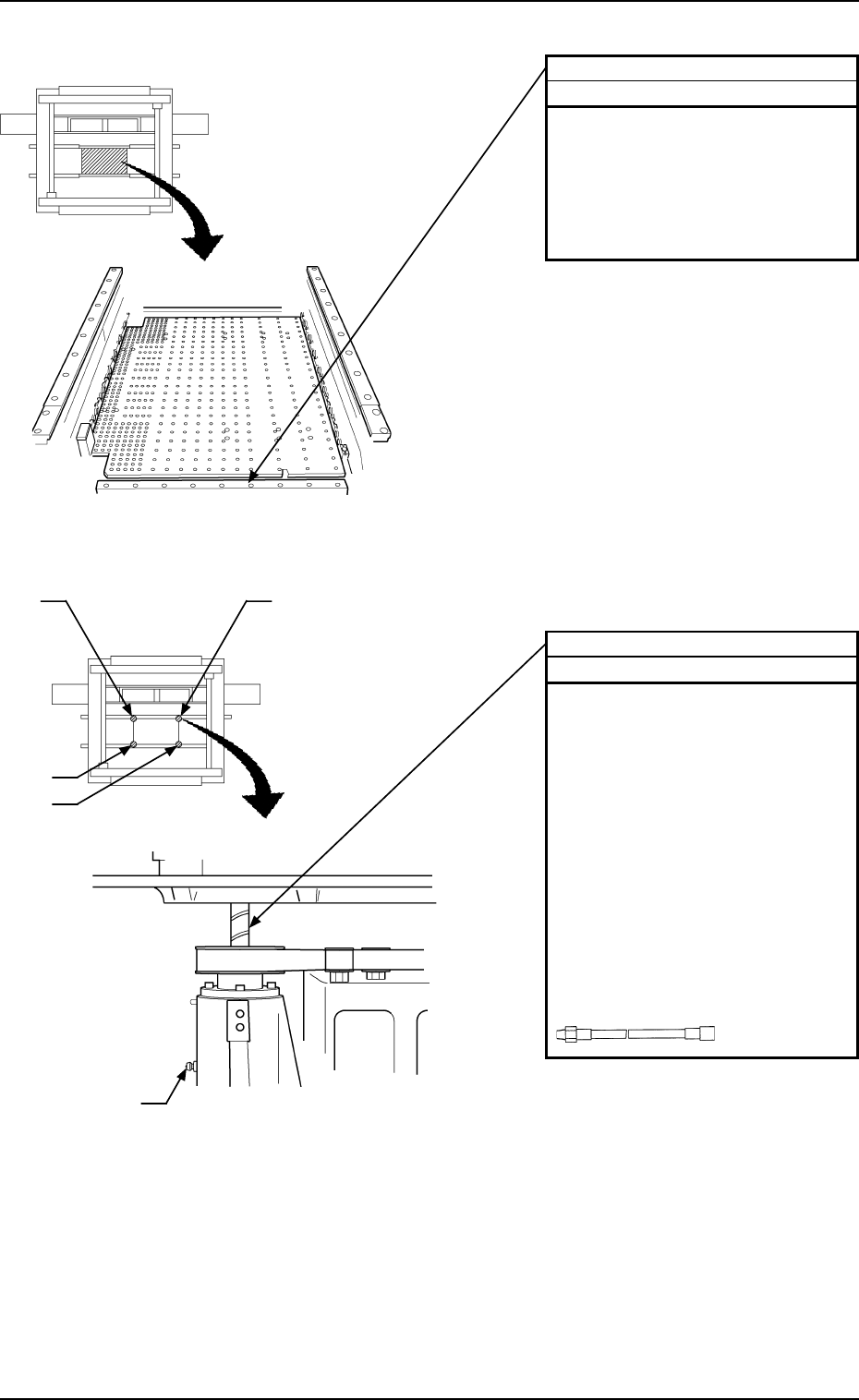

Fig. 4A31 PCB Positioning Section

9. Maintenance (Every 6 Months)

Fig. 4A30 PCB Positioning Section

Linear Guide

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Apply new grease by hand or with

a brush.

Ball Spline

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled

rag.

Note: Take care not to leave

any waste thread.

(2) Lubricate the 4 nipples with new

grease from a grease gun.

Notes: (a) For the lubrication

procedure, refer to

“10.1 Placement

Head and P.C.B. Po-

sitioning Section”.

(b) The attachment to

be used is SPK-3C.

SPK-3C

Beam A Side

Beam B Side

Beam A Side

Beam B Side

Nipple

0305-001 Tg0860-PM-MM

1-25

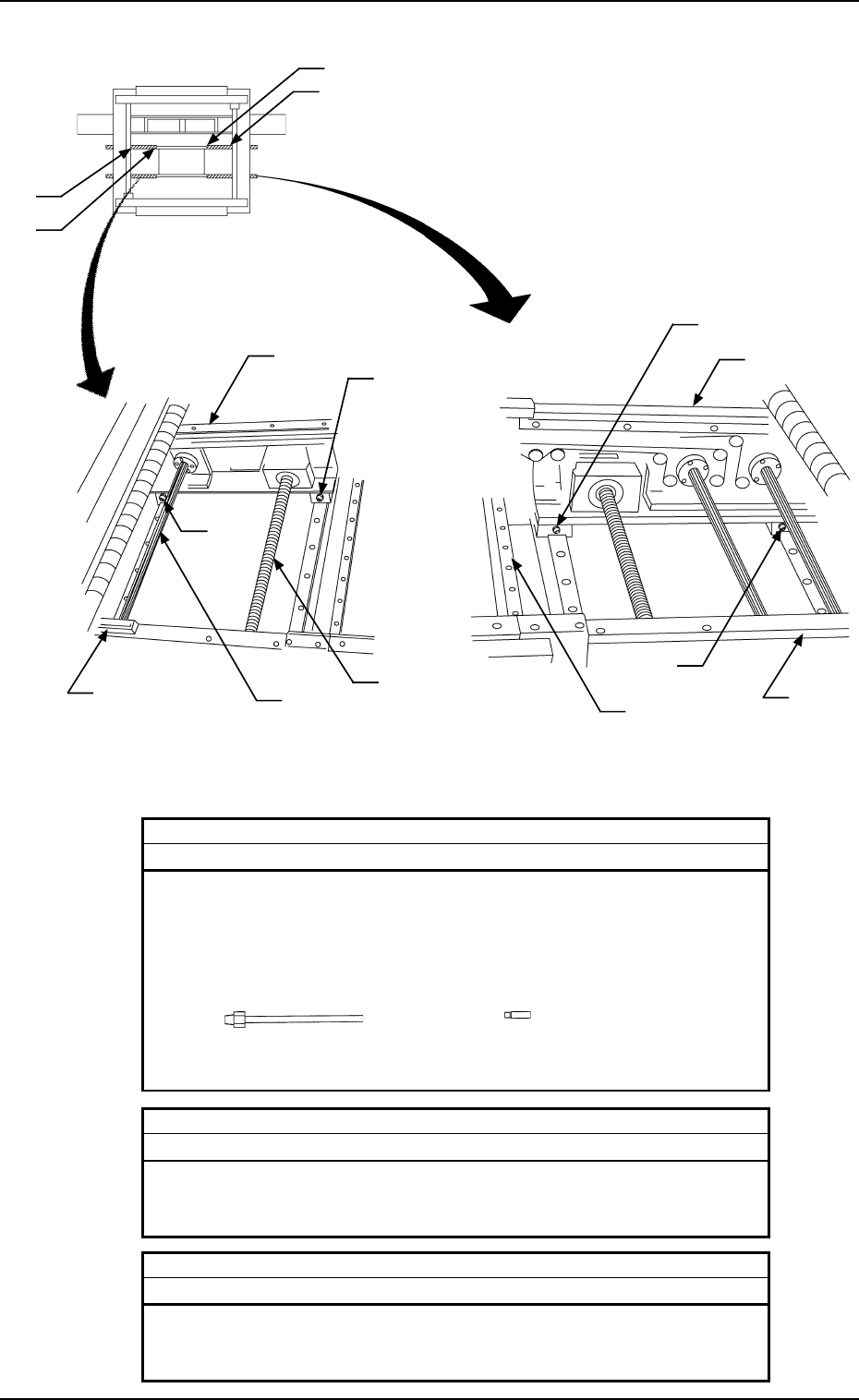

Fig. 4A32 Conveyor (Reference Point : FRONT)

9. Maintenance (Every 6 Months)

Linear Guide

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled rag.

Note: Take care not to leave any waste thread.

(2) Lubricate the 4 nipples with new grease from a grease gun.

Note: The attachments to be used are U type and N type.

U Type N Type

Ball Screws

Cleaning and Lubrication (DE1)

(1) Wipe off old grease with an oiled rag.

Note: Take care not to leave any waste thread.

(2) Apply new grease by hand or with a brush.

Splines

Cleaning and Lubrication (NM1)

(1) Wipe off old grease with an oiled rag.

Note: Take care not to leave any waste thread.

(2) Apply new grease by hand or with a brush.

Beam A Side

Beam B Side

Nipple

Fixed Chute

L Conveyor

R Conveyor

Spline

Ball Screw

Movable Chute

Nipple

Movable Chute

Nipple

Linear Guide

Nipple
