Tg0860-PM-MM 1.2 List of Important Servicing Parts Mechanical Parts T able 4B3 Electrical Parts T able 4B4 0307-002 2-2 1.2 List of Important Servicing Parts Listed below are the parts that may be consumed in several yea…

Tg0860-PM-MM0307-002 2-1

1. List of Consumables and Important Servicing Parts

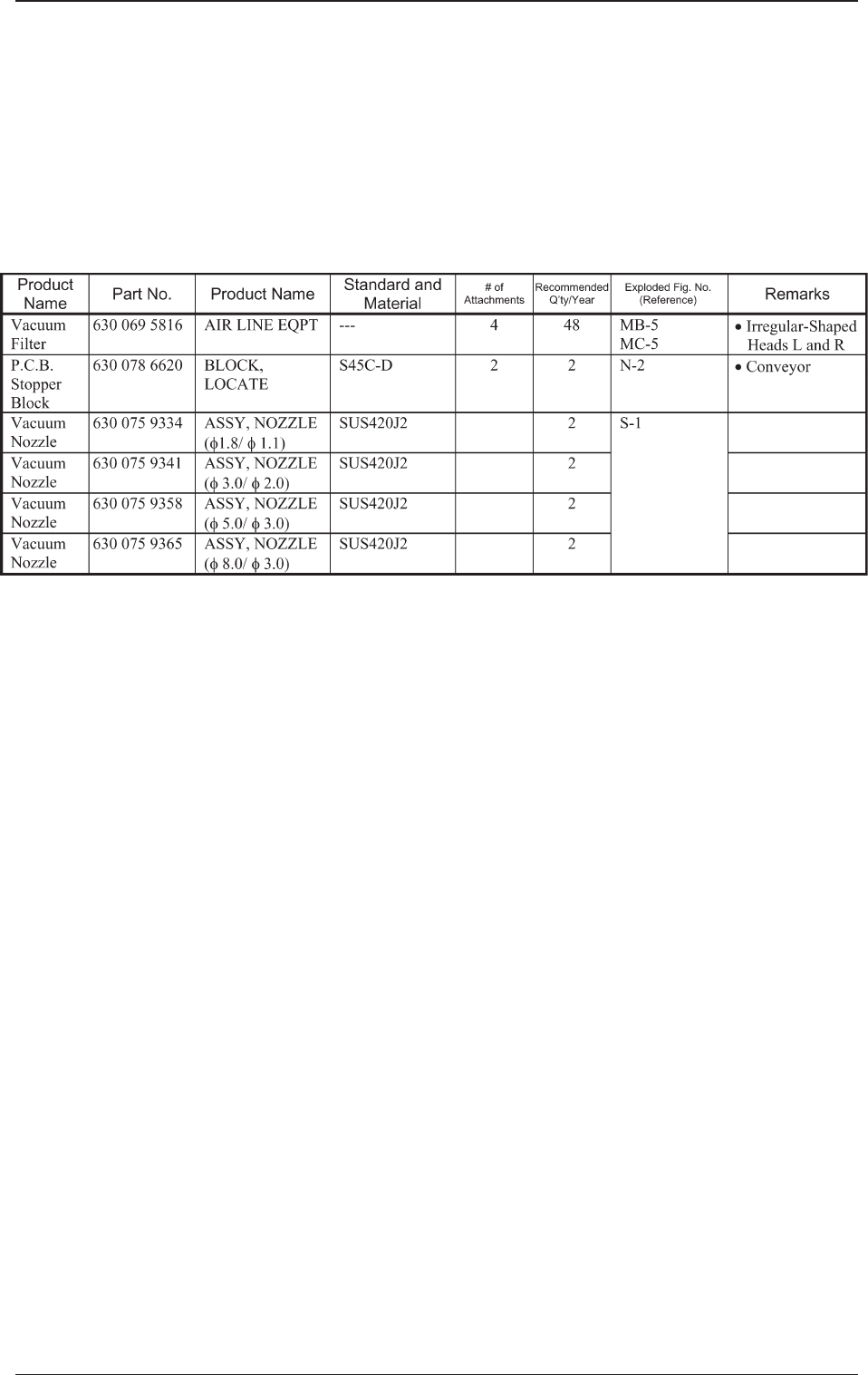

1.1 List of Consumables

Listed below are the parts that may be consumed within one year.

Consult our servicing personnel whenever you need to purchase these

parts.

Note : The numbers entitled “Recommended Q’ty/Year” indicates the num-

ber of parts expected to be required for one year.

1. List of Consumables and Important Servicing Parts

Mechanical Parts Table 4B1

Tg0860-PM-MM

1.2 List of Important Servicing Parts

Mechanical Parts Table 4B3

Electrical Parts Table 4B4

0307-002 2-2

1.2 List of Important Servicing Parts

Listed below are the parts that may be consumed in several years.

The list below is provided for your reference.

Note : Since replacement work of important servicing parts requires highly

sophisticated technique, consult our servicing personnel for details.

0305-001 Tg0860-PM-MM

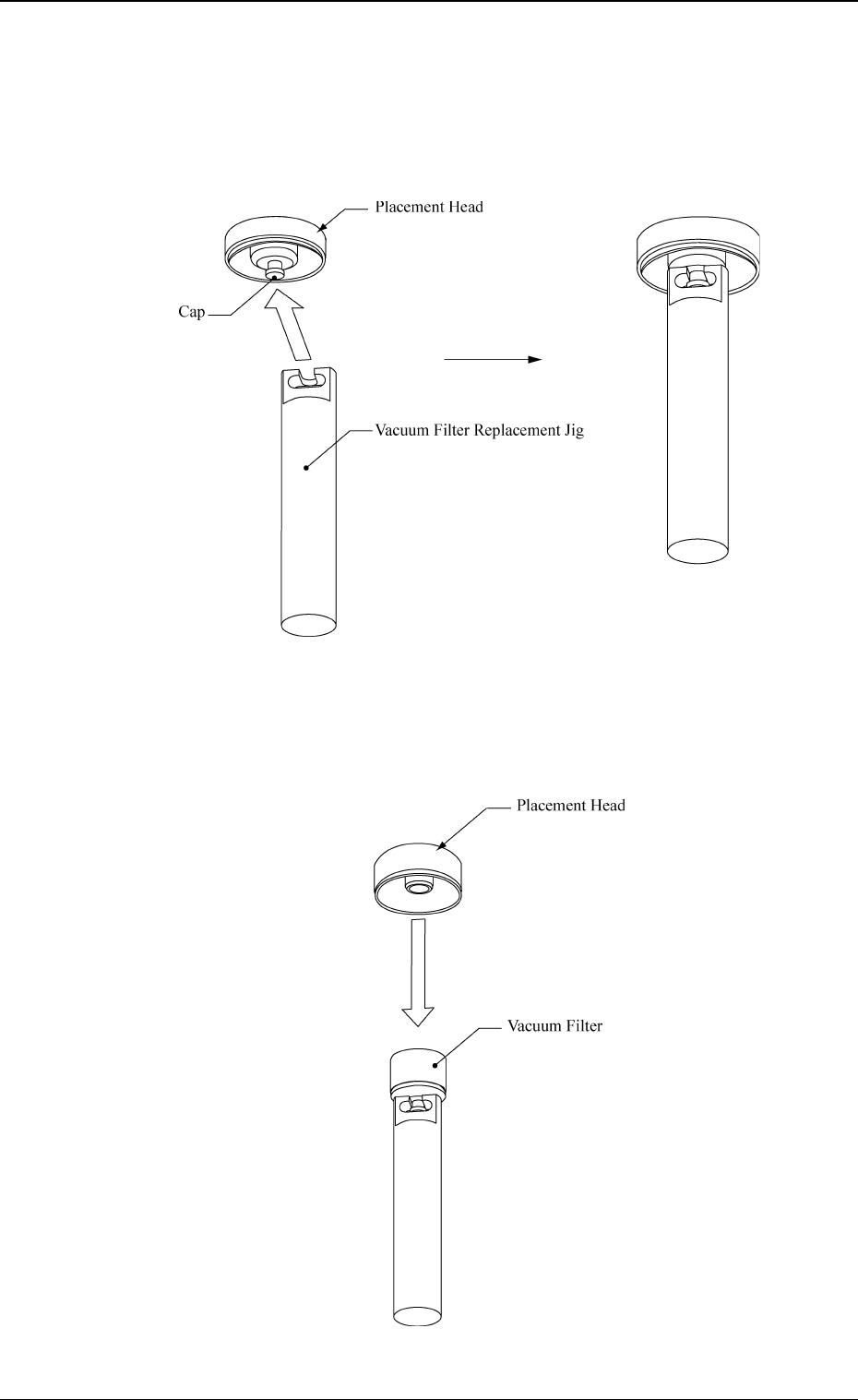

2. Replacement Procedure of Vacuum Filter

(1) Engage the vacuum filter replacement jig with the hook of the cap.

(2) Bring the vacuum filter replacement jig straight down and pull out the

cap from the placement head.

Note: The vacuum filter replacement jig should not come off from the

cap.

Fig. 4B2

2. Replacement Procedure of Vacuum Filter

2-3

Fig. 4B1

Fig. 4B3
