0305-001 Tg0860-PM-MM  [MANAGEMENT DA T A (TYPE 1)] and [MANAGEMENT DA T A (TYPE 2)] Keys Information data of the whole machine performance is collected and dis- played. A group of items related to machine maintenance a…

0305-001 Tg0860-PM-MM

3. MANAGEMENT DATA Display

Menus are provided to manage operation rate, production rate, running condi-

tion, etc., of the machine.

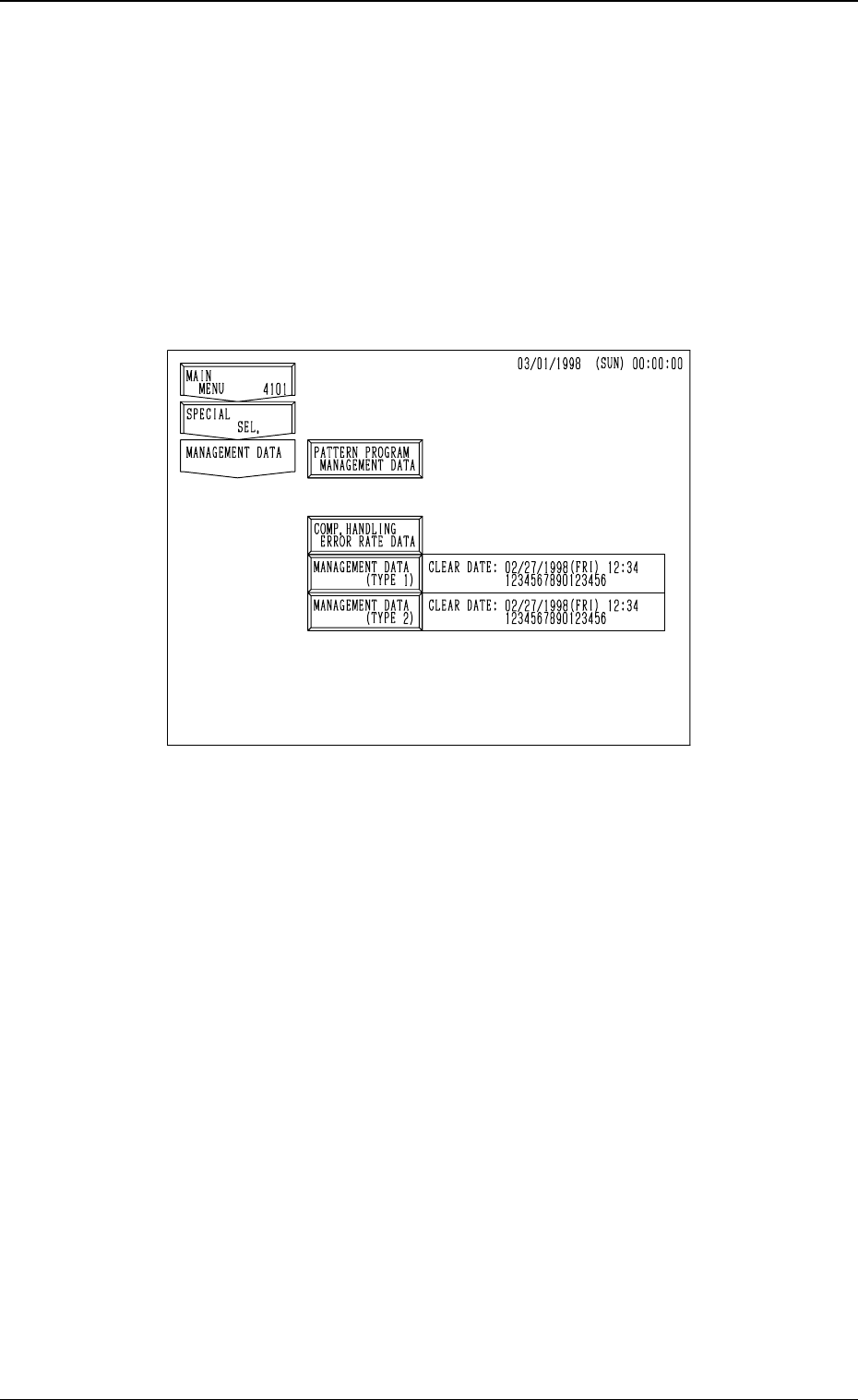

When the [MANAGEMENT DATA] key is pressed at the “SPECIAL SEL.”

display, the following display appears on the screen.

This display can also be opened from the “AUTO OPN. SUB-MENU”

display.

 [PATTERN PROGRAM MANAGEMENT DATA] Key

Management data is summed up for each pattern program data.

As this information is collected independently for each pattern program,

each bit of information and time data of a pattern program is summed up

only when the pattern program is active as the current program.

Thus, when a particular pattern program is used periodically during a span

of time, data is collected only during the times which that program is ac-

tive. This management data makes it possible to track each program's per-

formance and machine productivity individually.

This management data gives individual information of each pattern pro-

gram data enabling the management of the selected model production.

 [COMP. HANDLING ERROR RATE DATA] Key

This key is used to check pick-up rate calculated for each feeder or nozzle

and based on each pick-up rate specified in the auto operation set-up data.

3. MANAGEMENT DATA Display

3-5

Fig. 4C4

0305-001 Tg0860-PM-MM

 [MANAGEMENT DATA (TYPE 1)] and [MANAGEMENT DATA (TYPE

2)] Keys

Information data of the whole machine performance is collected and dis-

played.

A group of items related to machine maintenance are mainly summed up.

The number of finished P.C.B.’s is counted up not limited to the current

pattern program data but including all implemented pattern programs. That

is, the cumulative total of P.C.B.’s finished according to several pattern

programs can be regarded as the completed amount of P.C.B.’s.

There are two types (TYPE 1 and TYPE 2) of management data whose

only difference is the date and time which they are cleared (this is based on

individual needs for management data tracking. The possibility is using

one for weekly tracking and the other for monthly tracking).

Difference between Pattern Program Management Data and Man-

agement Data

Deletion of Information Data

Note: Head and nozzle management data can be deleted for each head and

nozzle. Clear date is also updated for each nozzle.

(All data is cleared at one time.)

3. MANAGEMENT DATA Display

Table 4C1

Item

Pattern Program

Management Data

Pattern Program

Production History

○ ×

Machine Performance Data

○

(P.C.B. Process Time)

○

(No P.C.B. Process Time)

Handling Errors per Feeder

Location

○ ○

Head Management Data

× ○

Nozzle Management Data

× ○

Sub-System Error Counts

× ○

Item

How to delete

What is deleted

Pattern Program

Management Data

Press the [CLEAR PATTERN

PRGM. MGT. DATA] key.

Pattern Program Production History

Machine Performance Data

Handling Error per Feeder Location

(Clear date is updated after deletion.)

Management Data

Press the [CLEAR

MANAGEMENT DATA

(TYPE 1) or (TYPE 2)] key.

Machine Performance Data

Handling Errors per Feeder Location

Head Management Data

Nozzle Management Data

Sub-System Error Counts

(Clear date is updated after deletion.)

Component Handling

Error Rate Data

(Various Data)

Change each set value at

the “AUTO OPERATION

SET-UP” display.

Individual Pick-Up Rate

(Saved or Current Data)

Table 4C2

3-6

0305-001 Tg0860-PM-MM

3.1 PATTERN PROGRAM MANAGEMENT DATA

Display

Current program management data of each pattern program data can be checked

at this display.

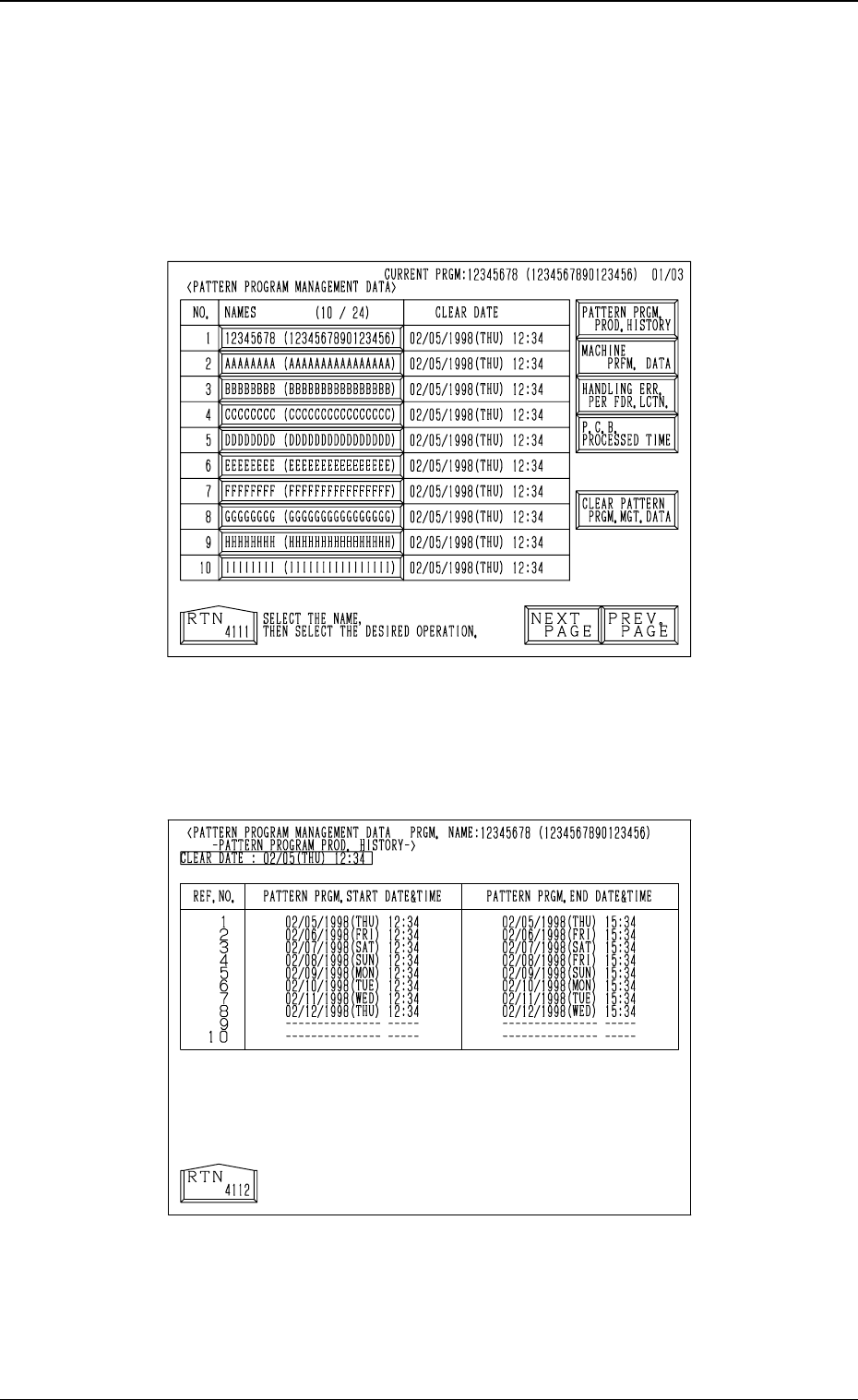

When the [PATTERN PROGRAM MANAGEMENT DATA] key is pressed at

the “MANAGEMENT DATA” display, the following display appears on the

screen.

(1) Pattern Program Production History

Select the pattern program to be checked by pressing the corresponding

“NAMES (XX/XX)” key. When the [PATTERN PRGM. PROD. HIS-

TORY] key is pressed afterwards, the following display appears on the

screen.

• A maximum of 10 pattern program production history data is displayed.

Each pattern program’s start date, including time, is stored in memory as

history data (a period of time when a pattern program is set as a current

one).

• When there are more than 10 history data, the oldest dates are deleted one

by one.

3.1 PATTERN PROGRAM MANAGEMENT DATA Display

3-7

Fig. 4C5

Fig. 4C6
