0305-001 Tg0860-PM-MM 3. 1 P A TTERN PROGRAM MANAGEMENT DA T A Display Current program management data of each pattern program data can be checked at this display . When the [P A TTERN PROGRAM MANAGEMENT DA T A] key is p…
0305-001 Tg0860-PM-MM
[MANAGEMENT DATA (TYPE 1)] and [MANAGEMENT DATA (TYPE
2)] Keys
Information data of the whole machine performance is collected and dis-
played.
A group of items related to machine maintenance are mainly summed up.
The number of finished P.C.B.’s is counted up not limited to the current
pattern program data but including all implemented pattern programs. That
is, the cumulative total of P.C.B.’s finished according to several pattern
programs can be regarded as the completed amount of P.C.B.’s.
There are two types (TYPE 1 and TYPE 2) of management data whose
only difference is the date and time which they are cleared (this is based on
individual needs for management data tracking. The possibility is using
one for weekly tracking and the other for monthly tracking).
Difference between Pattern Program Management Data and Man-
agement Data
Deletion of Information Data
Note: Head and nozzle management data can be deleted for each head and
nozzle. Clear date is also updated for each nozzle.
(All data is cleared at one time.)
3. MANAGEMENT DATA Display
Table 4C1
Item
Pattern Program
Management Data
Management Data
Pattern Program
Production History
○ ×
Machine Performance Data
○
(P.C.B. Process Time)
○
(No P.C.B. Process Time)
Handling Errors per Feeder
Location
○ ○
Head Management Data
× ○
Nozzle Management Data
× ○
Sub-System Error Counts
× ○
Item
How to delete
What is deleted
Pattern Program
Management Data
Press the [CLEAR PATTERN
PRGM. MGT. DATA] key.
Pattern Program Production History
Machine Performance Data
Handling Error per Feeder Location
(Clear date is updated after deletion.)
Management Data
Press the [CLEAR
MANAGEMENT DATA
(TYPE 1) or (TYPE 2)] key.
Machine Performance Data
Handling Errors per Feeder Location
Head Management Data
Nozzle Management Data
Sub-System Error Counts
(Clear date is updated after deletion.)
Component Handling
Error Rate Data
(Various Data)
Change each set value at
the “AUTO OPERATION
SET-UP” display.
Individual Pick-Up Rate
(Saved or Current Data)
Table 4C2
3-6
0305-001 Tg0860-PM-MM
3.1 PATTERN PROGRAM MANAGEMENT DATA
Display
Current program management data of each pattern program data can be checked
at this display.
When the [PATTERN PROGRAM MANAGEMENT DATA] key is pressed at
the “MANAGEMENT DATA” display, the following display appears on the
screen.
(1) Pattern Program Production History
Select the pattern program to be checked by pressing the corresponding
“NAMES (XX/XX)” key. When the [PATTERN PRGM. PROD. HIS-
TORY] key is pressed afterwards, the following display appears on the
screen.
• A maximum of 10 pattern program production history data is displayed.
Each pattern program’s start date, including time, is stored in memory as
history data (a period of time when a pattern program is set as a current
one).
• When there are more than 10 history data, the oldest dates are deleted one
by one.
3.1 PATTERN PROGRAM MANAGEMENT DATA Display
3-7
Fig. 4C5
Fig. 4C6
0305-001 Tg0860-PM-MM

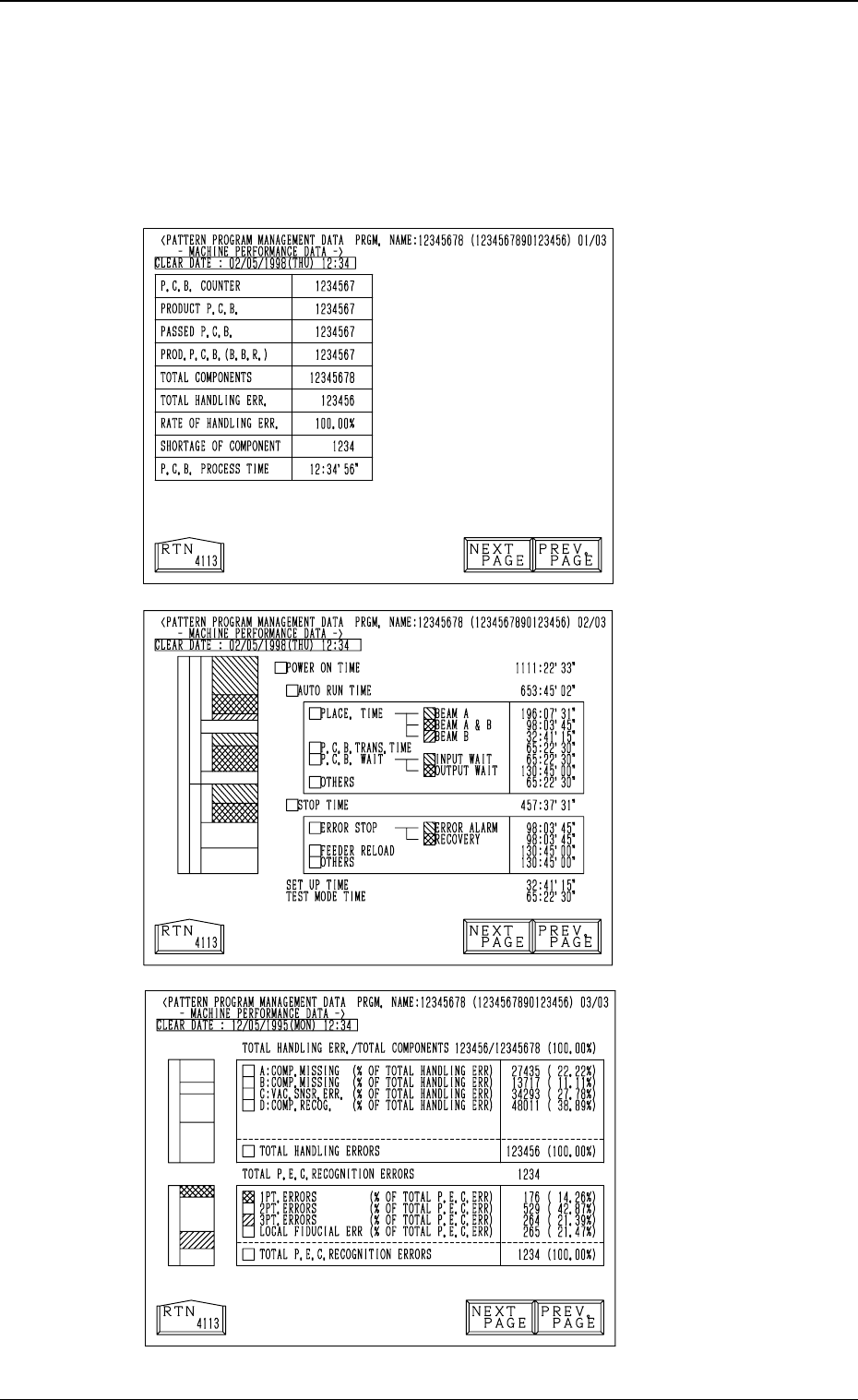

(2) Machine Performance Data
Select the pattern program to be checked by pressing the corresponding
“NAMES (XX/XX)” key. When the [MACHINE PRFM. DATA] key is
pressed, the following display appears on the screen.
Every time the [NEXT PAGE] or the [PREV. PAGE] key is pressed, an-
other or previous page appears on the screen.
Fig. 4C7
First Page
Second Page
Fig. 4C8
Fig. 4C9
Third Page
3-8
3.1 PATTERN PROGRAM MANAGEMENT DATA Display
