System Manual Oxford Instruments Plasma Technology All OIPT Systems 6.3 Changing the RF components This may be necessary to match a process beyond the normal operating range. WARNING HAZARDOUS RF VOLTAGE· CONTACT CAN CAU…

100%1 / 362
All
OIPT Systems
Oxford
Instruments
Plasma
Technology
System Manual

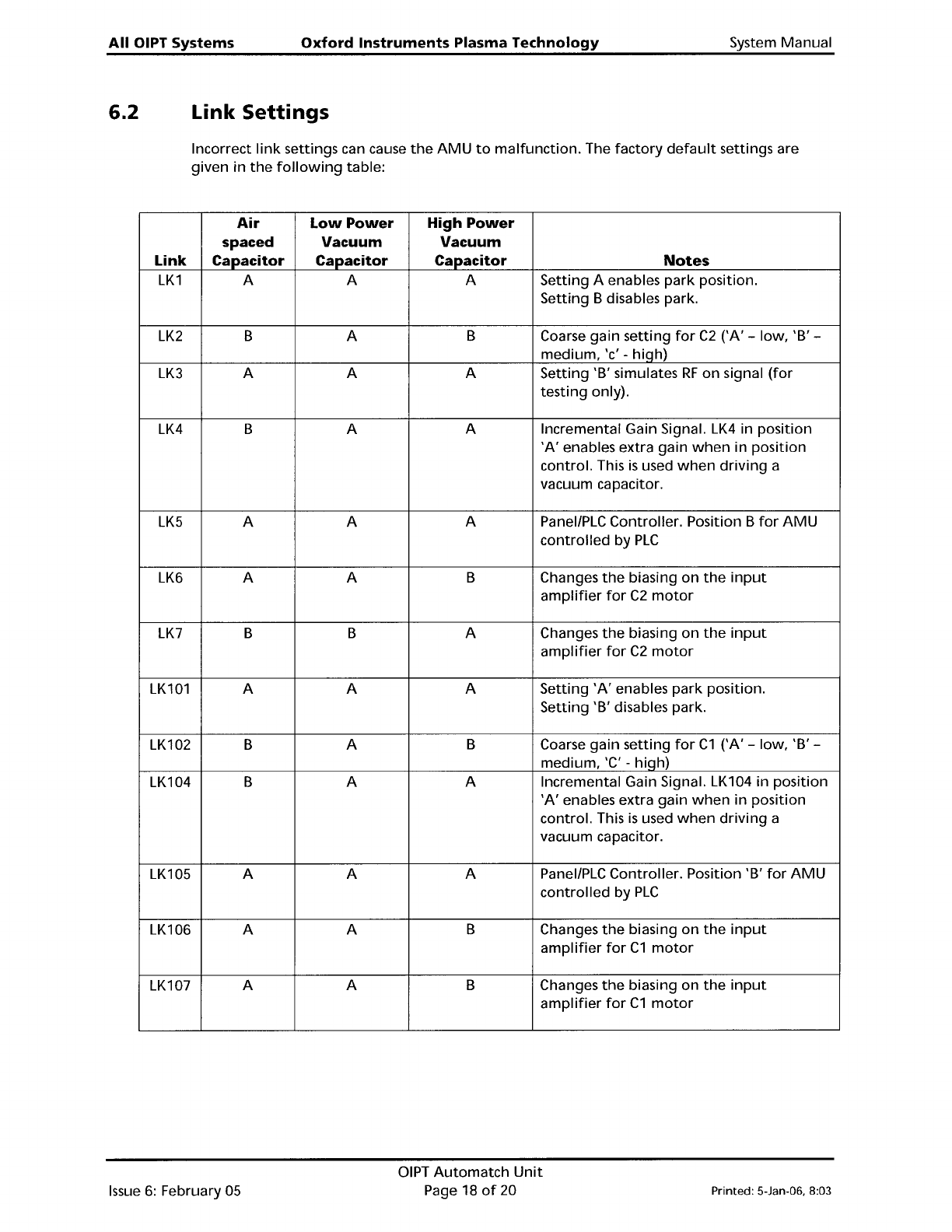

6.2 Link
Settings
Incorrect
link
settings can cause
the
AMU
to
malfunction.
The
factory
default
settings are
given
in
the
following
table:
Air
Low
Power
High
Power
spaced
Vacuum
Vacuum
Link
Capacitor Capacitor
Capacitor
Notes
LK1
A A A Setting A enables
park
position.
Setting B disables park.
LK2
B A B
Coarse gain setting
for
C2
CA' - low, 'B' -
medium, 'c'
- hiqh)
LK3
A A A Setting 'B' simulates
RF
on
signal
(for
testing
only).
LK4
B A A
Incremental Gain Signal.
LK4
in position
'A'
enables extra gain
when
in position
control. This
is
used
when
driving
a
vacuum capacitor.
LK5
A A
A PanellPLC Controller. Position B
for
AMU
controlled
by
PLC
LK6
A
A B Changes
the
biasing
on
the
input
amplifier
for
C2
motor
LK7
B B A
Changes
the
biasing
on
the
input
amplifier
for
C2
motor
LK101
A A A
Setting
'A'
enables
park
position.
Setting 'B' disables park.
LK102 B A
B Coarse gain setting
for
C1
CA' - low, 'B' -
medium, 'C' - hiqh)
LK104 B
A A
Incremental Gain Signal. LK104 in position
'A'
enables extra gain
when
in
position
control. This
is
used
when
driving
a
vacuum capacitor.
LK105 A A A
PanellPLC Controller. Position 'B'
for
AMU
controlled
by
PLC
LK106 A A B
Changes
the
biasing
on
the
input
amplifier
for
C1
motor
LK107
A A B
Changes
the
biasing on
the
input
amplifier
for
C1
motor
Issue
6:
February 05
DIPT
Automatch
Unit
Page 18
of
20
Printed: 5-Jan-06, 8:03
System
Manual
Oxford
Instruments
Plasma
Technology
All OIPT Systems
6.3
Changing
the
RF
components
This may
be
necessary
to
match a process beyond
the
normal
operating
range.
WARNING
HAZARDOUS
RF
VOLTAGE·
CONTACT CAN CAUSE DEATH,
SEVERE
INJURY
OR BURNS
Any
work
requiring
the
removal
of
covers
or
panels
must
only
be
performed
by
authorised
personnel
who
are
aware
of
the
hazards
involved.
Turn
off
the
RF
generator
completely
before
removing
the
smaller L-section cover. This
reveals
the
ends
of
the
two
variable capacitors and
mounting
positions
for
extra fixed
capacitors.
CAUTION
Components
fitted
must
be
suitable
for
RF
power
service.
Low
power
circuit
devices
will
overheat
uickl .
Suitable components are given
in
the
following
table:
OIPT
Part
Number
Capacitance
Rating
94-ECC1209
90pf
1kV
94-ECC1218
180pF 2kV
Change components according
to
the
following
table:
C1
going
maximum
Add
fixed
capacitance in parallel
with
C1
See
following
NOTE.
C1
going
minimum
Remove
fixed
capacitance
in
parallel
with
C1
Minimum
is
zero
C2
going
maximum
1.
Add
fixed
capacitance in parallel
with
C2
See
following
NOTE.
2.
Increase coil inductance
C2
going
minimum
1.
Remove
fixed
capacitance in parallel
Minimum
is
zero fixed capacitance
with
C2
2.
Decrease coil inductance
NOTE: Variable capacitors
C1
and
C2
have a
maximum
capacitance
of
1000pF and 500pF respectively.
For each
of
these variable capacitors
there
are
three
positions
for
fitting
parallel
'padding'
capacitors. Therefore, a
maximum
of
3 x 180pF
padding
capacitors could be
fitted
but
usually
there
is
no
need
to
fit
more
than
one
paddinq
capacitor (i.e. 180pF).
Printed: 5-Jan-06, 8:03
DIPT
Automatch
Unit
Page 19
of
20
Issue
6:
February
05
All
OIPT Systems
Oxford
Instruments
Plasma
Technology
System
Manual
6.4
Adjustment
of
capacitor
park
positions
The capacitors drive
automatically
to
the
park
positions if:
the
AMU
is
set
to
Auto
the
RF
is
off
the
circuit
board
links enable
parking
The
park
positions can be adjusted
when
all
of
these conditions are satisfied, by
altering
the
corresponding
potentiometer
with
a small
flat-bladed
screwdriver. The capacitor
will
move
when
the
potentiometer
is
adjusted, and
the
park
position
is
displayed
as
the
capacitor
position.
