Installation of Trace Service and Monitor 4.3.1 Installation of Trace Monitor Traceability Option for SIPLACE Explorer Installation Manual SIPLACE Traceability 3.6 25 ► Read the license conditions. Click on I accept . ..…

Installation of Trace Service and Monitor

Traceability Option for SIPLACE Explorer 4.3.1 Installation of Trace Monitor

24 Installation Manual SIPLACE Traceability 3.6

4.4

4.4 Traceability Option for SIPLACE Explorer

Traceability Option for SIPLACE Explorer

NOTICE

Requirement

You need administrator privilege for your operation system in order to perform this installation.

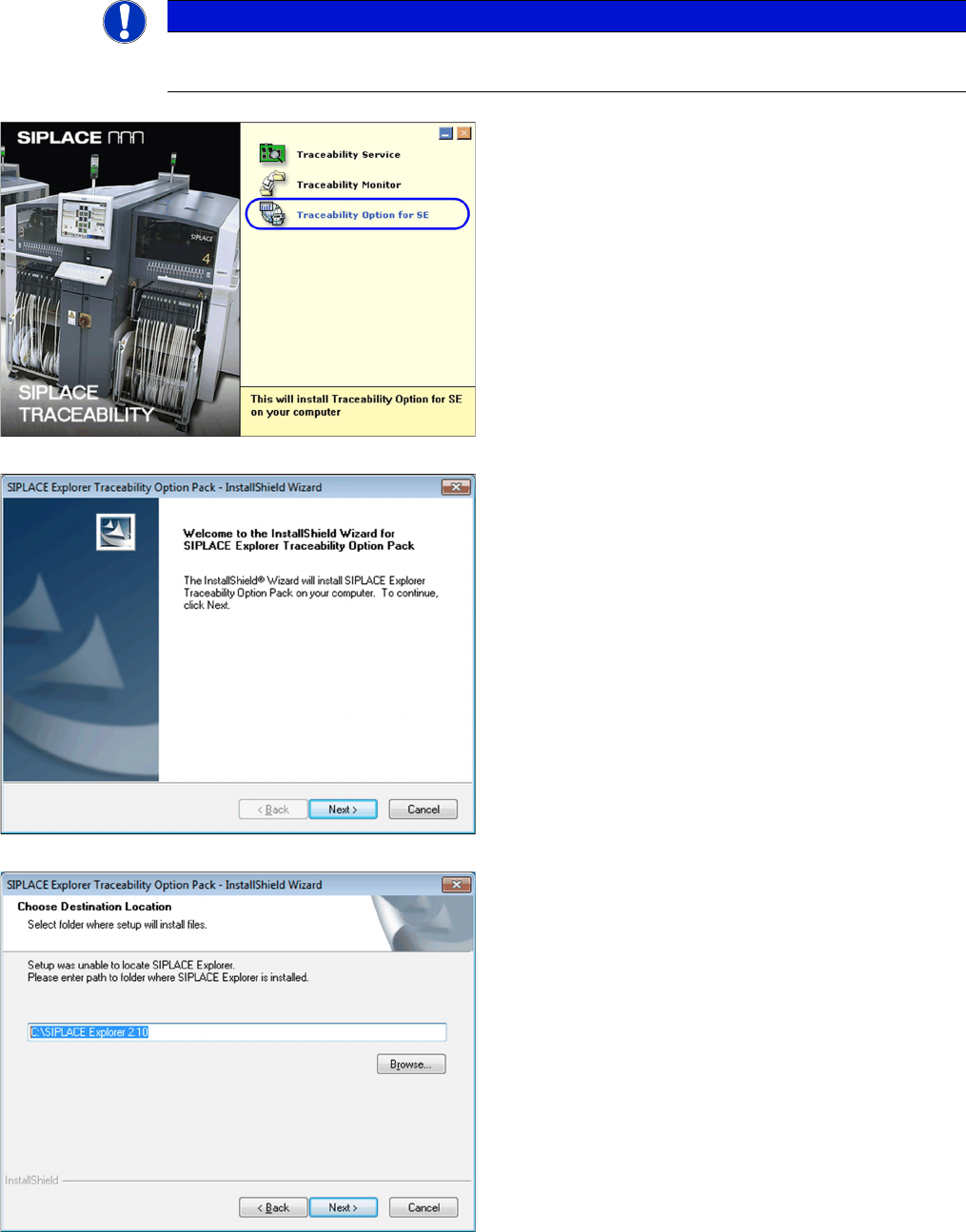

► Insert the SIPLACE Traceability CD into your CD-

ROM drive. You will see the Start screen:

► Select Traceability Option for SE.

► You will now be guided through the installation proce-

dure for the SIPLACE Explorer Traceability option.

► Close all other programs and then click on Next to

continue.

► Before the SIPLACE Explorer Traceability Option can

be installed, Trace Monitor and SIPLACE Explorer

must be installed on your network environment. If

both of these applications are already installed, in-

stallation of the SIPLACE Explorer Traceability Op-

tion will begin automatically. The SIPLACE Explorer

Traceability Option must be installed on the same

computer as SIPLACE Explorer; Trace Monitor can

be installed on a different computer.

► If the SIPLACE Explorer Traceability Option installa-

tion procedure is unable to locate SIPLACE Explorer

on your computer, you will see the following dialog

box.

► Specify the SIPLACE Explorer installation folder

here. If SIPLACE Explorer has not yet been installed

on your computer, you can click on Cancel to termi-

nate the SIPLACE Explorer Traceability Option in-

stallation procedure.

► Install Trace Monitor and SIPLACE Explorer on your

network environment and then restart the SIPLACE

Traceability installation procedure.

► If Trace Monitor and SIPLACE Explorer are already

installed on your system, the installation procedure

will continue.

Installation of Trace Service and Monitor

4.3.1 Installation of Trace Monitor Traceability Option for SIPLACE Explorer

Installation Manual SIPLACE Traceability 3.6 25

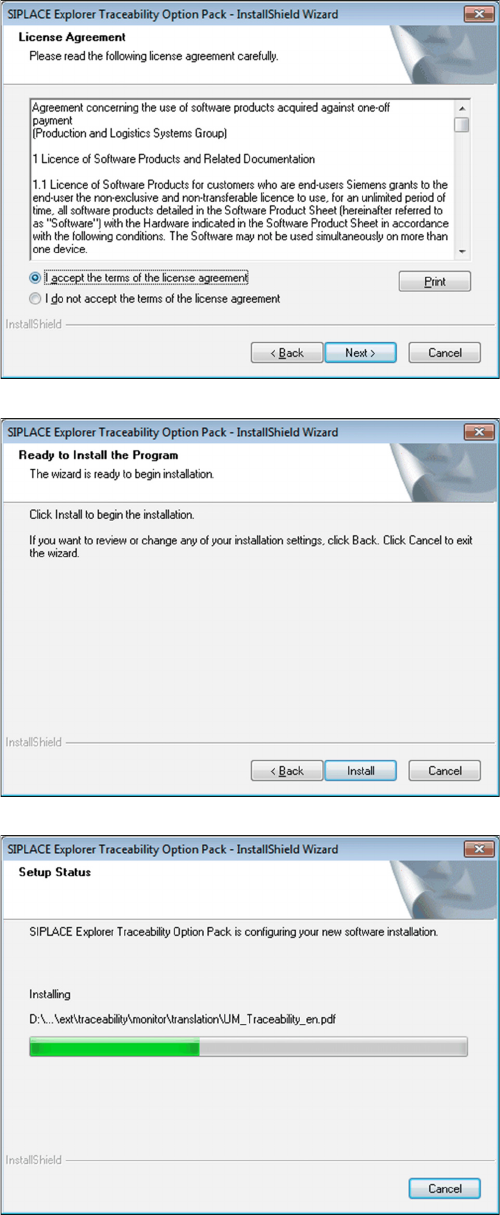

► Read the license conditions. Click on I accept ... to

accept and on I do not accept ... if you do not want to

accept. If you click on I do not accept ..., the installa-

tion procedure will be terminated.

⇨ The following dialog box will be shown:

► Click on the Install button to start the actual installa-

tion of the SIPLACE Explorer Traceability Option.

Once the installation procedure has started, the following

dialog box will open:

Installation of Trace Service and Monitor

Traceability Option for SIPLACE Explorer 4.3.1 Installation of Trace Monitor

26 Installation Manual SIPLACE Traceability 3.6

► Click on Finish. The SIPLACE Explorer Traceability

Option is now available on the SIPLACE Explorer fac-

tory website.
