4022 591 960 62 Operating Manual 02.0 2 FCM Mu ltif lex 13 General Mach ine Informatio n 4. If the feeder is placed cor rectly into th e f eeder trolle y , the green LED blinks approximately 3 seconds where after it will…
4022 591 96062 Operating Manual
02.02 FCM Multiflex 12
General Machine Information
3. Push both buttons until the trolley is fully lifted.

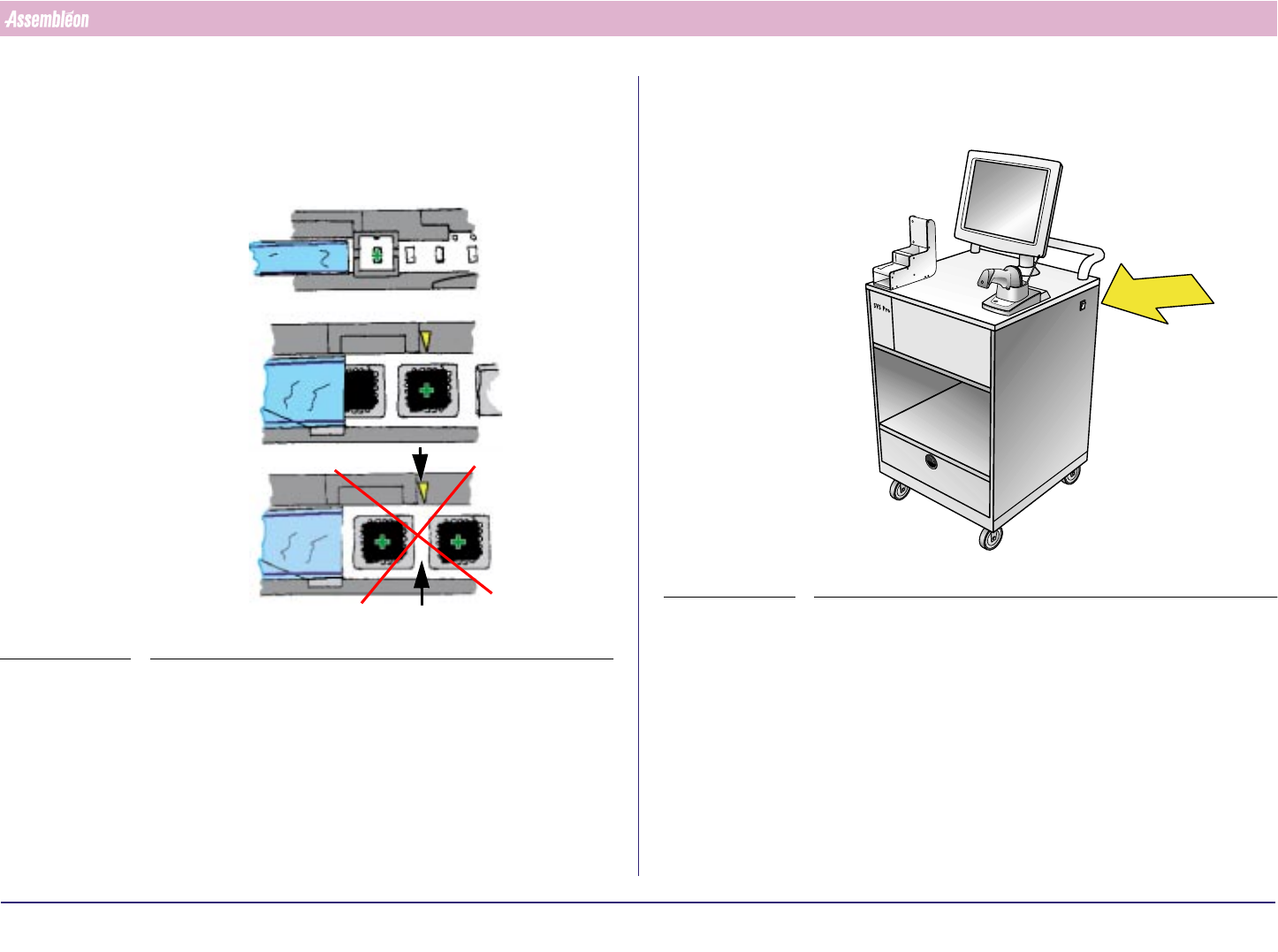

FIGURE 13
4.
FIGURE 14
2.7.3 Feeder Handling
2.7.3.1 Feeder Exchange
1. Check if the bottom and supporting surfaces of the feeder interface of
the machine are clean and free from components and mechanical
damage.
2. Take the feeder by handle and top guide. Let the pre-guide strip (4) fall
into the slit of the feeder bar.

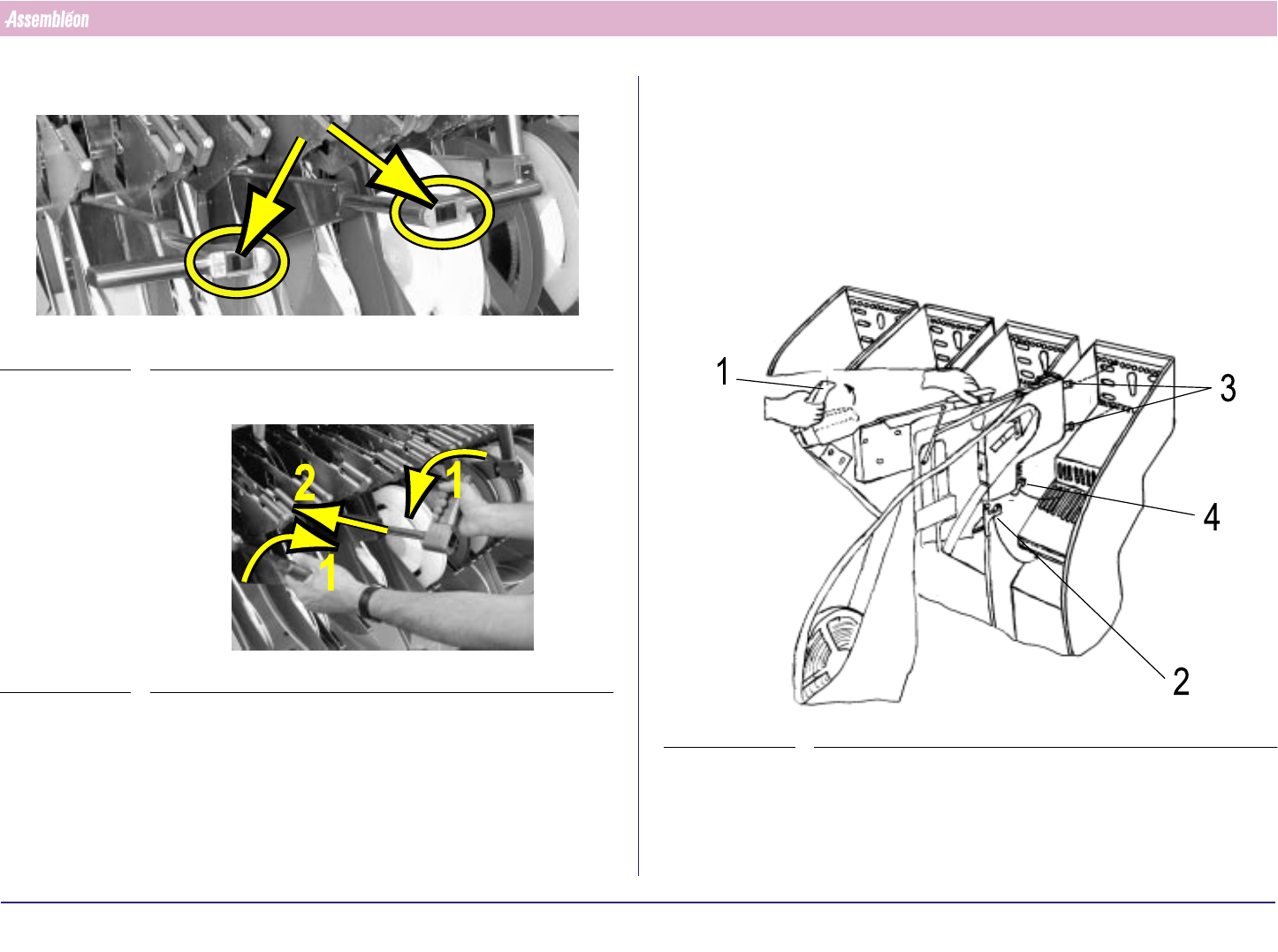

FIGURE 15
3. Release handle (1) and slide the two positioning-pins into the holes as
far as the clamping lever (2) locks onto the locking axis of the trolley.
Make sure that the feeder runs straight and parallel with the slit of the
feeder bar during insertion.
4022 591 96062 Operating Manual
02.02 FCM Multiflex 13
General Machine Information
4. If the feeder is placed correctly into the feeder trolley, the green LED
blinks approximately 3 seconds where after it will remain ON contin-
uously.
5. Check and make sure that the first component is on the pick-up
position.
FIGURE 16
2.7.3.2 Feeder and Feeder Trolley Loading with SVS Pro
1. Switch on loading unit.
FIGURE 17
4022 591 96062 Operating Manual
02.02 FCM Multiflex 14
General Machine Information
2. Wait until the main screen appears

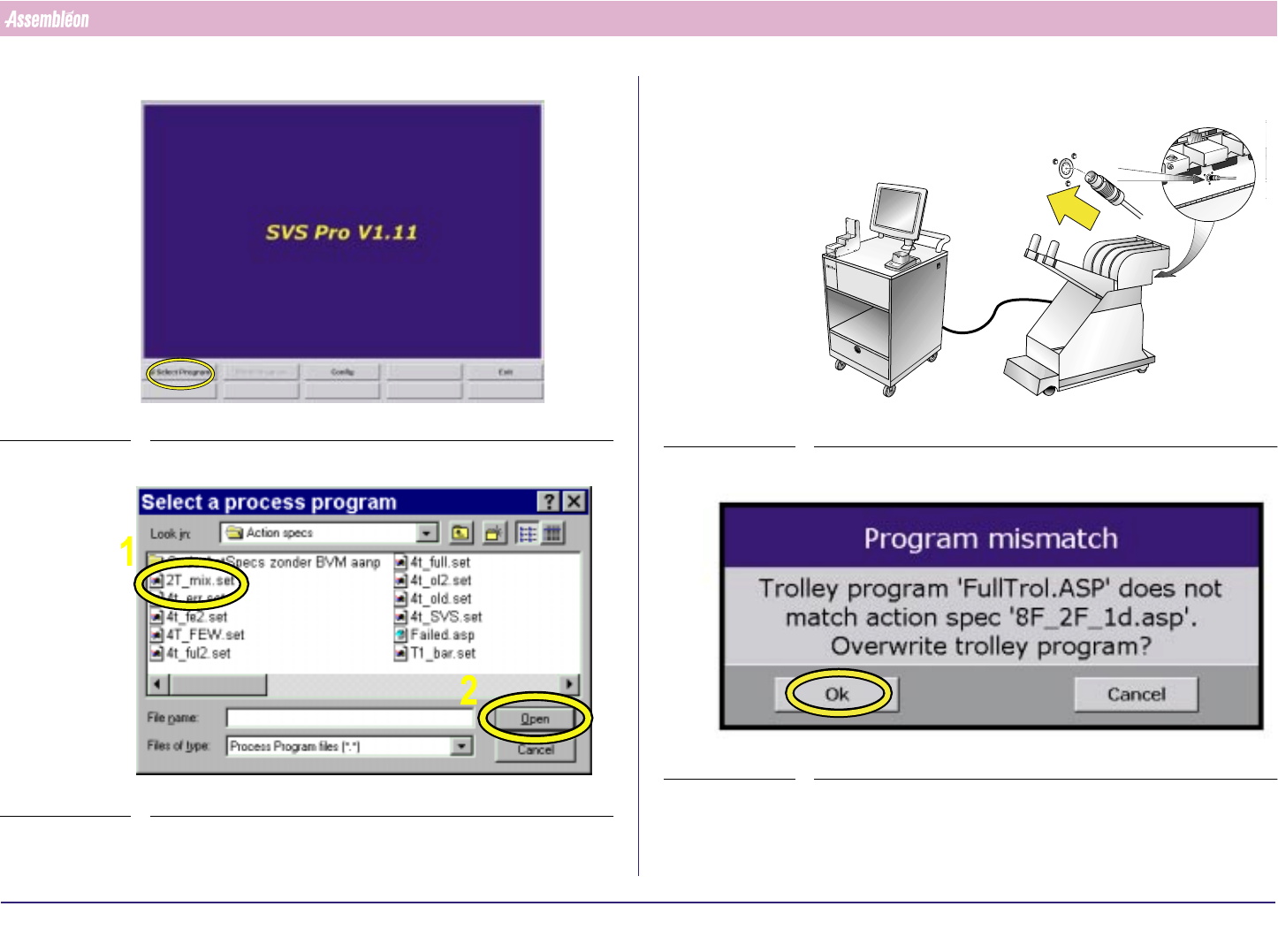

SCREEN 2
3.
SCREEN 3
4. Connect feeder trolley to loading unit.
FIGURE 18
5.
SCREEN 4
