4022 591 960 62 Operating Manual 02.0 2 FCM Mu ltif lex 23 Wo r k - F l o w O v e r v i e w CHAPTER 3 W ork-Flo w Ov ervie w FIGURE 36 Switch-On Procedure Running Production Error Handling Start Production Procedure Off …
4022 591 96062 Operating Manual
02.02 FCM Multiflex 22
General Machine Information

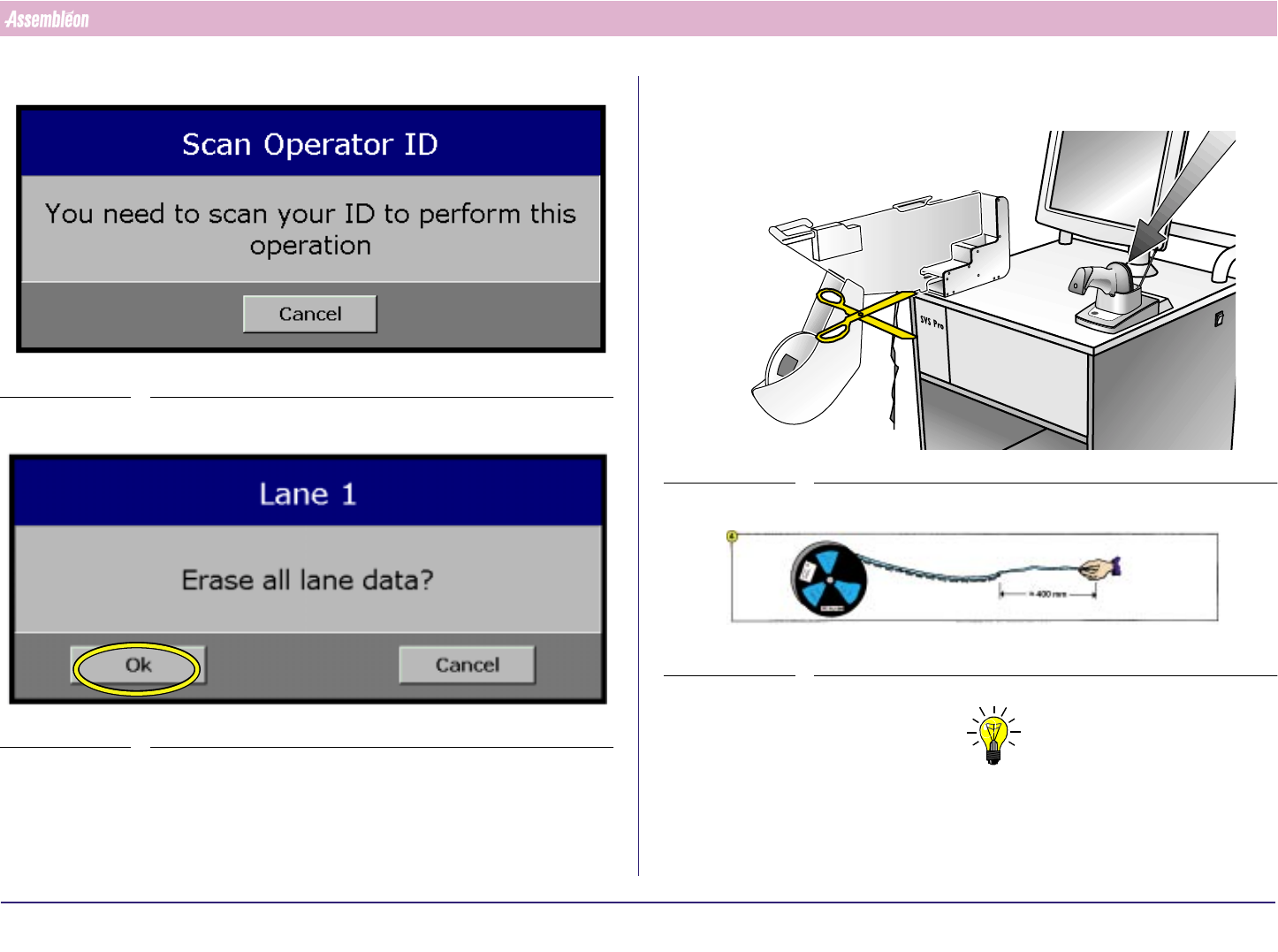

3. If configured: scan operator ID.
SCREEN 17
4.
SCREEN 18
5. Continue with 2.7.3.5.
2.7.3.5 Feeder Unloading with Conventional Loading Unit
1. General: feeder unloading is done in the reverse order of feeder loading.
FIGURE 34
FIGURE 35
NOTE
Losing large components costs much money. To save as much
components as possible, leave at least 400 mm empty tape.
4022 591 96062 Operating Manual
02.02 FCM Multiflex 23
Work-Flow Overview
CHAPTER 3 Work-Flow Overview
FIGURE 36
Switch-On
Procedure
Running
Production
Error
Handling
Start
Production
Procedure
Off Line
Preparation
New
Program
Selection
Current
Program
Selection
Pre-Start
Inspections
Same
Production?
Error?
Shut-Down
Procedure
Yes
Yes
No
Yes
No
No
Chapter 4
Chapter 5
Chapter 7
Chapter 8
Chapter 9
Chapter 10
Chapter 11
Chapter 12
Chapter 6
Chapter 13
Stop
Production?
Stop
Production
Shut down?
Yes
No
4022 591 96062 Operating Manual
02.02 FCM Multiflex 24
Switch-On Procedure
CHAPTER 4 Switch-On Procedure
In case of an error, call for assistance.
1. Turn main switch
FIGURE 37
2.
FIGURE 38
If indicator does not burn, turn main switch back and call for assistance.
Check
3.
FIGURE 39
4. Set vacuum and air pressures.
1
5.8 bar
5.6 bar
2.7 bar
2.5 bar
-0.82 bar
-0.74 bar
5.7 bar
2.6 bar
-0.77 bar
