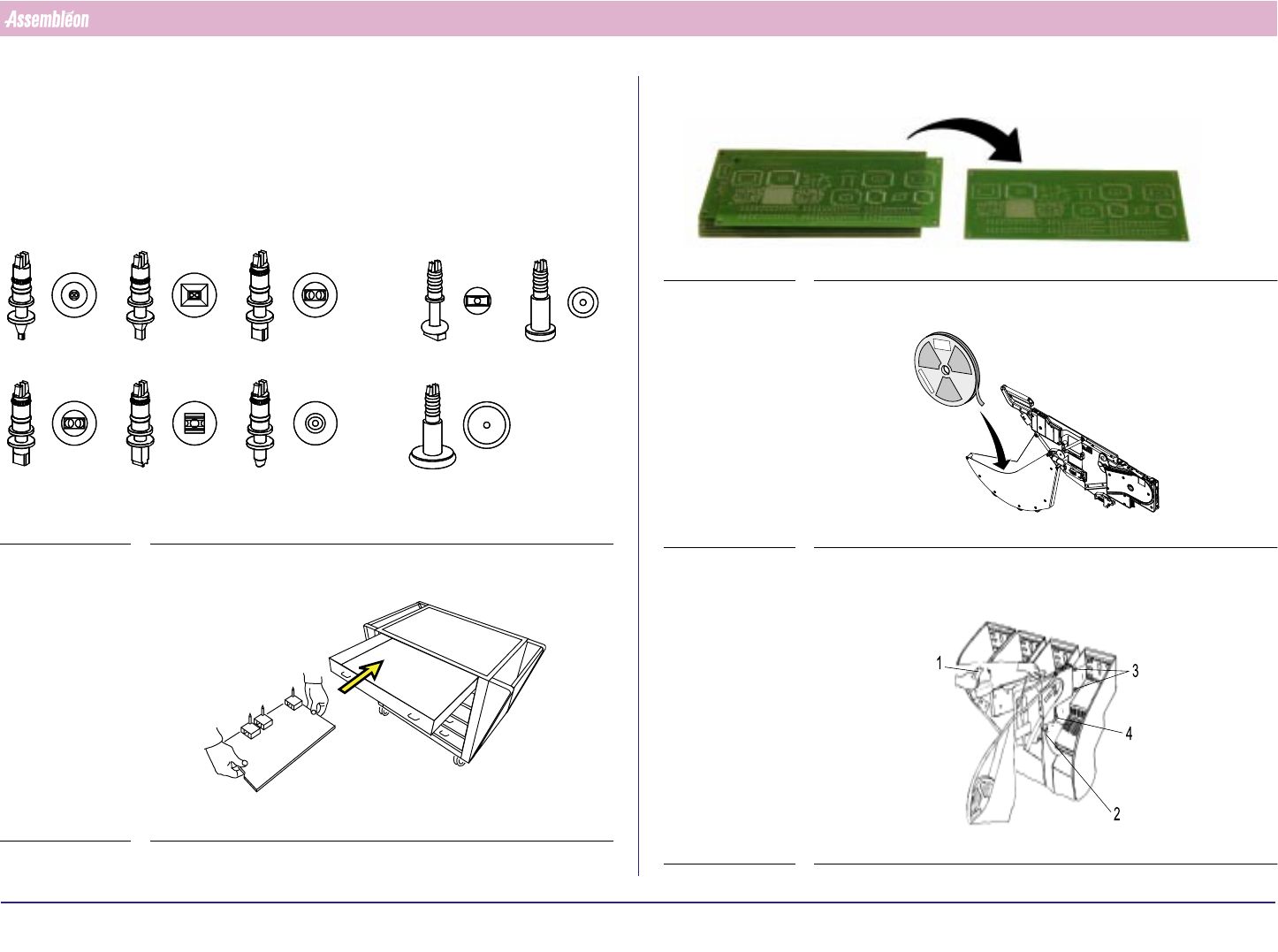

4022 591 960 62 Operating Manual 02.0 2 FCM Mu ltif lex 35 7. Pr epar e cali bra tion boar ds. FIGURE 61 Off-li ne calibration preparation
4022 591 96062 Operating Manual
02.02 FCM Multiflex 34
Off Line Preparation
CHAPTER 7 Off Line Preparation
In case of an error, call for assistance
1. Print the set-up list of the new product (out of the PPS system) and
according to the set-up list:
2. Prepare the nozzle set.
FIGURE 56
3. Prepare the Multiflex board support.
FIGURE 57
PA 2747/00 PA 2747/20 PA 2747/30
PA 2747/40 PA 2747/50 PA 2747/60
PA 2748/10 PA 2748/20
PA 2748/30
4. Take a production board (next product) for width adjustment &
calibration purposes.
FIGURE 58
5. Load the feeders. (See Chapter 2.7.3: Feeder Handling).
FIGURE 59
6. Place the feeders in the feeder trolley (see Chapter 2.7.3.1: Feeder
Exchange).
FIGURE 60
4022 591 96062 Operating Manual
02.02 FCM Multiflex 35
7. Prepare calibration boards.
FIGURE 61 Off-line calibration preparation
4022 591 96062 Operating Manual
02.02 FCM Multiflex 36
Off Line Preparation
REMARK
1.
REMARK
2.
