4022 591 960 62 Operating Manual 02.0 2 FCM Mu ltif lex 37 CHAPTER 8 Ne w Progr am Selection 8.1 Productio n-Flo w f or “On Line” A ctivities FIGURE 62 Order Entry Order Scheduling Calibration required ? Ye s Calibrate p…
4022 591 96062 Operating Manual
02.02 FCM Multiflex 36
Off Line Preparation
REMARK
1.
REMARK
2.
4022 591 96062 Operating Manual
02.02 FCM Multiflex 37
CHAPTER 8 New Program Selection
8.1 Production-Flow for “On Line” Activities
FIGURE 62
Order Entry
Order Scheduling
Calibration
required ?
Ye s
Calibrate
product ?
Ye s
Exchange carrier
Adjust Width &
Height
No
Link new product
action spec with
exsisting calibrion
file
Exchange carrier
Adjust Width &
Height
On line activities
No
Use default
Strip & Ref
positions
Ye s
Set correct
strip&referencepin
positions.
No
Described in User Reference Manual
Optional action
Advanced Order
Scheduling
Optional action & described in User
Reference Manual
Adjust Stoppers
Runin & Runout
Exchange
calibration nozzles
Start Calibration
Adjust Stoppers
Runin & Runout
Exchange Nozzles
Start-up
Production
Exchange feeders
& Trolleys
Exchange feeders
& Trolleys
Exchange Nozzles
Te ac h
Fiducials
Badmarks
4022 591 96062 Operating Manual
02.02 FCM Multiflex 38
New Program Selection

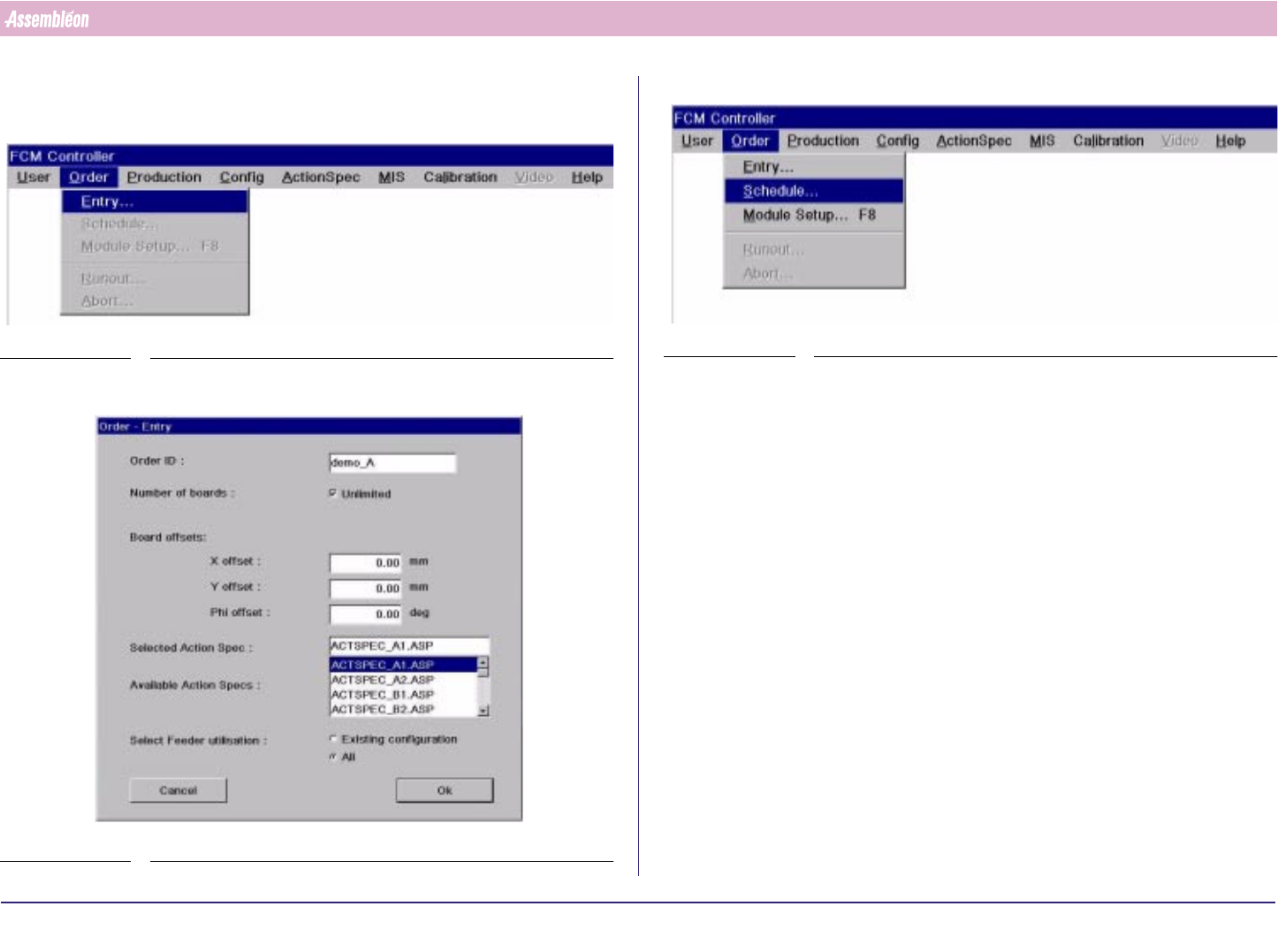

8.1.1 Order Entry & Scheduling
1. Select “Order” - “Entry”
SCREEN 20
2. Type “Order ID”, select “Action spec” and select “OK”.
SCREEN 21
3. Select “Order” - “Schedule”
SCREEN 22
