4022 591 96062 Operating Manual
02.02 FCM Multiflex 47
New Program Selection
8.4 Stopper and Sensor Adjustment
8.4.1 Run-In Section

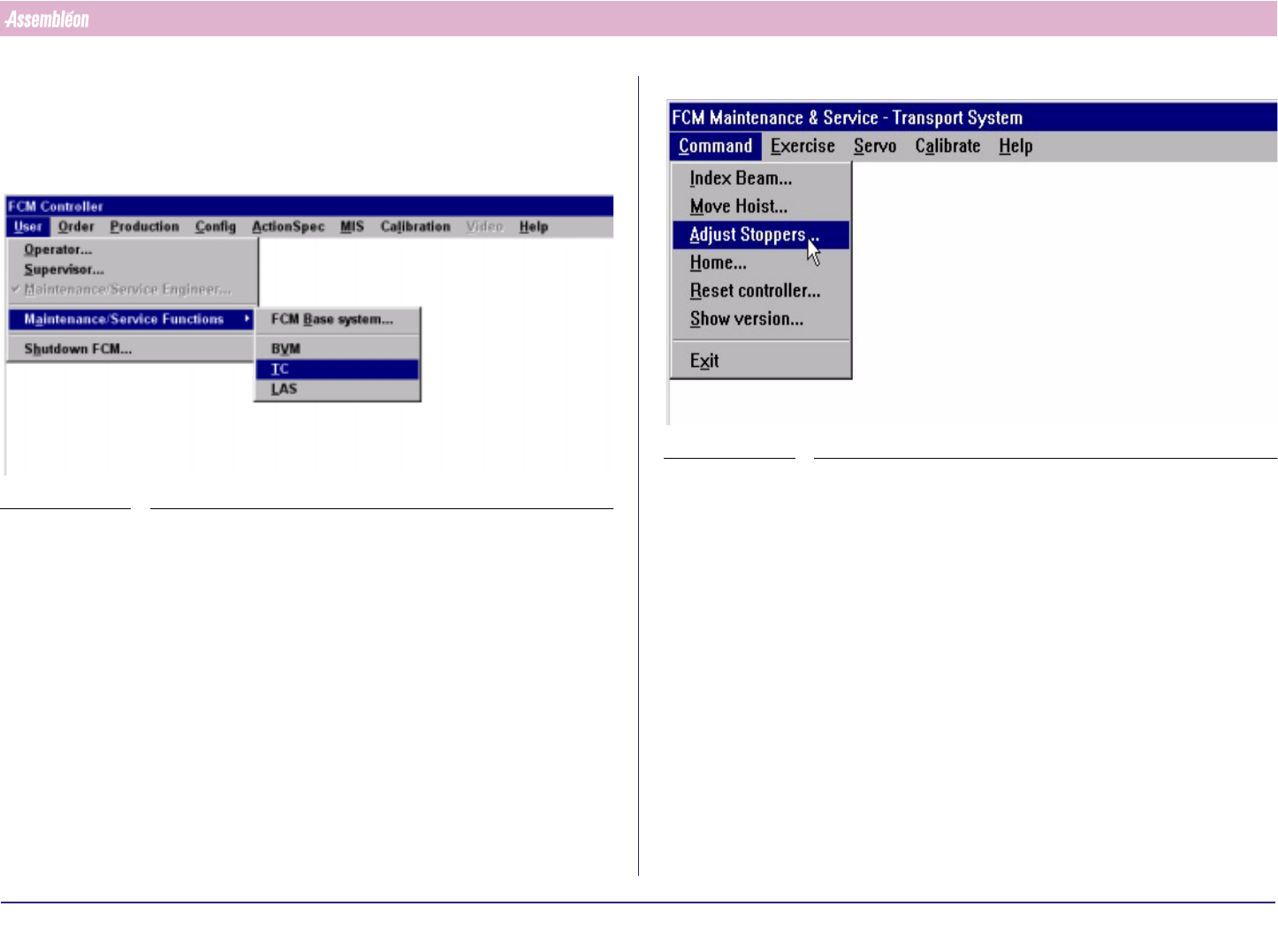

1. Select “User” - “Maintenance/Service function”-“TC”
SCREEN 27
2. Select “Command” - “Adjust stopper”
SCREEN 28
4022 591 96062 Operating Manual
02.02 FCM Multiflex 48
New Program Selection
3. Select Run-in F8, transport in up position (attention: transport starts
moving)
SCREEN 29
4. Open the Run-in cover.
FIGURE 81
5. Push the transport guides strips outwards
FIGURE 82
4022 591 96062 Operating Manual
02.02 FCM Multiflex 49
New Program Selection
6. Place board on the first position of the first carrier
FIGURE 83
7. Push the transport guide strips back
FIGURE 84
CLICK!
8. When fixed stoppers are available on the carrier, shift the front stopper
to the most right position and remove both front and rear stopper arms
and proceed with step 10. or else with 9.
9. Adjust the stopper. Distance between the front side of the board and the
stopper must be 0.2 +/- 0.1 mm. Test the stopper by moving the arm up
an down
FIGURE 85
10.Adjust the low speed sensor
FIGURE 86
0.2
+0.1
-0
mm
First PCB on first
“carrier” position
at pick-up position
PCB stop/pick-up
position
80mm
Low Speed
sensor
